AR40.20-D-0322-02A Check Camber, Assign Tabular Value

AR40.20-D-0322-02A Check Camber, Assign Tabular Value
- except CODE (ZG1) Engageable all-wheel drive
- except CODE (ZG2) Permanent all-wheel drive
- except CODE (ZG3) Engageable all-wheel drive with gear reduction
- except CODE (ZG4) Permanent all-wheel drive with gear reduction

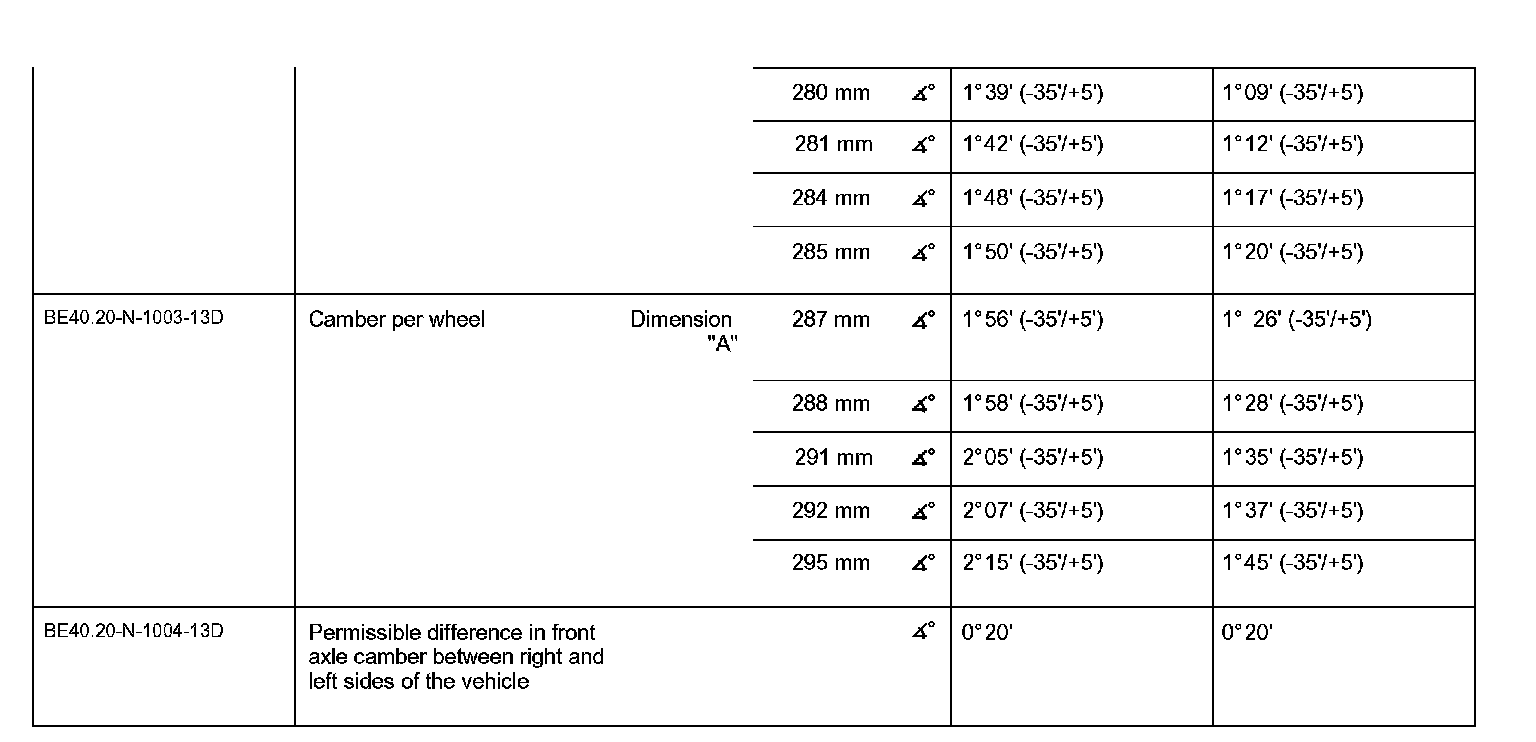

1 Measure front axle level and refer to table for camber.

Example:
Front axle level "A"
269 mm

Camber value per wheel
= 1° 14' (-35'/+5')
