Home >> Mercedes Benz Truck >> 2011 >> Sprinter 3500 Cab (906.155) V6-3.0L DSL Turbo (642.898) >> Repair and Diagnosis >> Starting and Charging >> Power and Ground Distribution >> Fuse >> Locations >> Fuse 5 (7.5/10 A) Motors Circuit 87 (5)

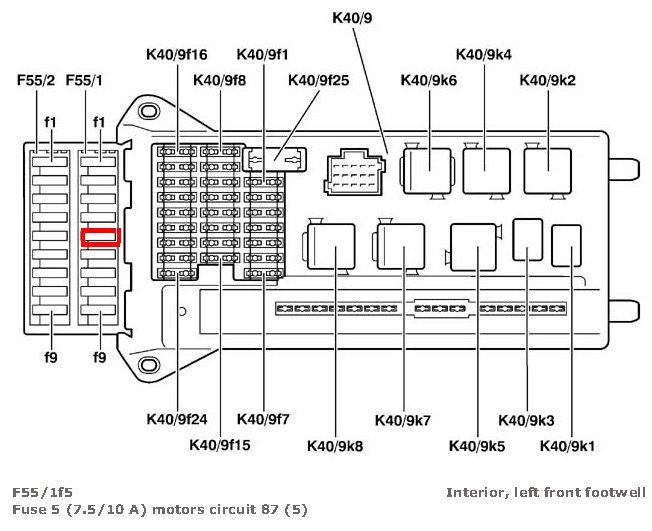

Fuse 5 (7.5/10 A) Motors Circuit 87 (5)



Fuse 5 (7.5/10 A) Motors Circuit 87 (5)
