Alternator: Service and Repair

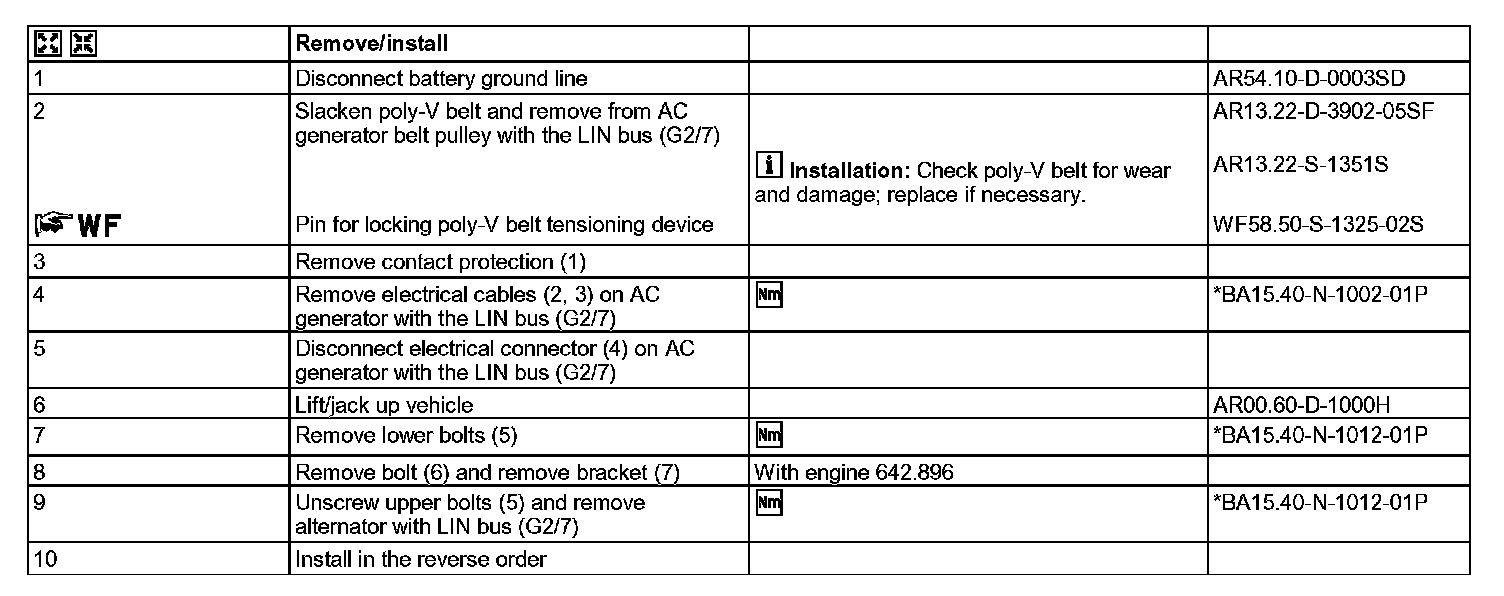

AR15.40-D-5032SF Remove/Install Alternator

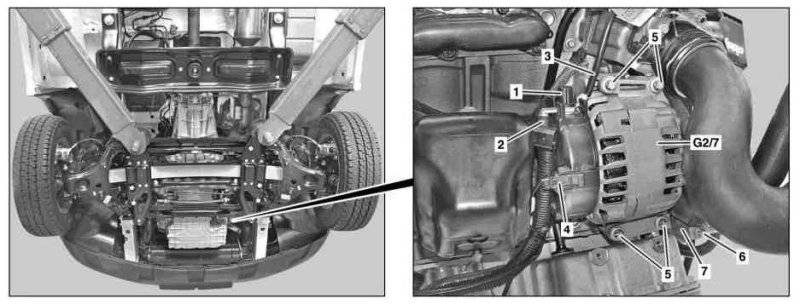

1 Contact protection
2 Electrical line
3 Electrical line
4 Electrical connector
5 Bolts
6 Bolt (engine 642.896)
7 Bracket (engine 642.896)

G2/7 Alternator with LIN bus
