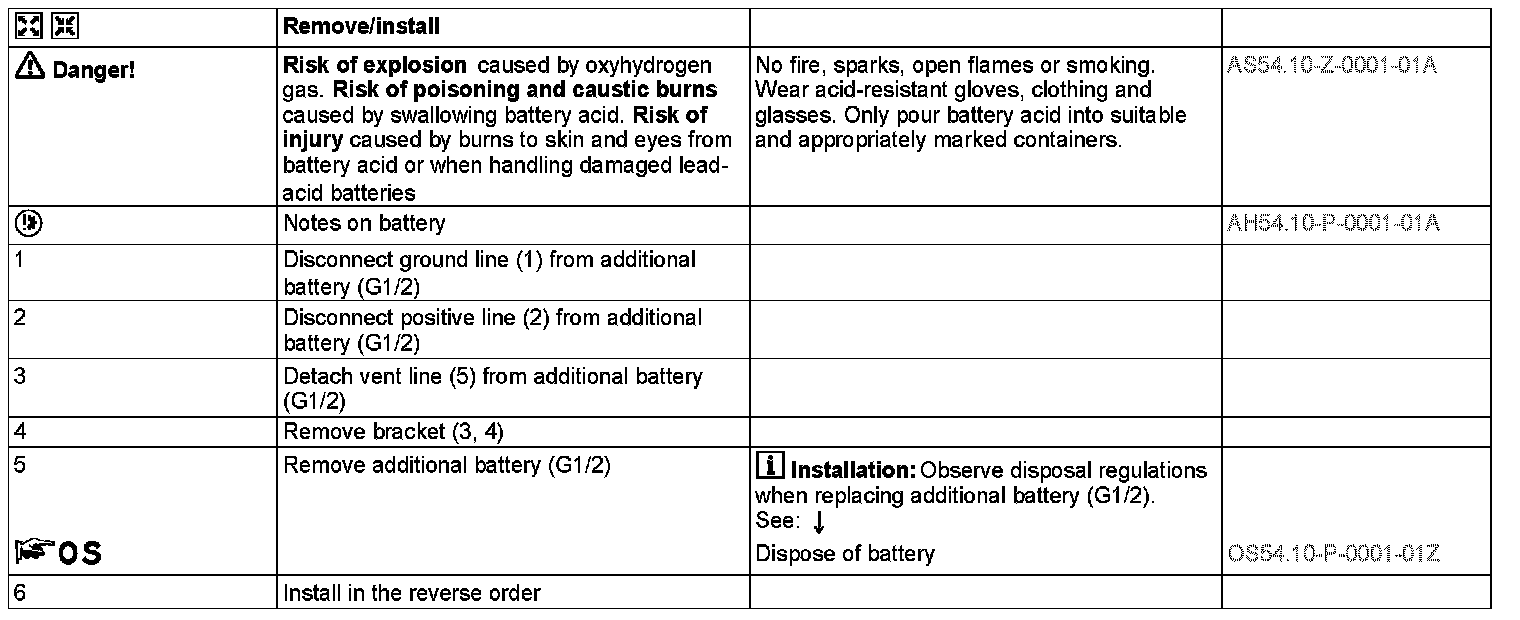

AR54.10-D-0007SD Remove/Install Additional Battery




AR54.10-D-0007SD Remove/Install Additional Battery

- with CODE (E28) 12 V 88 Ah additional battery

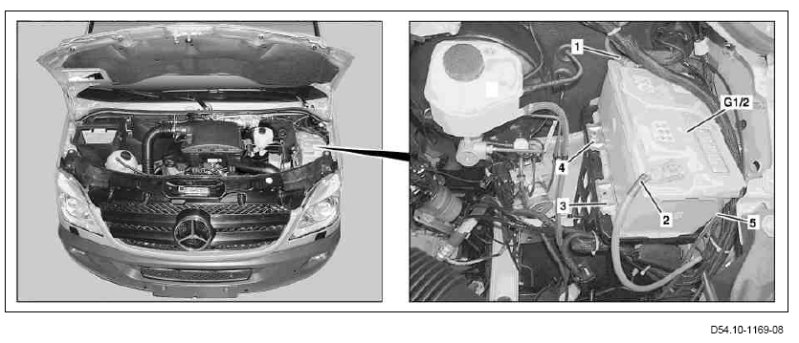

Shown on engine 646
1 Ground cable
2 Positive line
3 Bracket
4 Bracket
5 Vent line
G1/2 Additional battery
