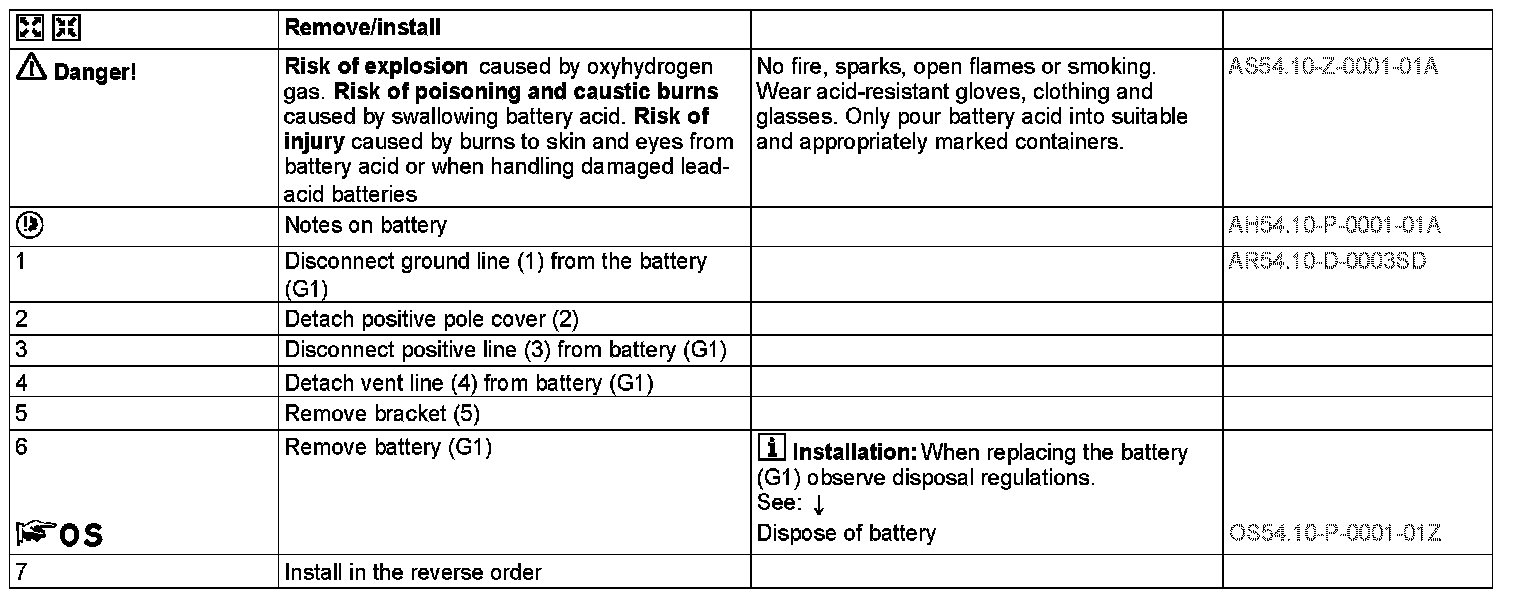

AR54.10-D-0005SD Remove/Install Battery




AR54.10-D-0005SD Remove/Install Battery

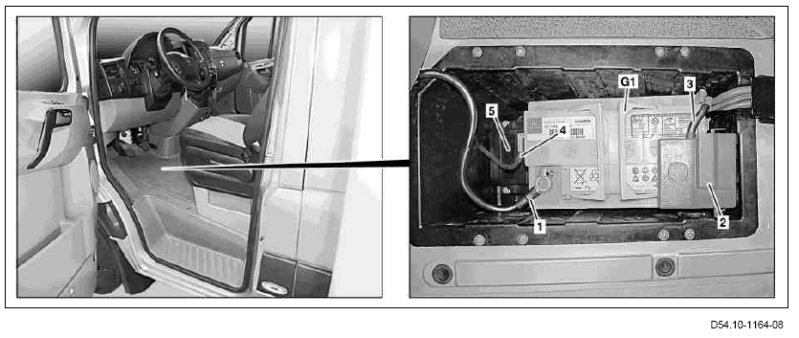

1 Ground cable
2 Positive terminal cover
3 Positive line
4 Vent line
5 Bracket
G1 Battery
