SI54.10-N-0003A Service Information: New Test Method For Batteries

SI54.10-N-0003A Service Information: New Test Method For Batteries















Battery test with Midtronics
The "Midtronics" battery test equipment is used to test all battery types (wet-cell and mat-type batteries) used by Daimler.

Additional batteries (traction batteries) without cold test current specification cannot be tested with the Midtronics. On these only the voltage can be checked.

New operation items simplify warranty processing.
The battery data and the test code can be recorded on the repair order already. This means that there is no need to fill out the "Test sheet for on-board electrical system batteries".

The new operation items are:
54-1108 Check starter battery for condition
Terminal stamp: ................. Batt. part no.: .............
Test code: .............

54-1158 Check condition of batteries (both)
Terminal stamp: ................. Batt. part no.: .............
Test code: .............

These operation items replace the following items:
54-1105 Check battery power output and condition.
54-1107 Check batteries (both) for power and condition.

The recorded data are to be entered on the W&G application in the note field.

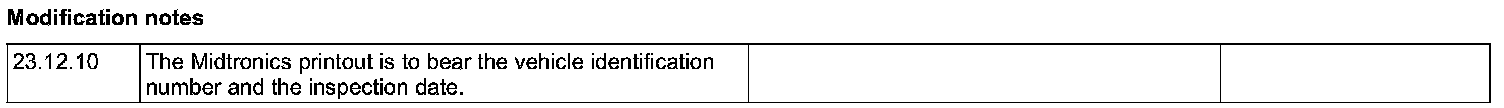

The Midtronics printout is to bear the vehicle identification number and the inspection date, the Midtronics printout is to also be filed in a tamperproof manner.

Practical example:
- Data determined:
Terminal stamp... 06/05
Batt.part no. ... 000 545 82 12
Midtronics test code..

- on repair order:
54 1109 Check status of batteries
Terminal stamp:..06/05..
Batt. part no.:..005458212..
Test code:..7A3L-G9600 7A3L-G9600

- on W&G application in "Note" field:
p-06/05 ET-005458212
Code 7A3L-G9600
