Battery Tray: Service and Repair

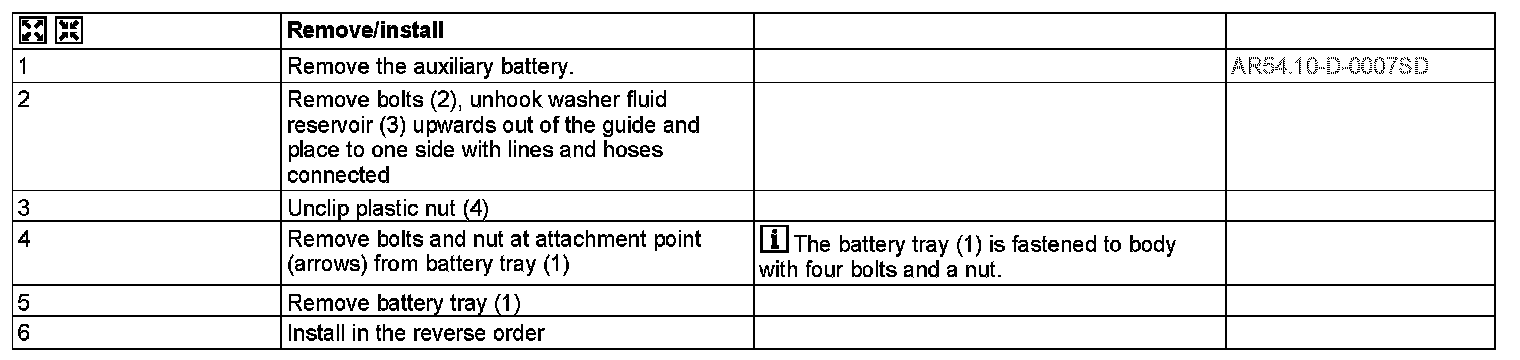

AR54.00-D-0002SD Remove/Install Battery Tray

- with CODE (E28) 12 V 88 Ah additional battery

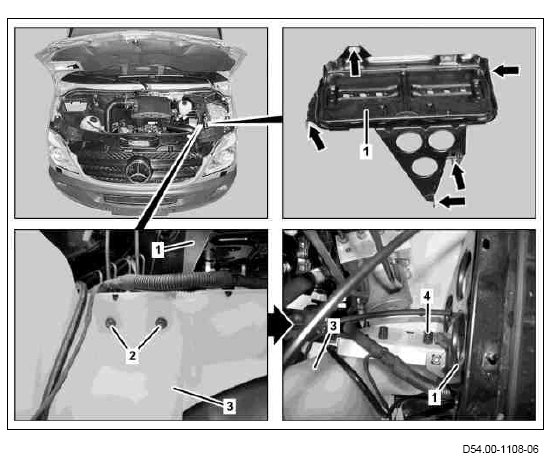

Shown on engine 646
1 Battery tray
2 Bolts
3 Washing water reservoir
4 Plastic nuts
