Negative: Service and Repair

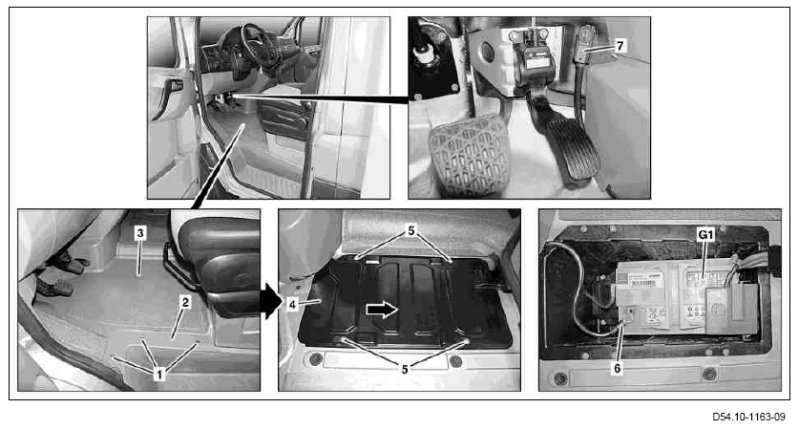

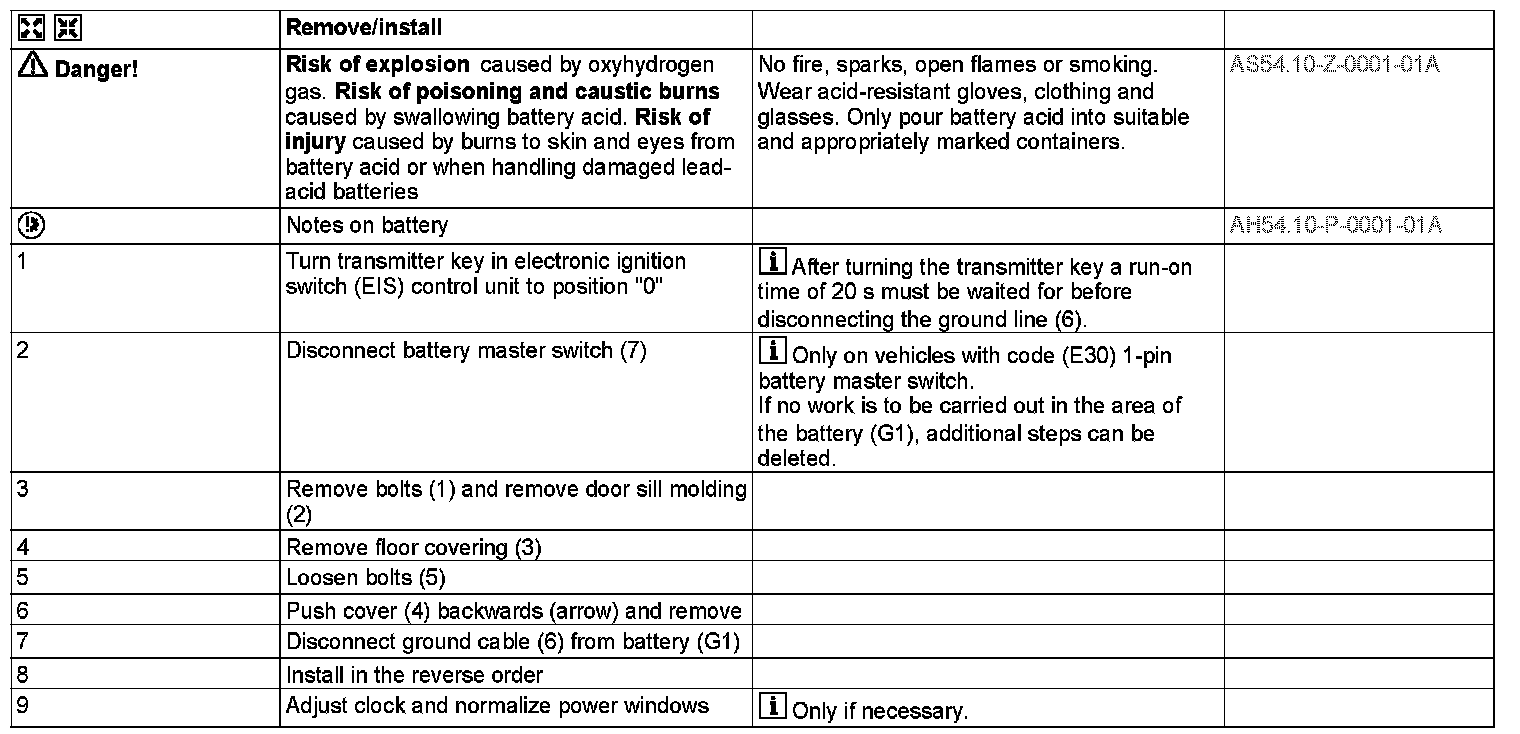

AR54.10-D-0003SD Disconnect/Connect Battery Ground Line








1 Bolts
2 Door sill molding
3 Floor Covering
4 Cover
5 Bolts
6 Ground cable
7 Battery master switch (with code (E30) 1-pin battery master switch)
G1 Battery
