Home >> Mercedes Benz Truck >> 2011 >> Sprinter 3500 Cab (906.155) V6-3.0L DSL Turbo (642.898) >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Transmission and Drivetrain >> System Specifications >> BA35.30-N-1000-01H Rear Axle Shaft

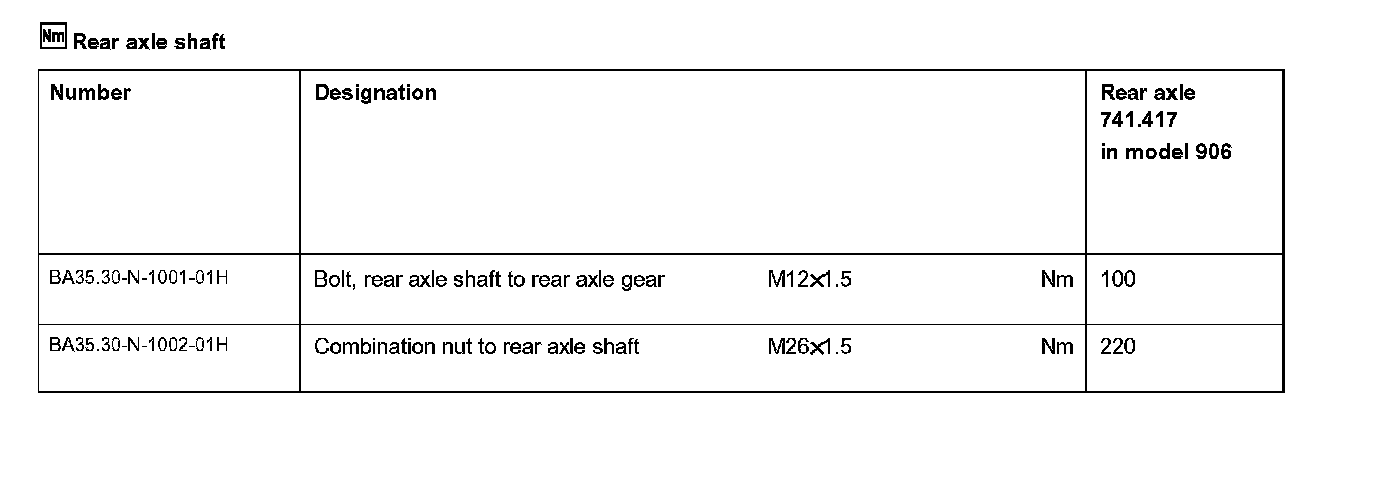

BA35.30-N-1000-01H Rear Axle Shaft



BA35.30-N-1000-01H Rear Axle Shaft
- Rear Axle 741.417
