Home >> Mercedes Benz Truck >> 2011 >> Sprinter 3500 Cab (906.155) V6-3.0L DSL Turbo (642.898) >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Transmission and Drivetrain >> Flywheel

Flywheel

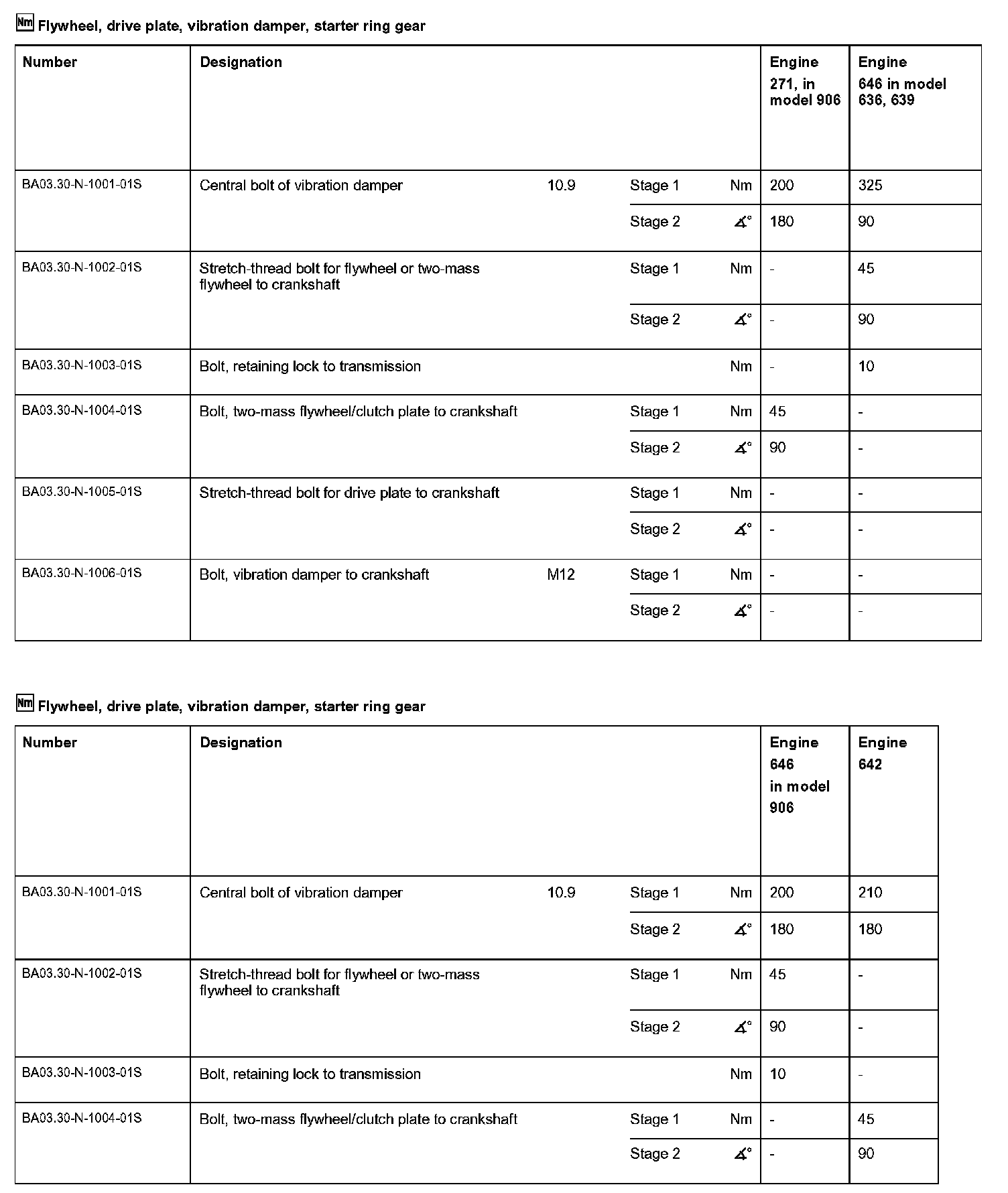

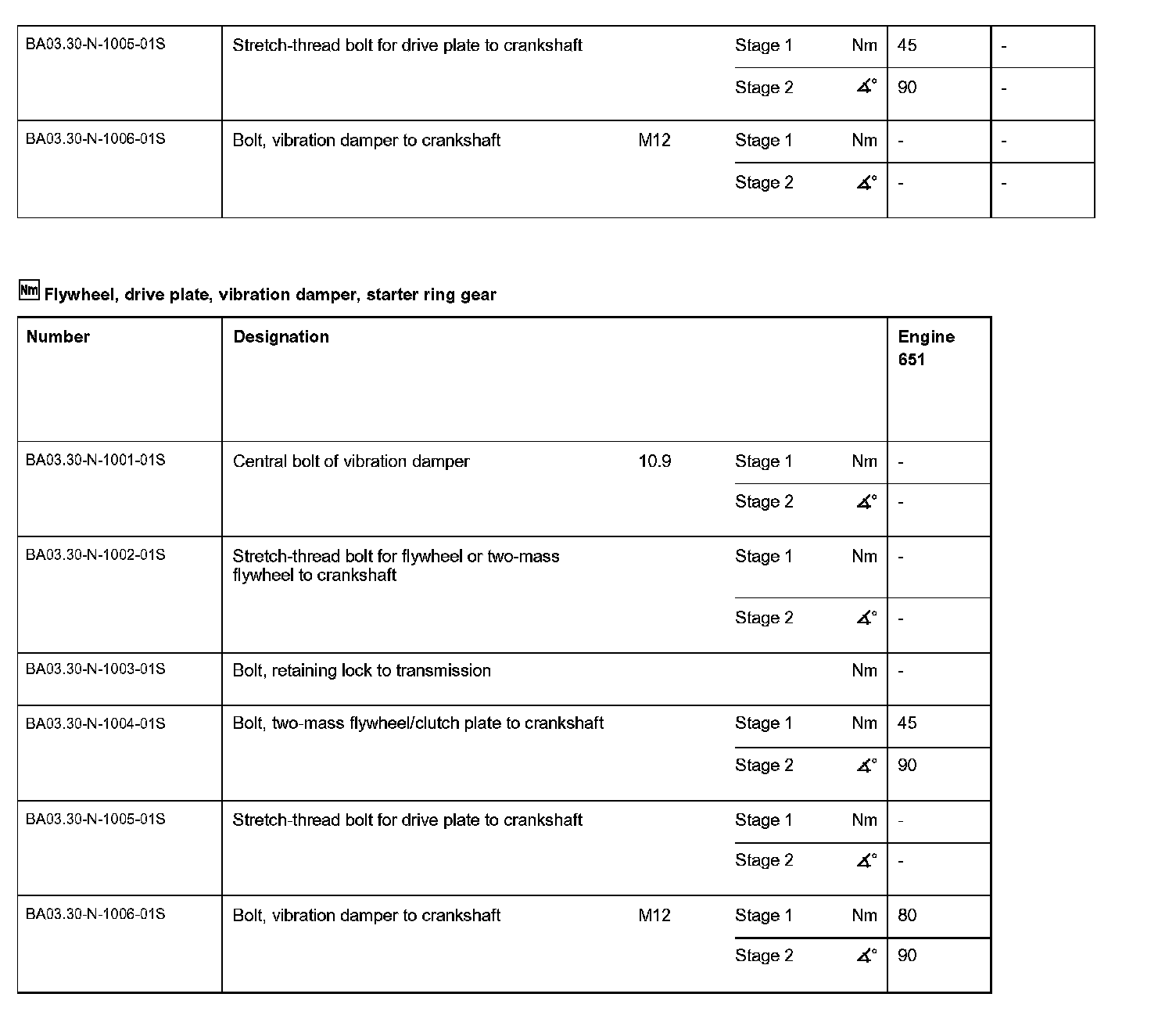

BA03.30-N-1000-01S Flywheel, Driven Plate, Vibration Damper, Starter Ring Gear
