Home >> Mercedes Benz Truck >> 2011 >> Sprinter 3500 Cab (906.155) V6-3.0L DSL Turbo (642.898) >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Torque Converter

Torque Converter

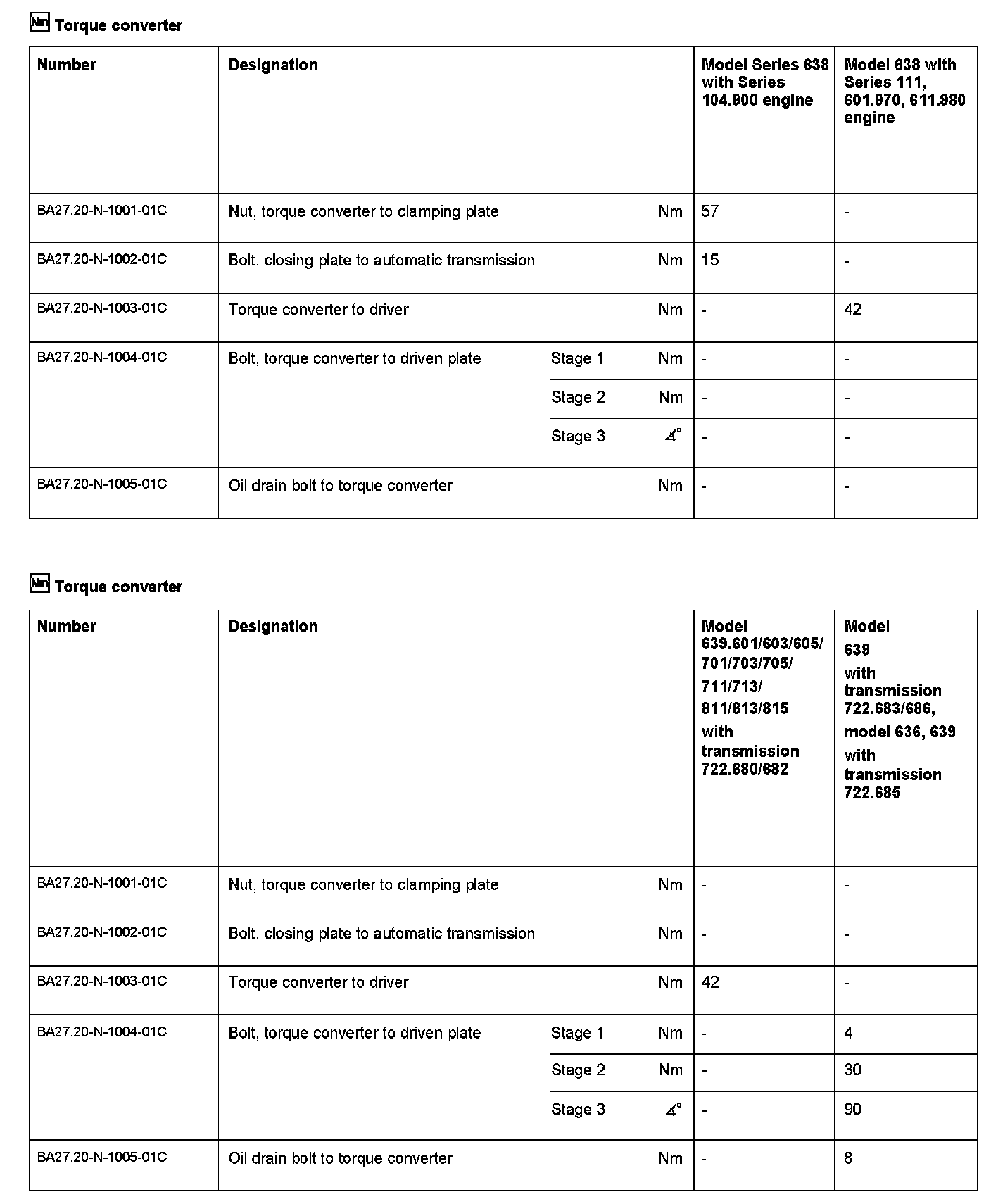

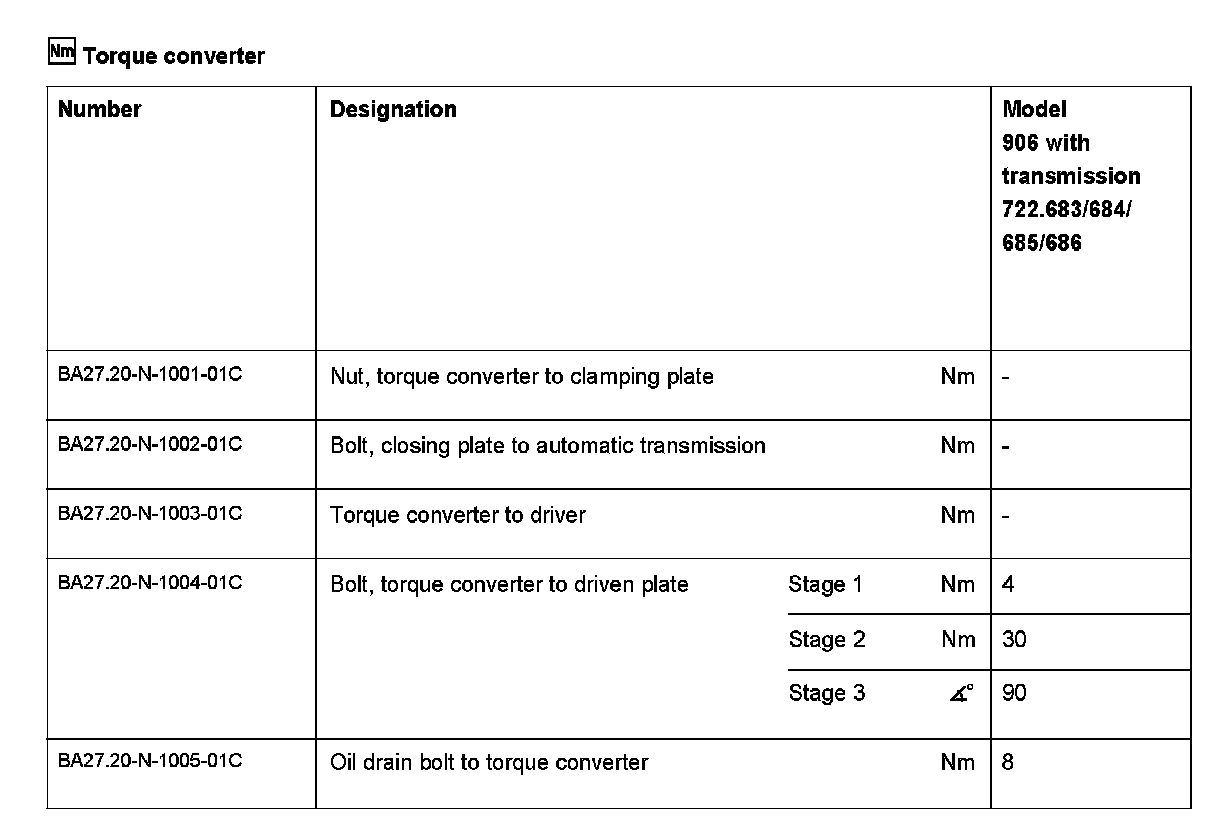

BA27.20-N-1000-01C Torque Converter

Automatic transmission in model 636, 638, 639, 906
