Home >> Mercedes Benz Truck >> 2011 >> Sprinter 3500 Cab (906.155) V6-3.0L DSL Turbo (642.898) >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Suspension >> System Specifications >> BE32.20-N-1000-01B Front Axle Steel Springs

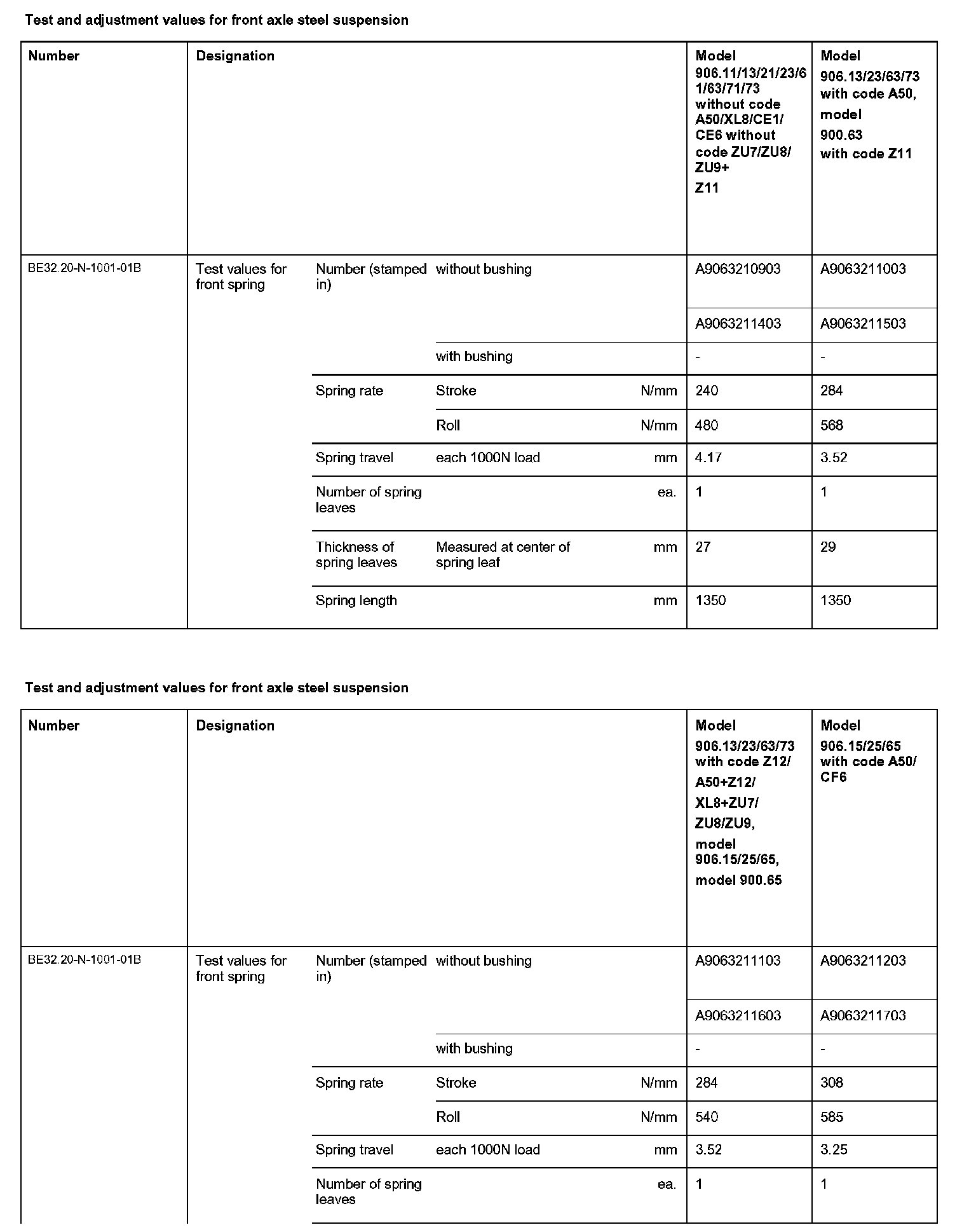

BE32.20-N-1000-01B Front Axle Steel Springs



BE32.20-N-1000-01B Front Axle Steel Springs
