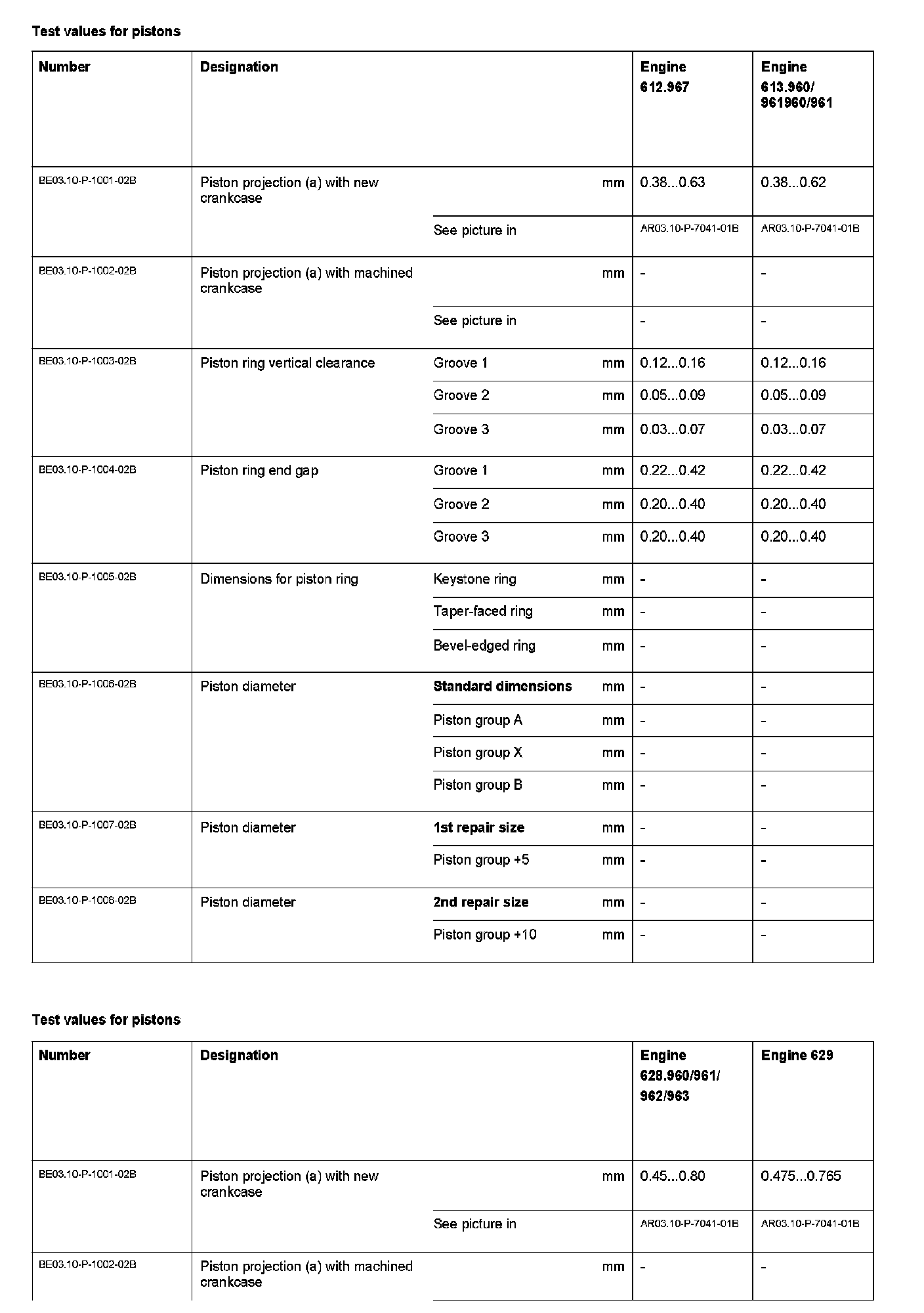

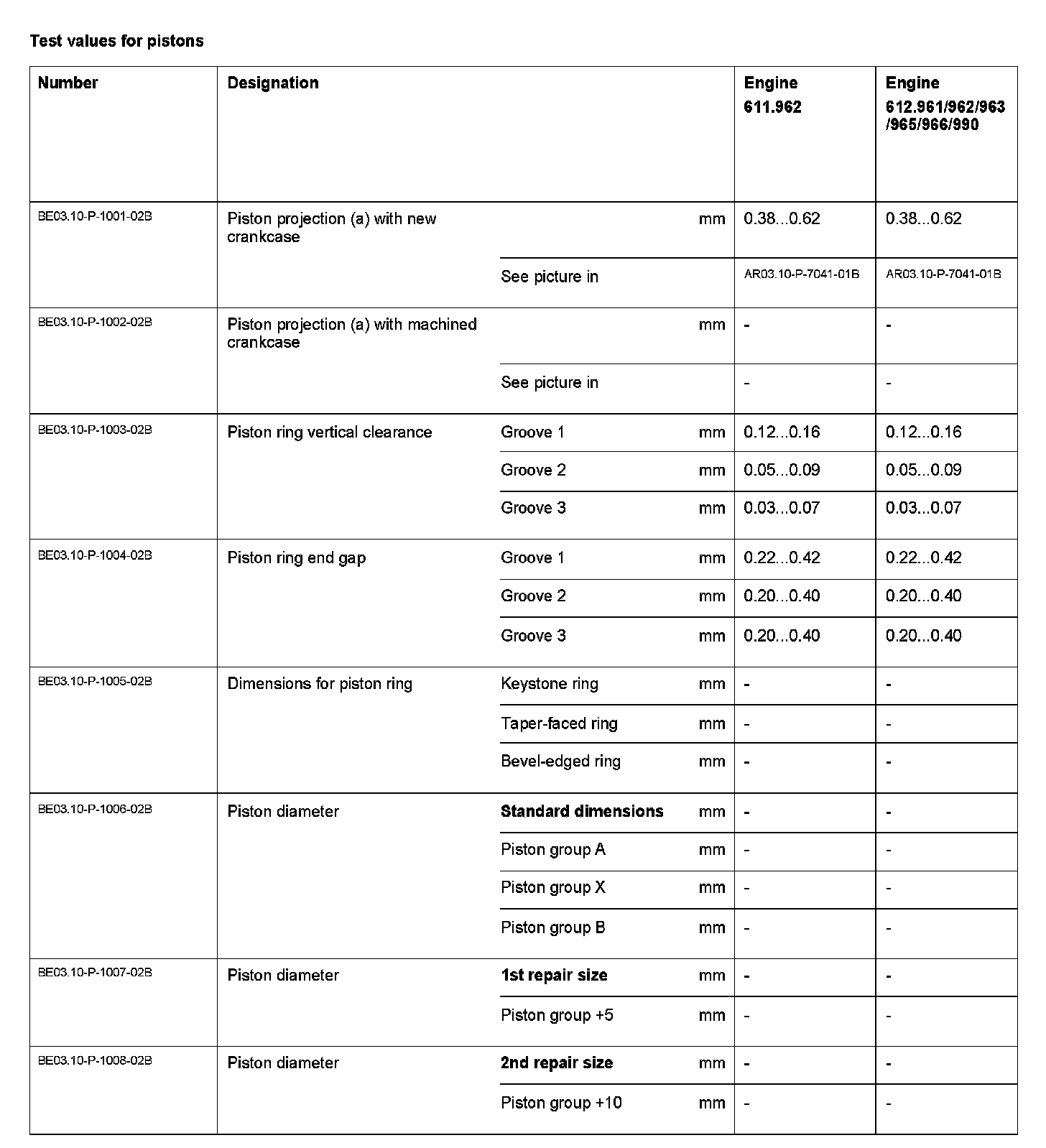

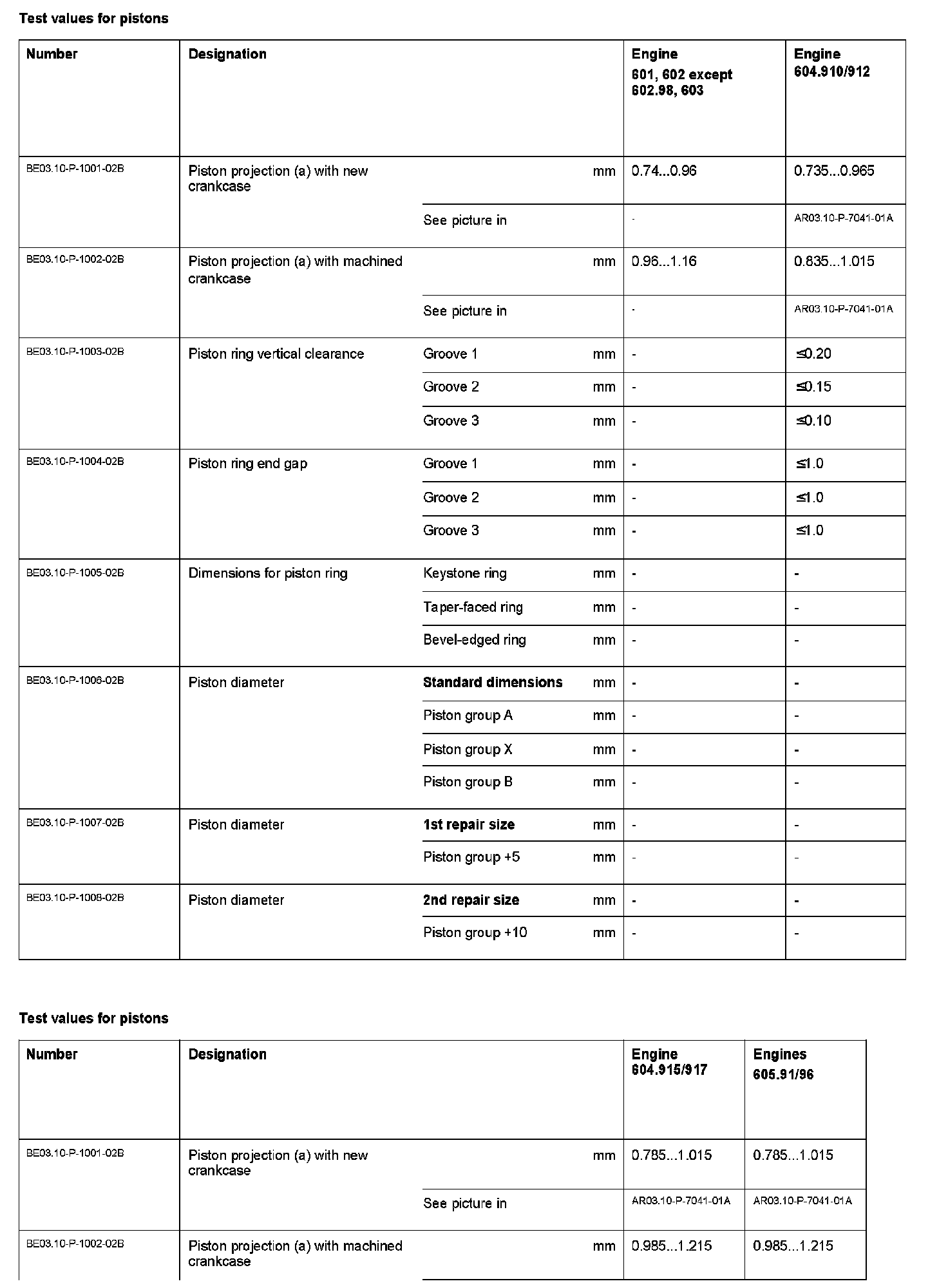

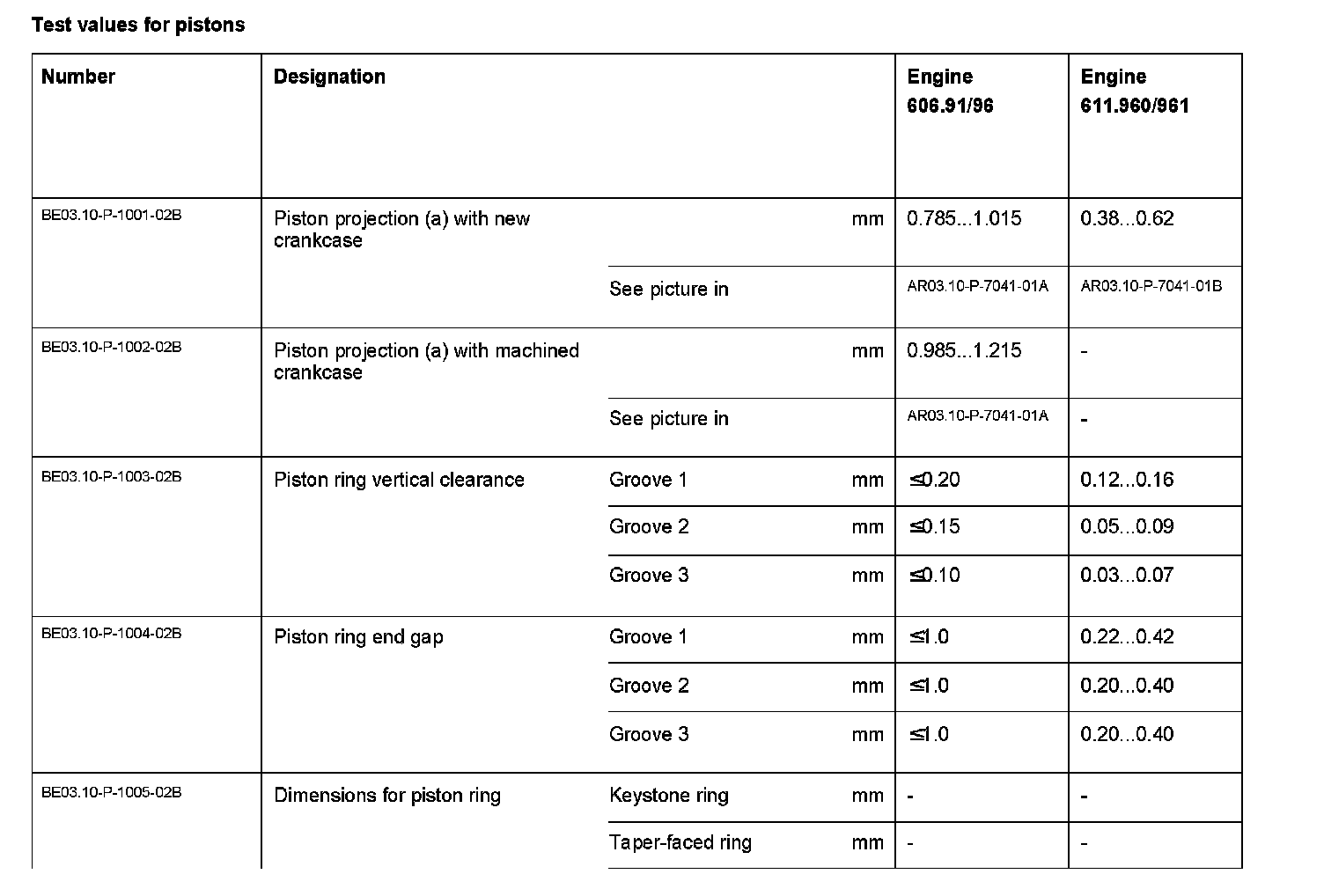

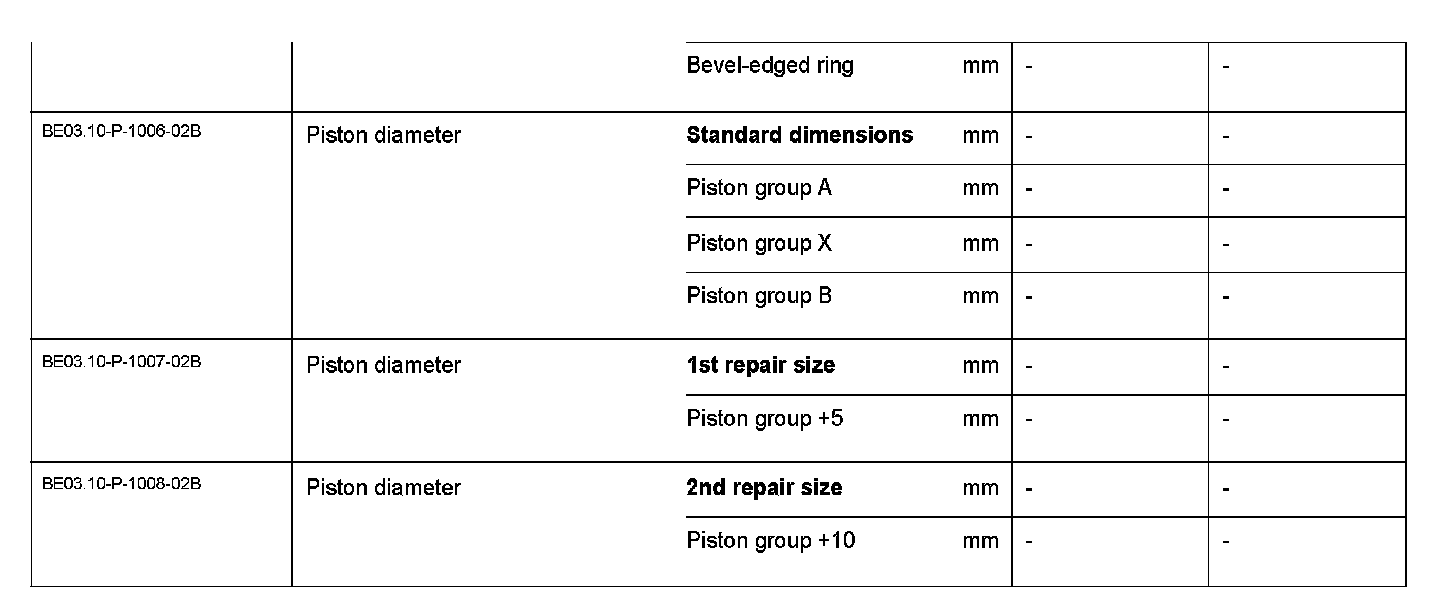

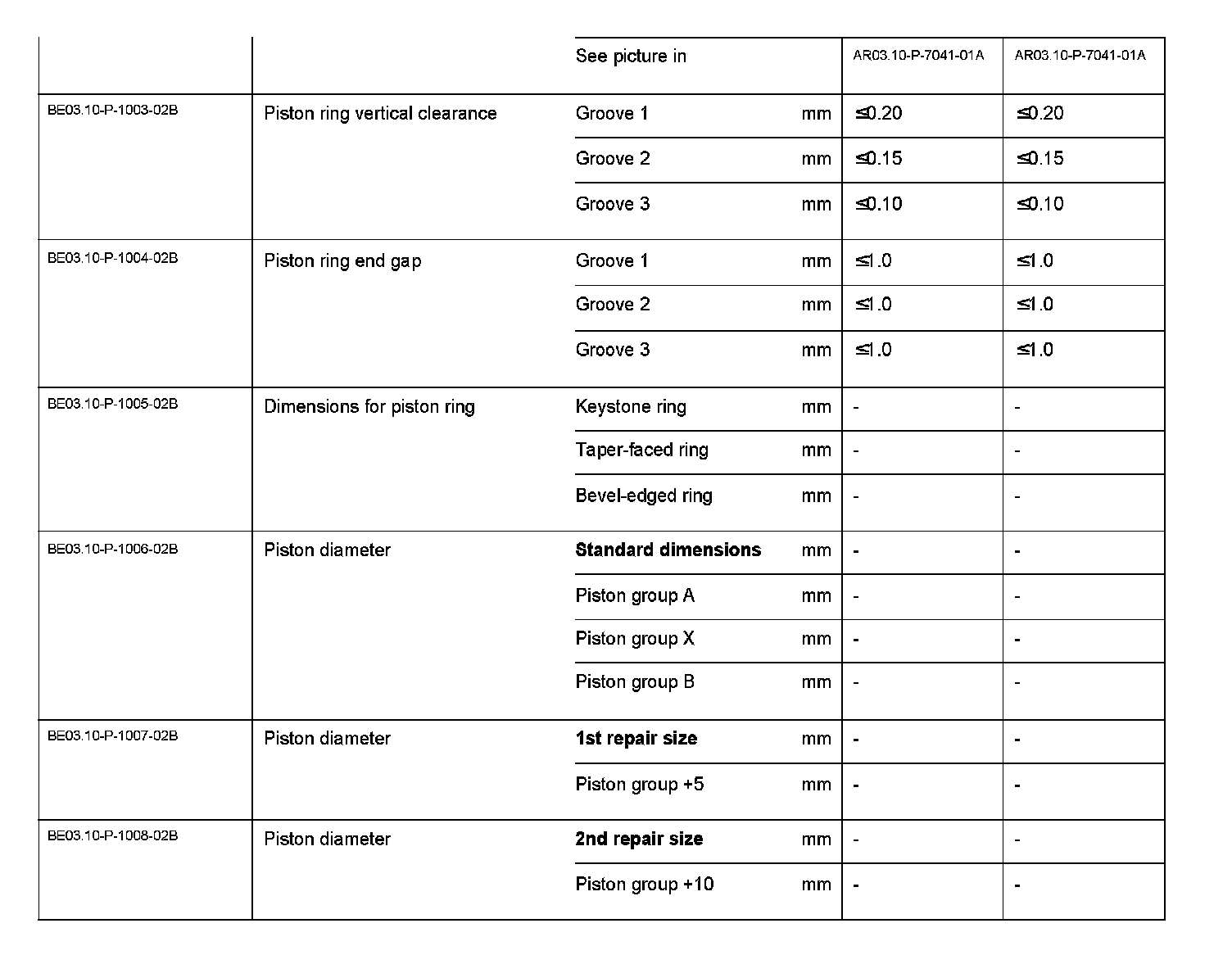

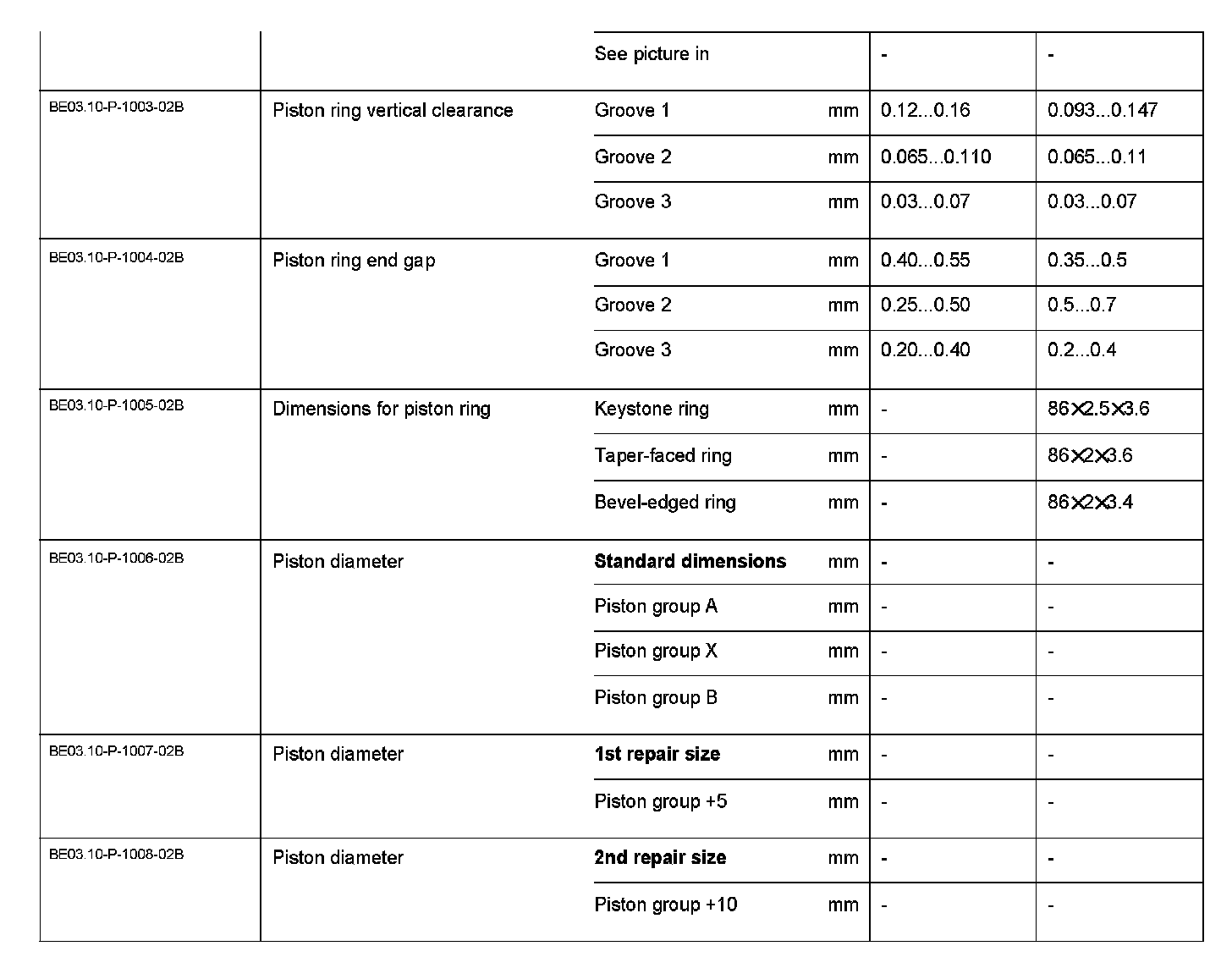

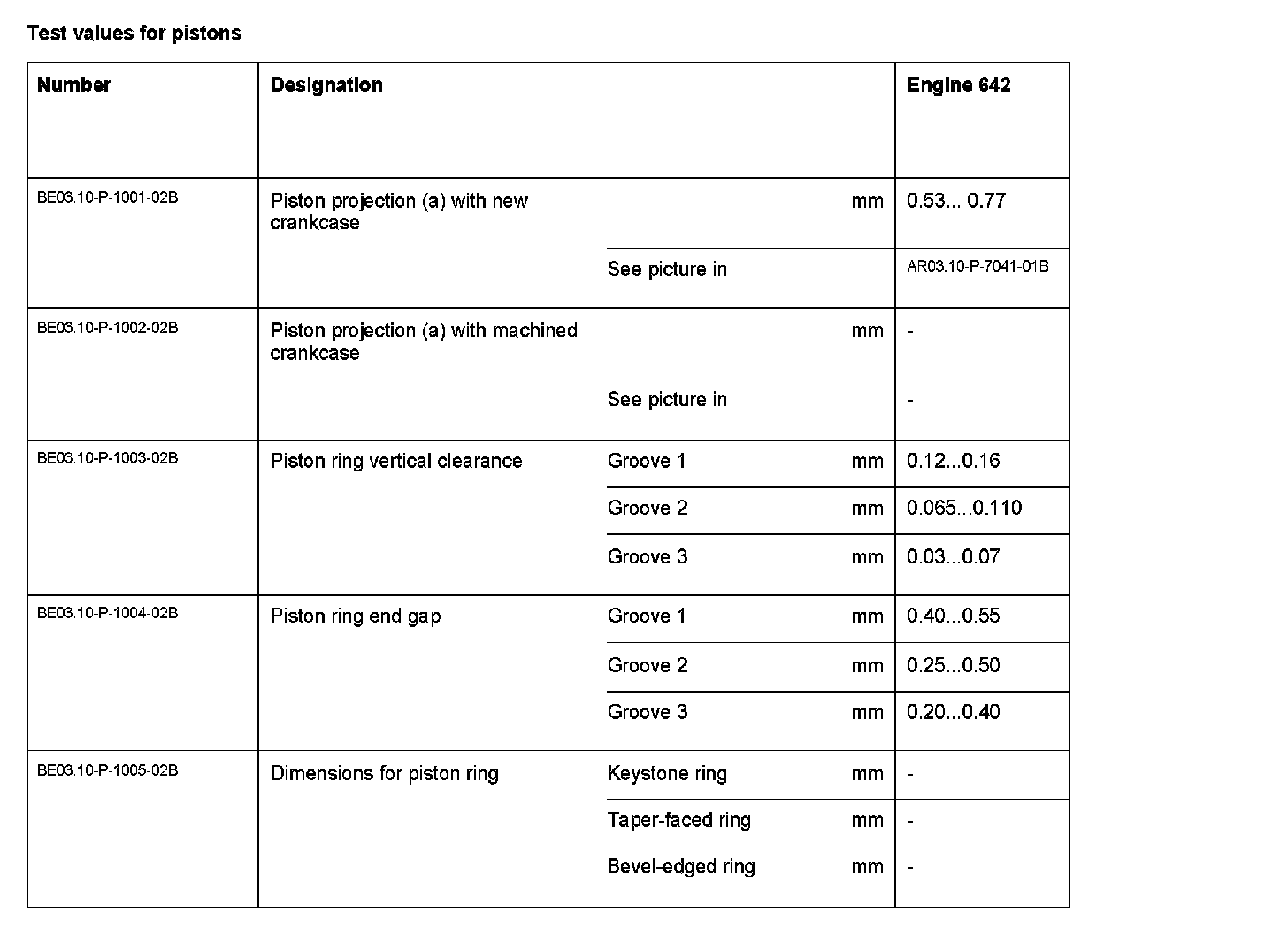

BE03.10-P-1000-02B Test Values For Pistons
ENGINES 601, 602, 603, 604, 605, 606, 611, 612, 613, 628, 642
