Home >> Mercedes Benz Truck >> 2011 >> Sprinter 3500 Cab (906.155) V6-3.0L DSL Turbo (642.898) >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Engine >> Engine Mount

Engine Mount

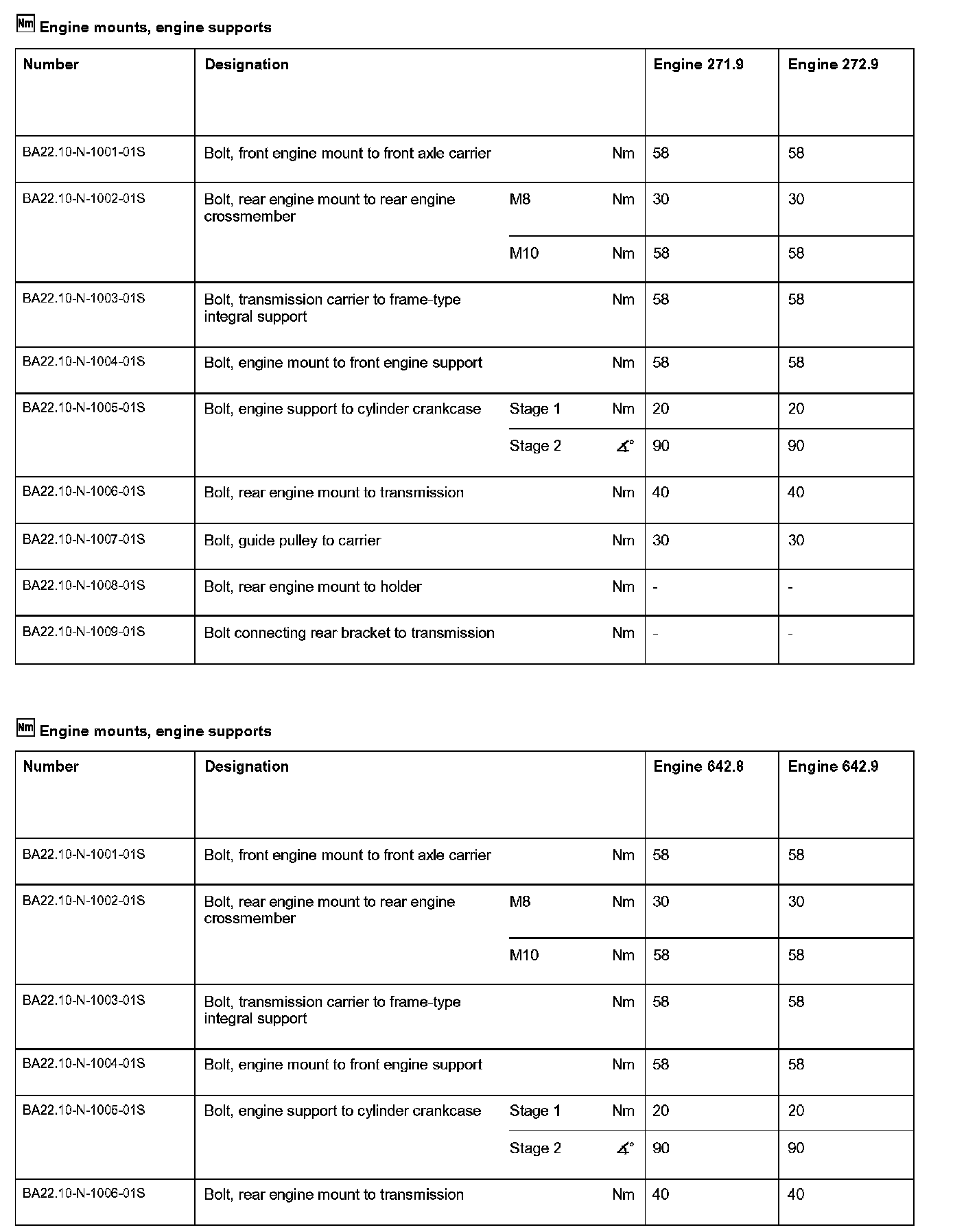

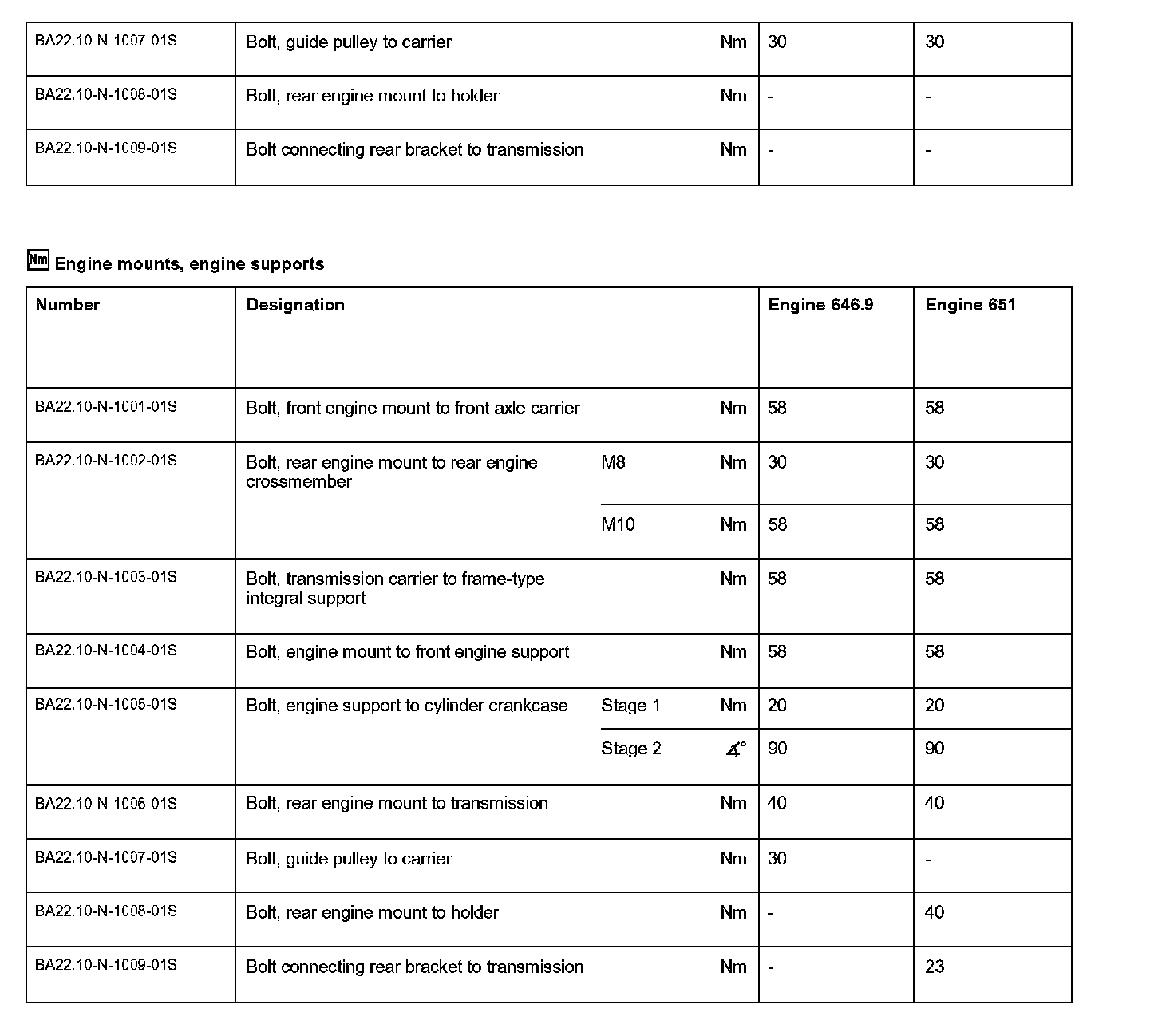

BA22.10-N-1000-01S Engine Mounts, Engine Supports
