Home >> Mercedes Benz Truck >> 2011 >> Sprinter 3500 Cab (906.155) V6-3.0L DSL Turbo (642.898) >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Engine >> Drive Belt Tensioner

Drive Belt Tensioner

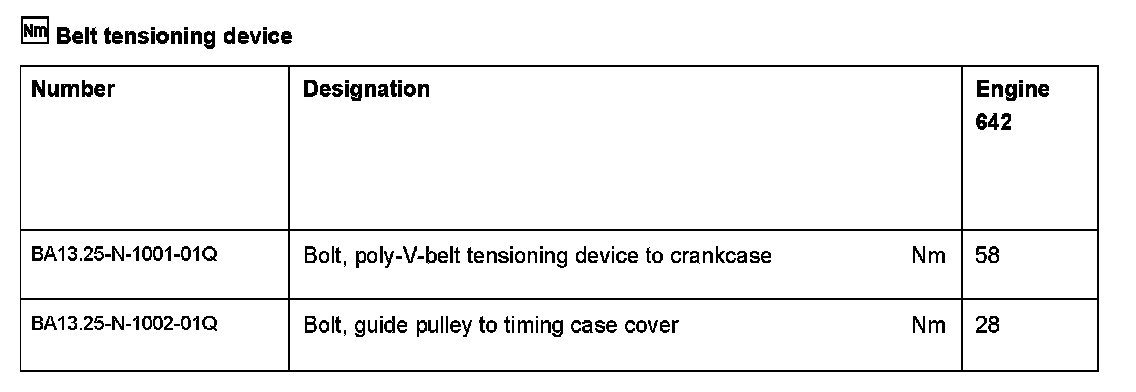

BA13.25-N-1000-01Q Belt Tensioning Device
