Sprinter 3500 Cab (906.155) V6-3.0L DSL Turbo (642.898)
>>
Repair and Diagnosis
>>
Specifications
>>
Mechanical Specifications
>>
Engine
>>
Drive Belt
Drive Belt

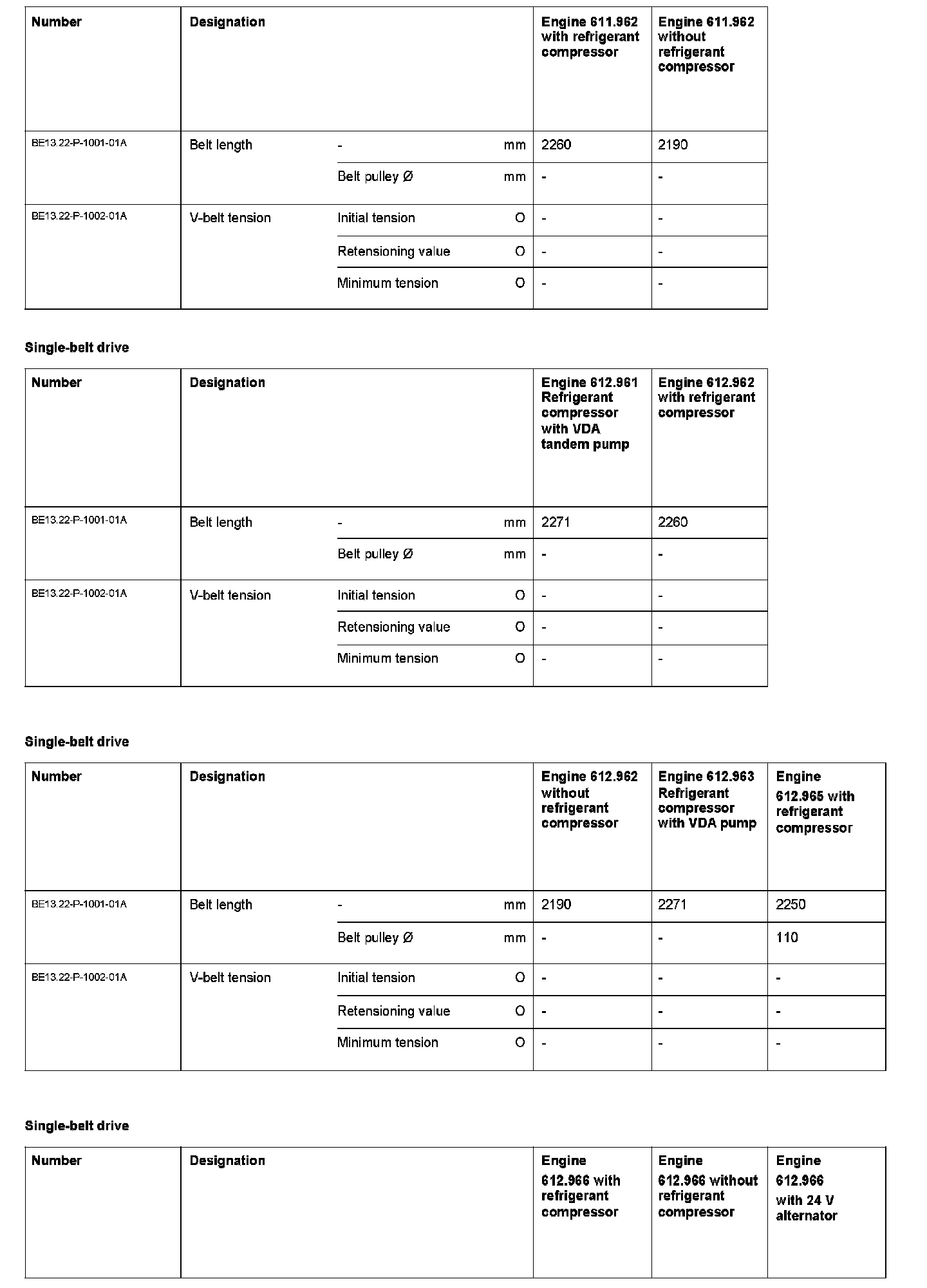

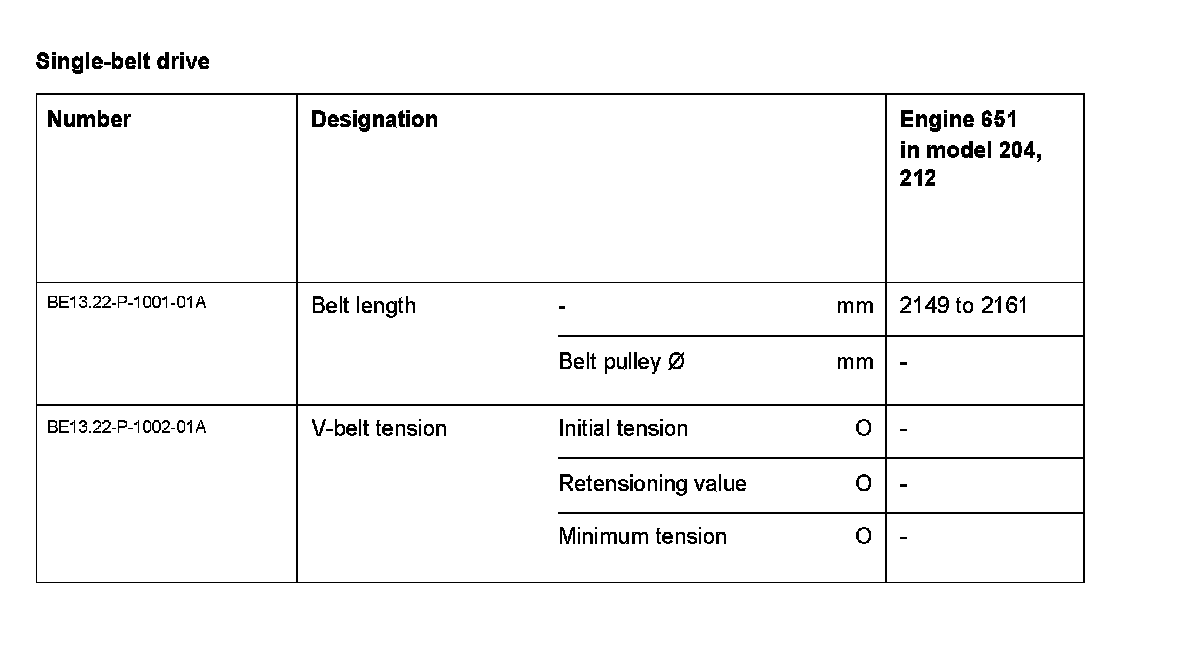

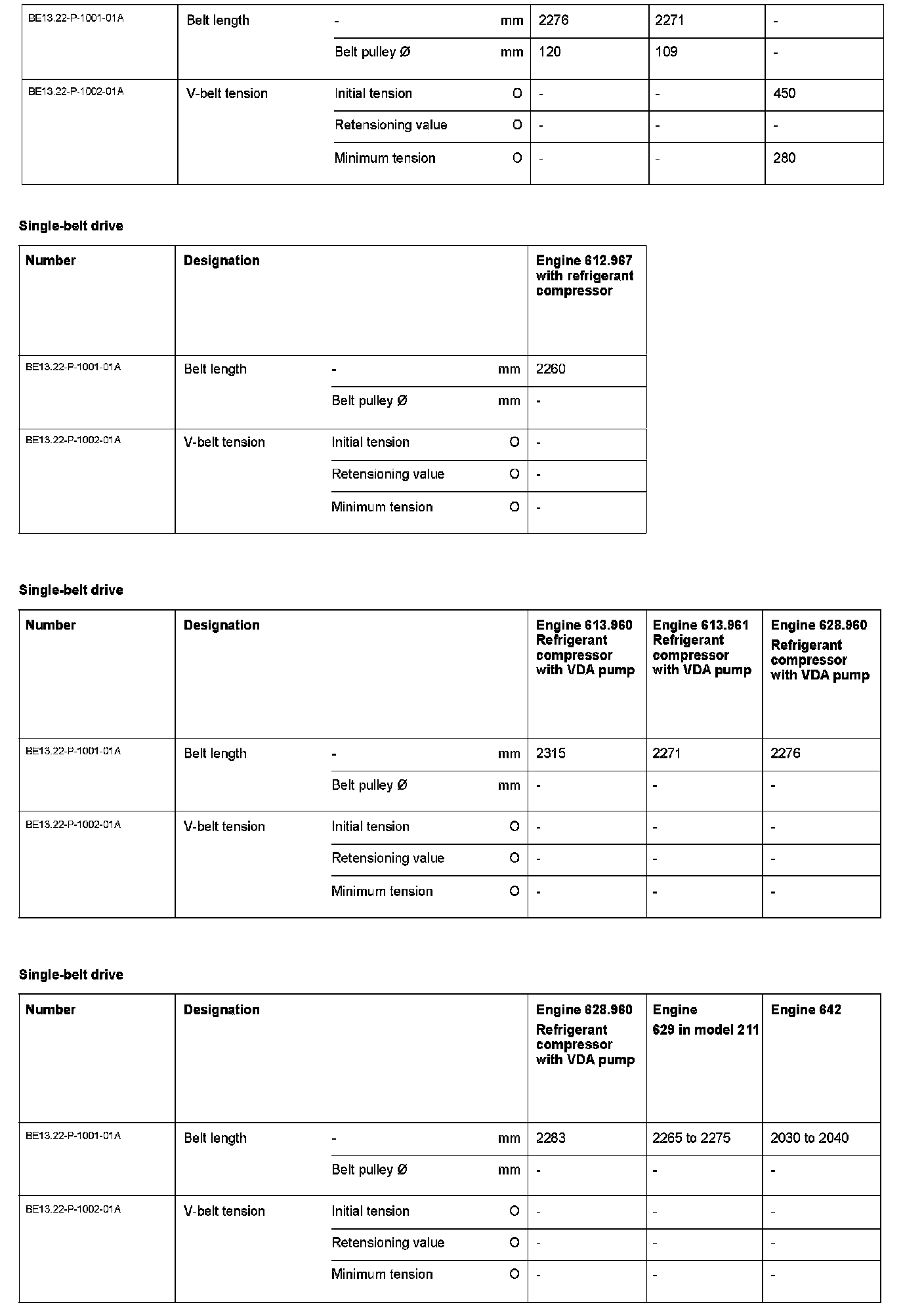

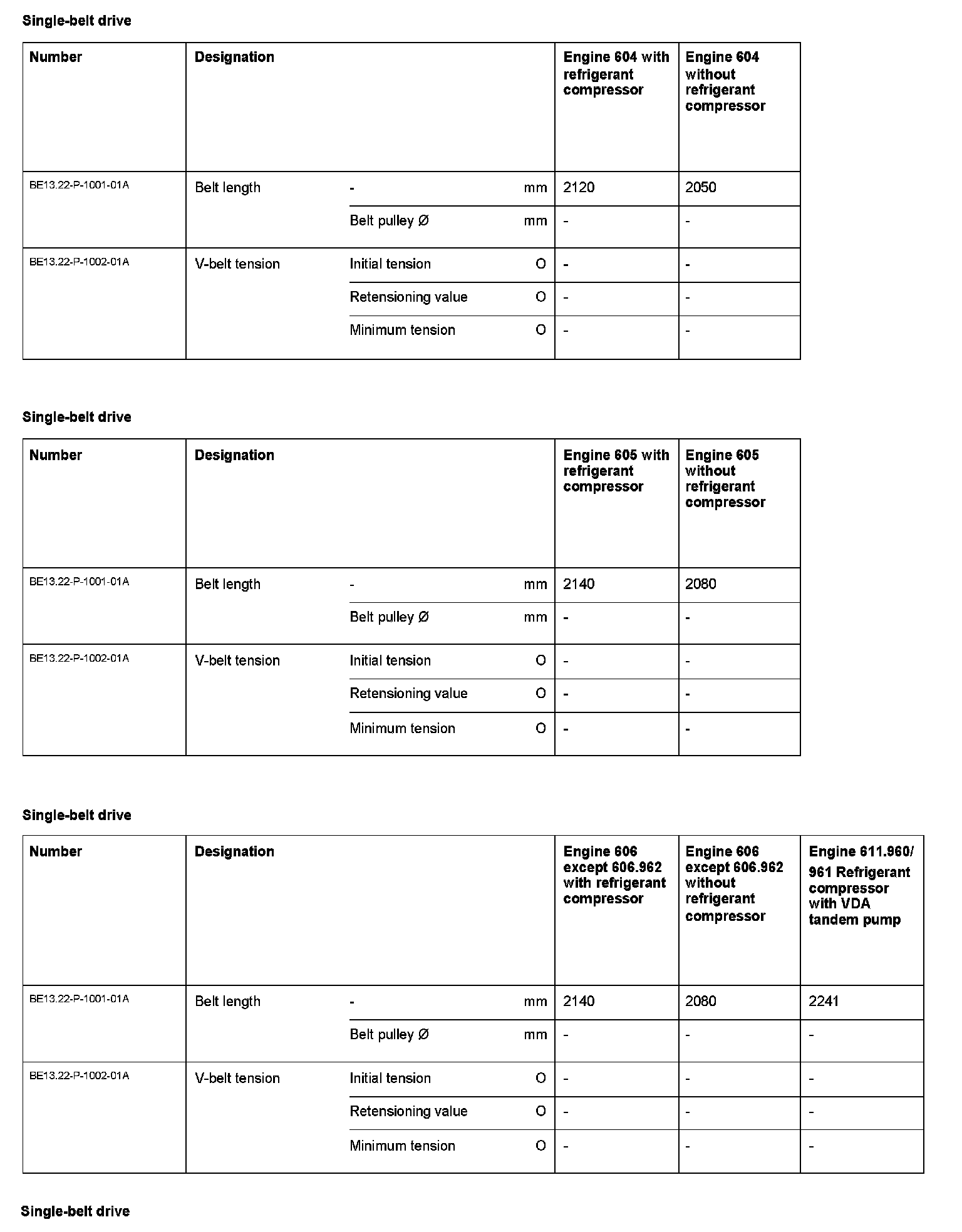

BE13.22-P-1000-01A Single-belt Drive
Engine 604, 605, 606, 611, 612, 613, 628, 629, 642, 651
