Home >> Mercedes Benz Truck >> 2011 >> Sprinter 3500 Cab (906.155) V6-3.0L DSL Turbo (642.898) >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Emission Control Systems >> System Specifications

System Specifications

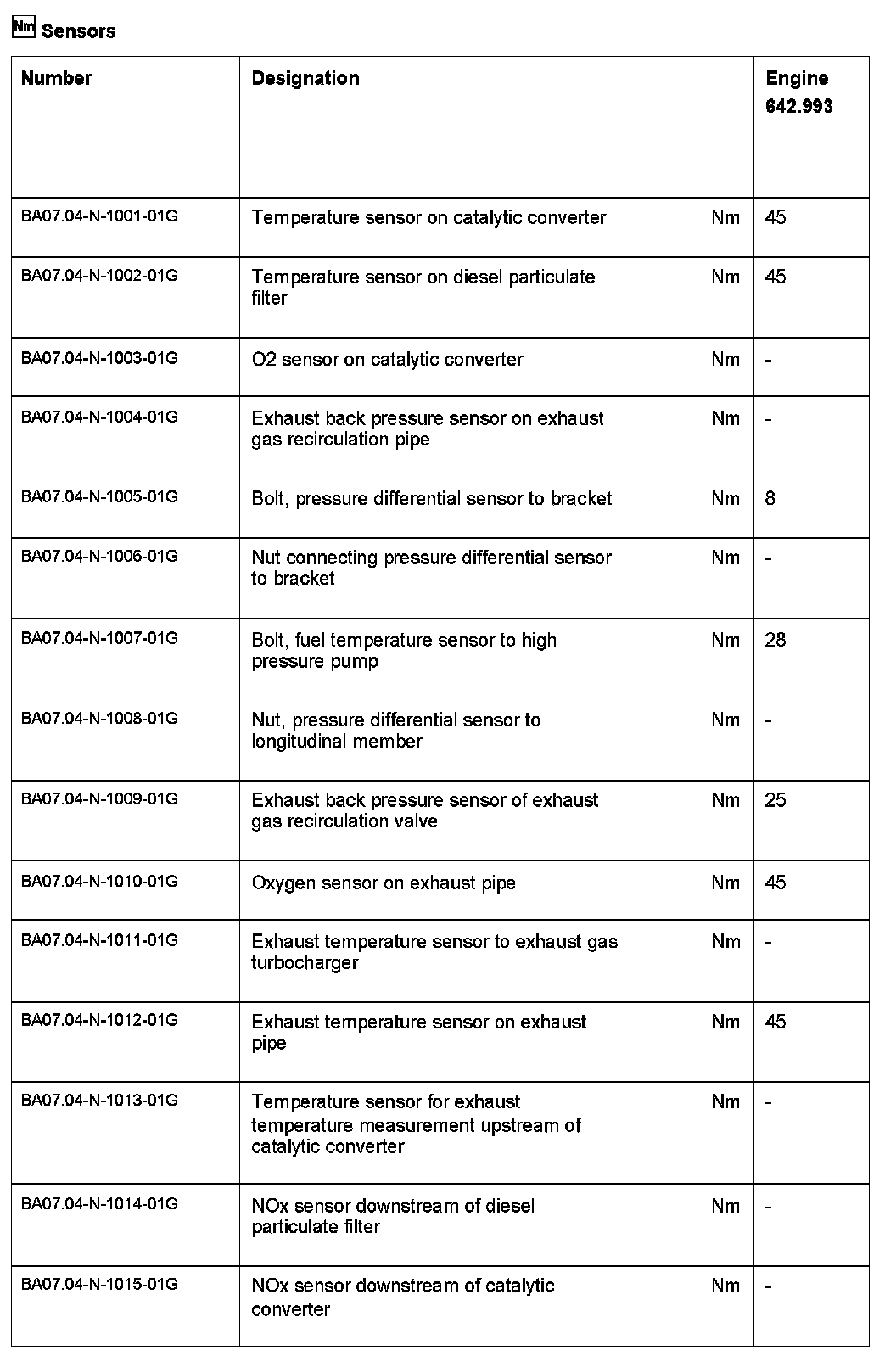

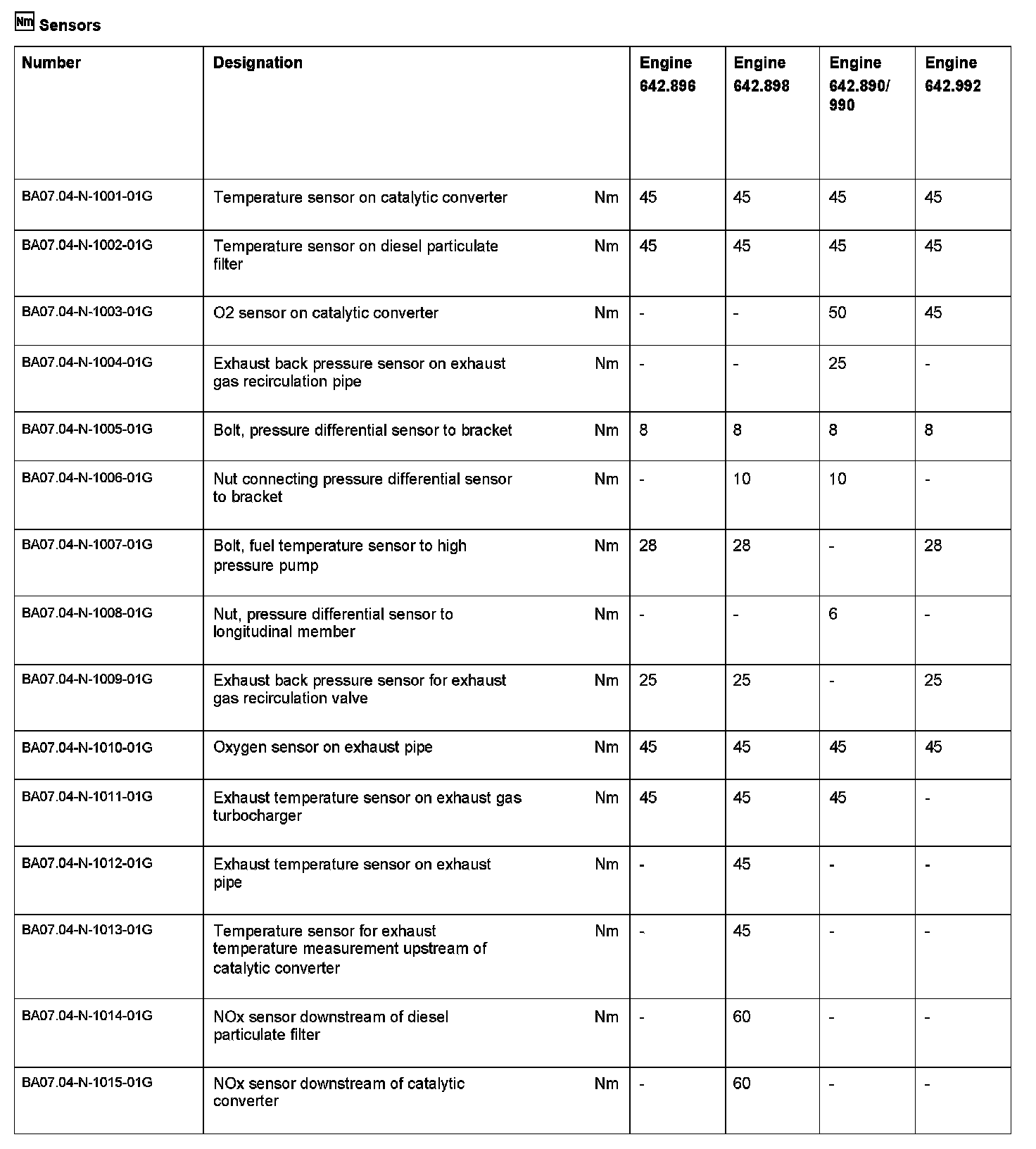

BA07.04-N-1000-01G Sensors
