Home >> Mercedes Benz Truck >> 2011 >> Sprinter 3500 Cab (906.155) V6-3.0L DSL Turbo (642.898) >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Brakes and Traction Control >> System Specifications >> BE42.10-N-1000-10A Service Brakes

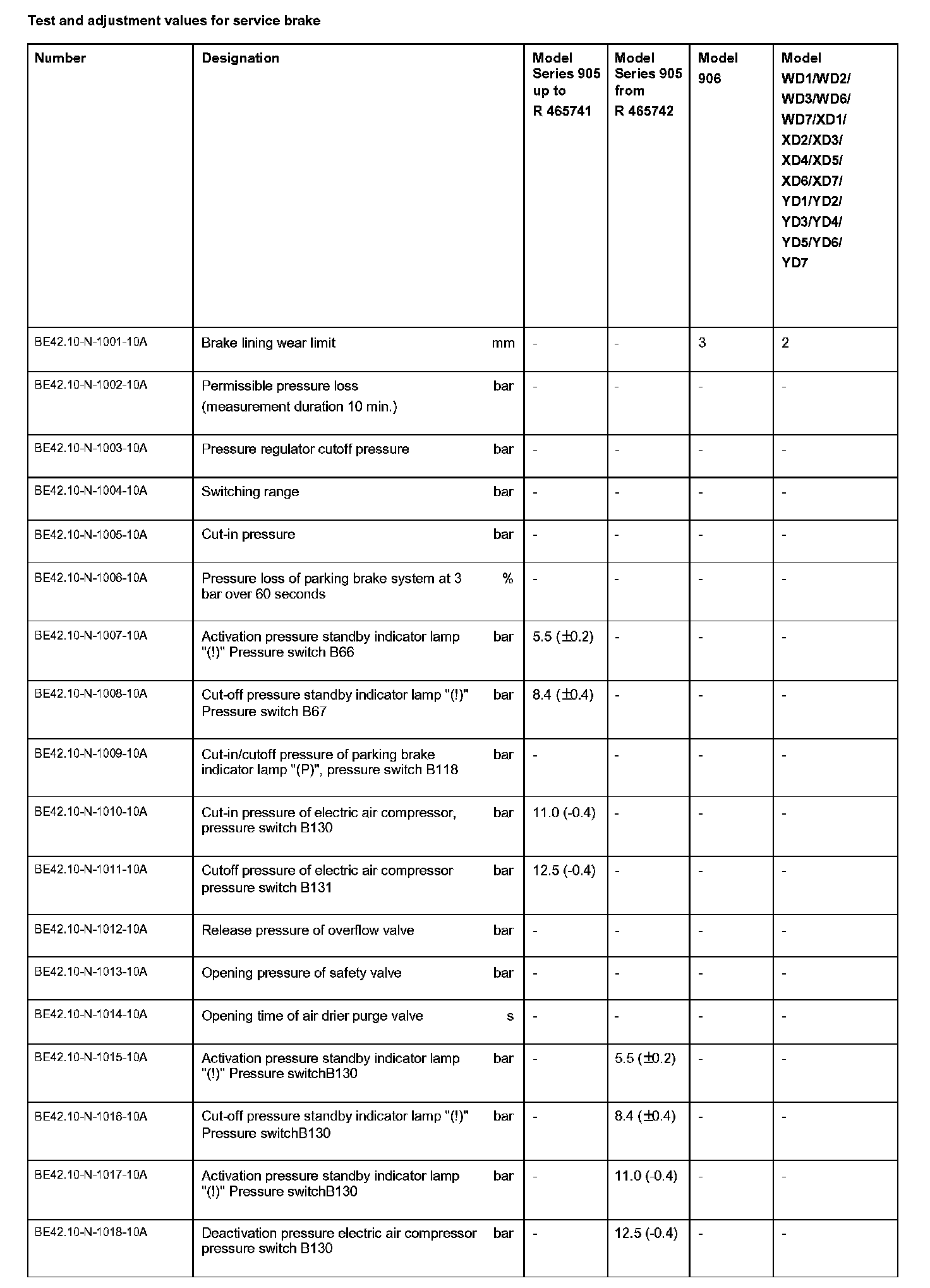

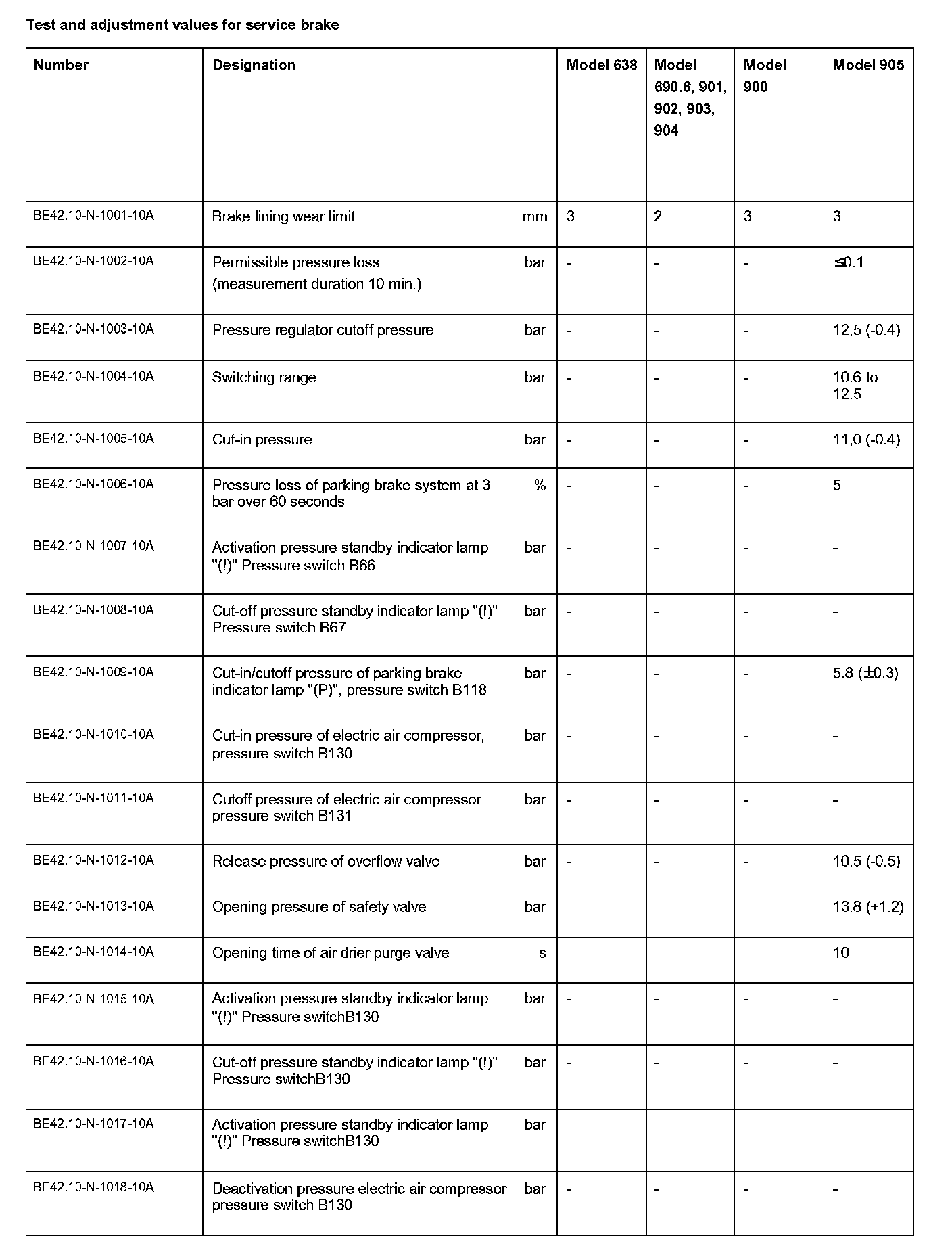

BE42.10-N-1000-10A Service Brakes



BE42.10-N-1000-10A Service Brakes
