Home >> Mercedes Benz Truck >> 2011 >> Sprinter 3500 Cab (906.155) V6-3.0L DSL Turbo (642.898) >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Brakes and Traction Control >> Brake Pedal Assy

Brake Pedal Assy

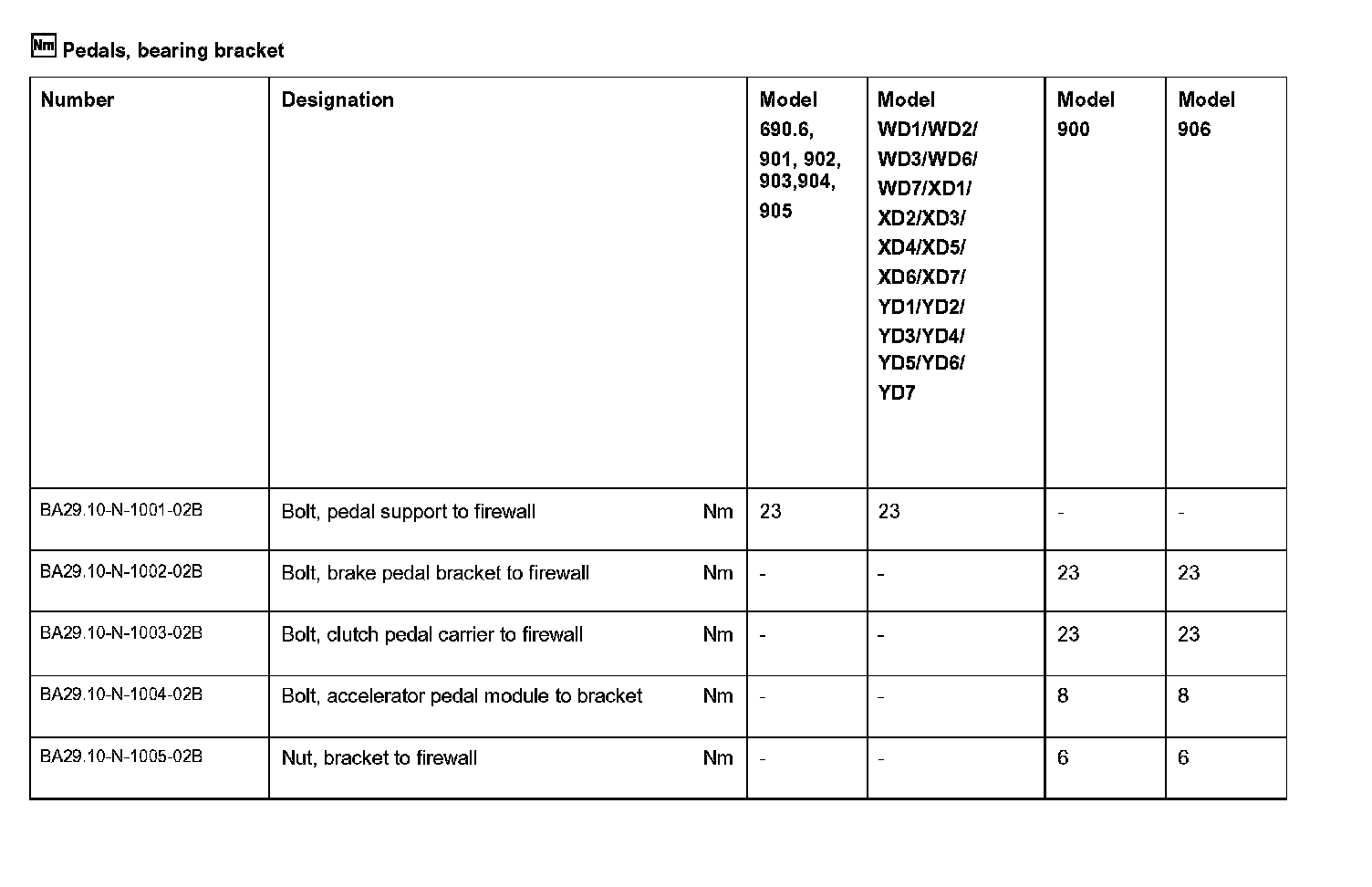

BA29.10-N-1000-02B Pedals, Bearing Bracket
