Home >> Mercedes Benz Truck >> 2011 >> Sprinter 3500 Cab (906.155) V6-3.0L DSL Turbo (642.898) >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Alignment >> BE40.30-N-1000-05D Test Values For Distance and Comparison Measurements on Rear Axle

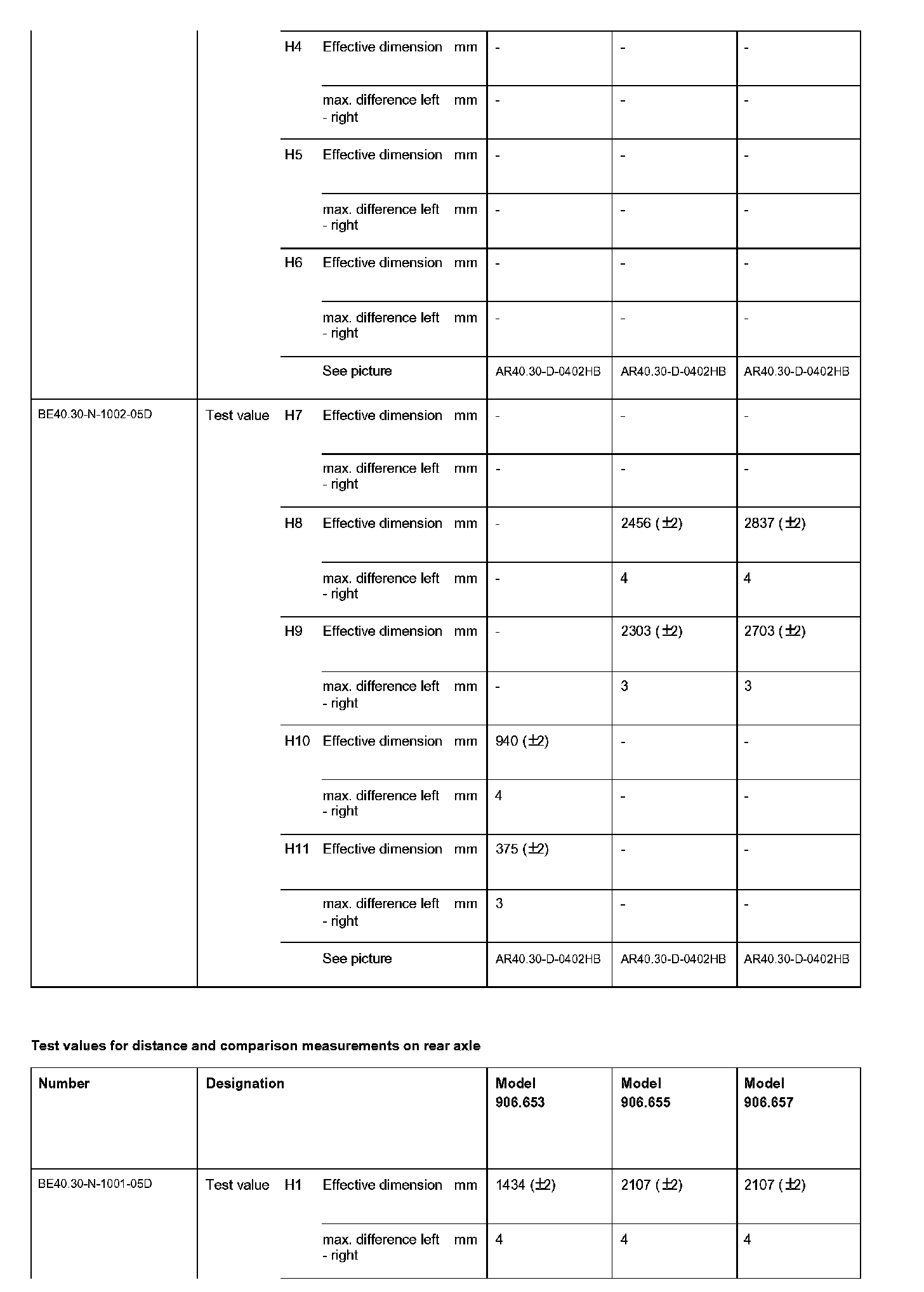

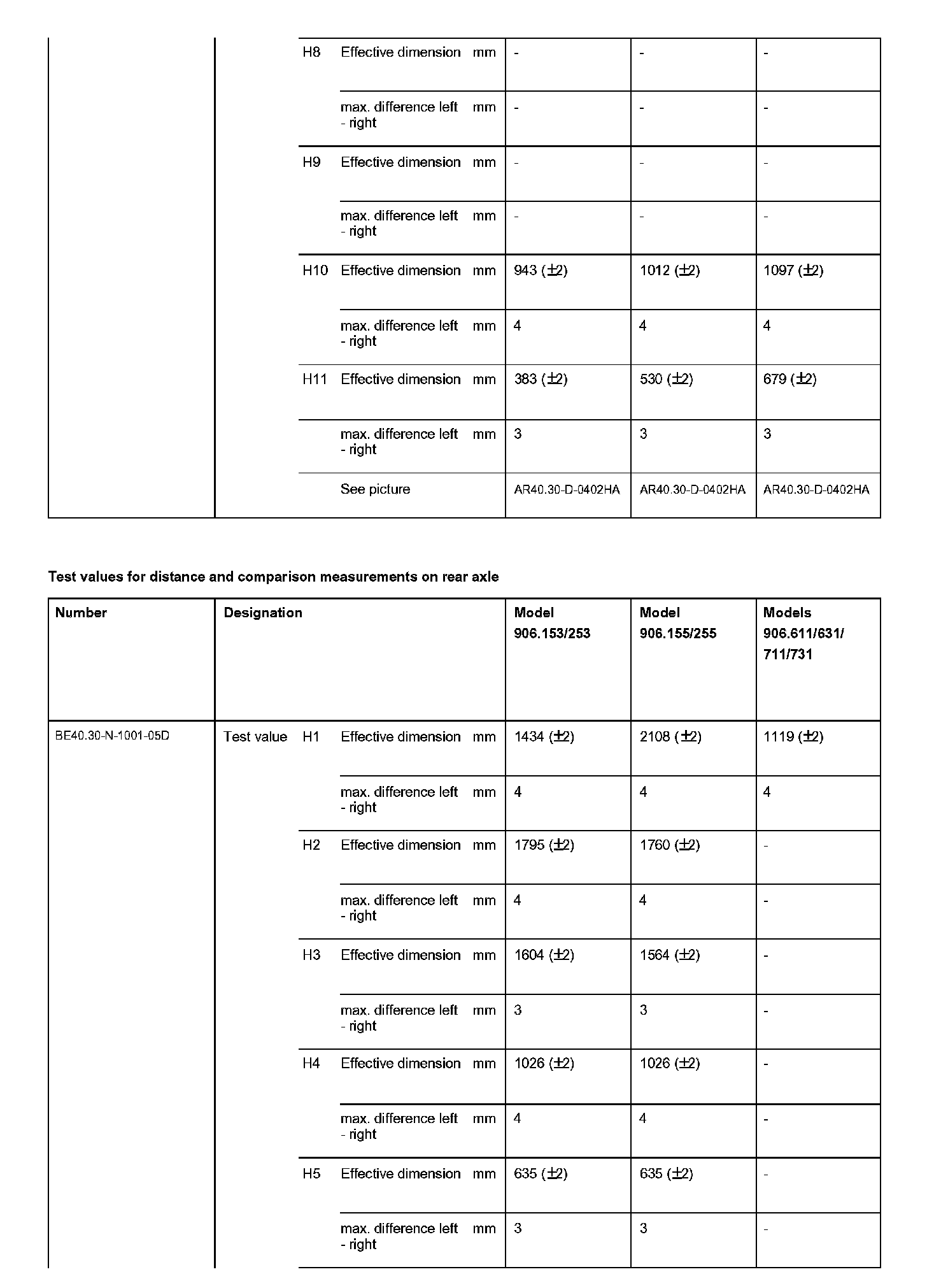

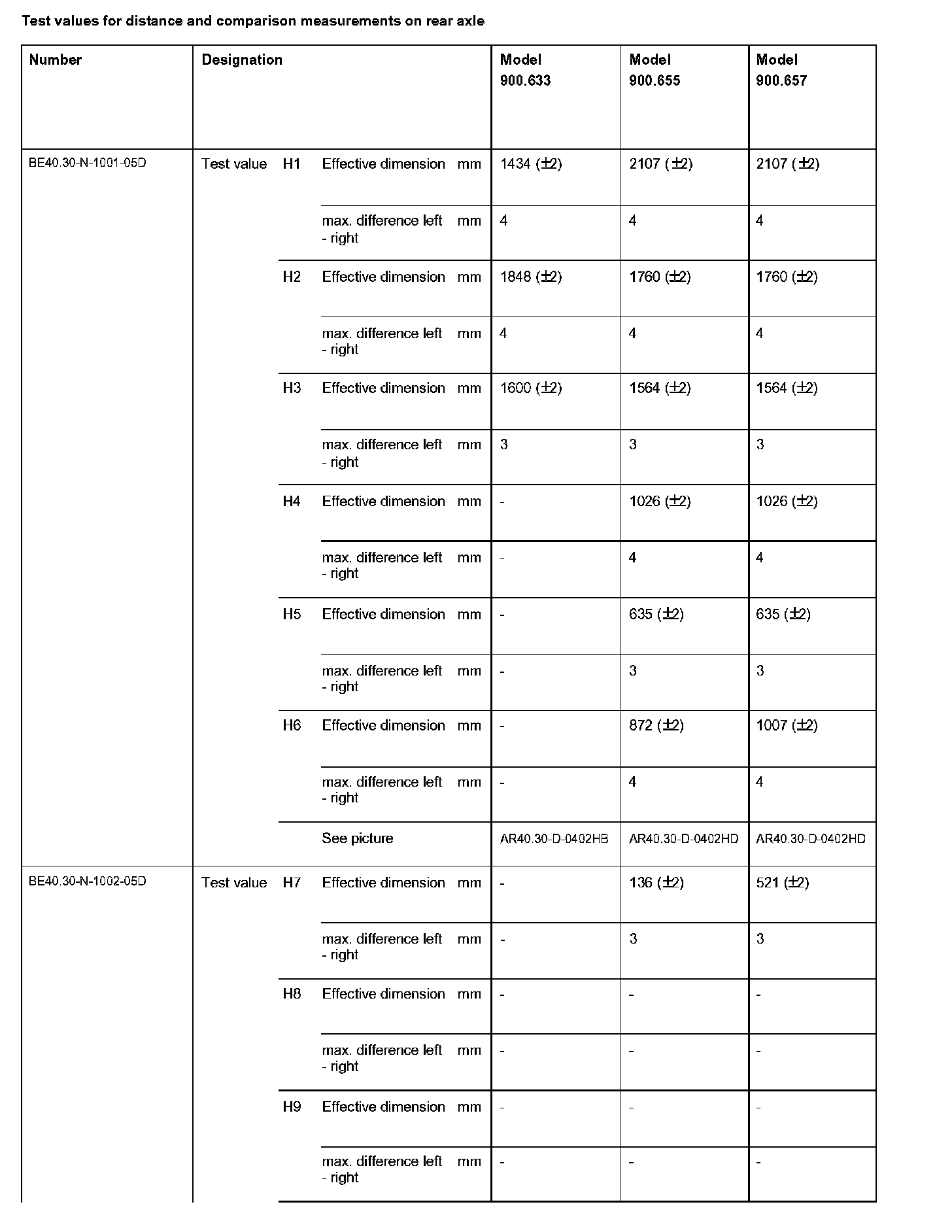

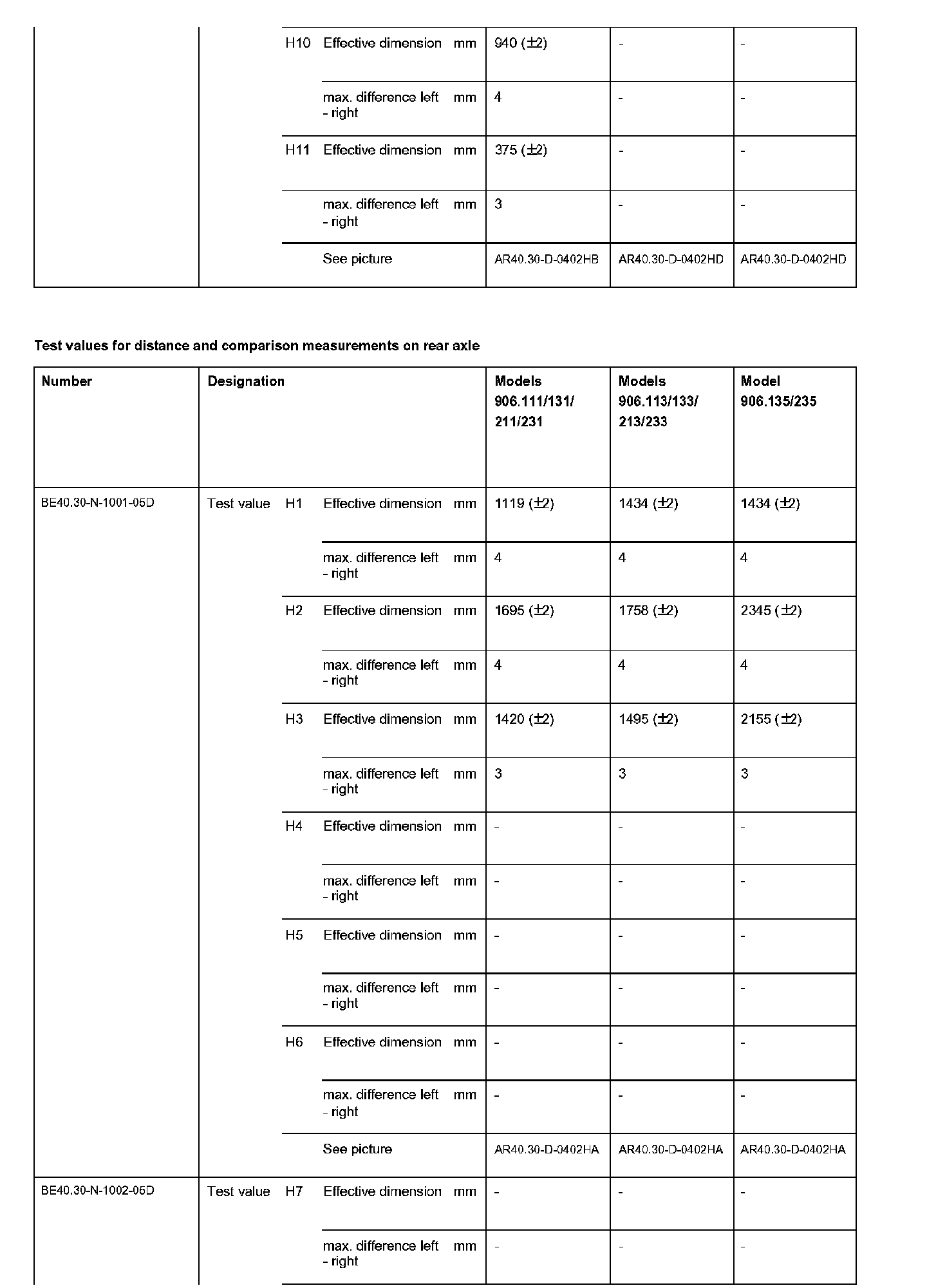

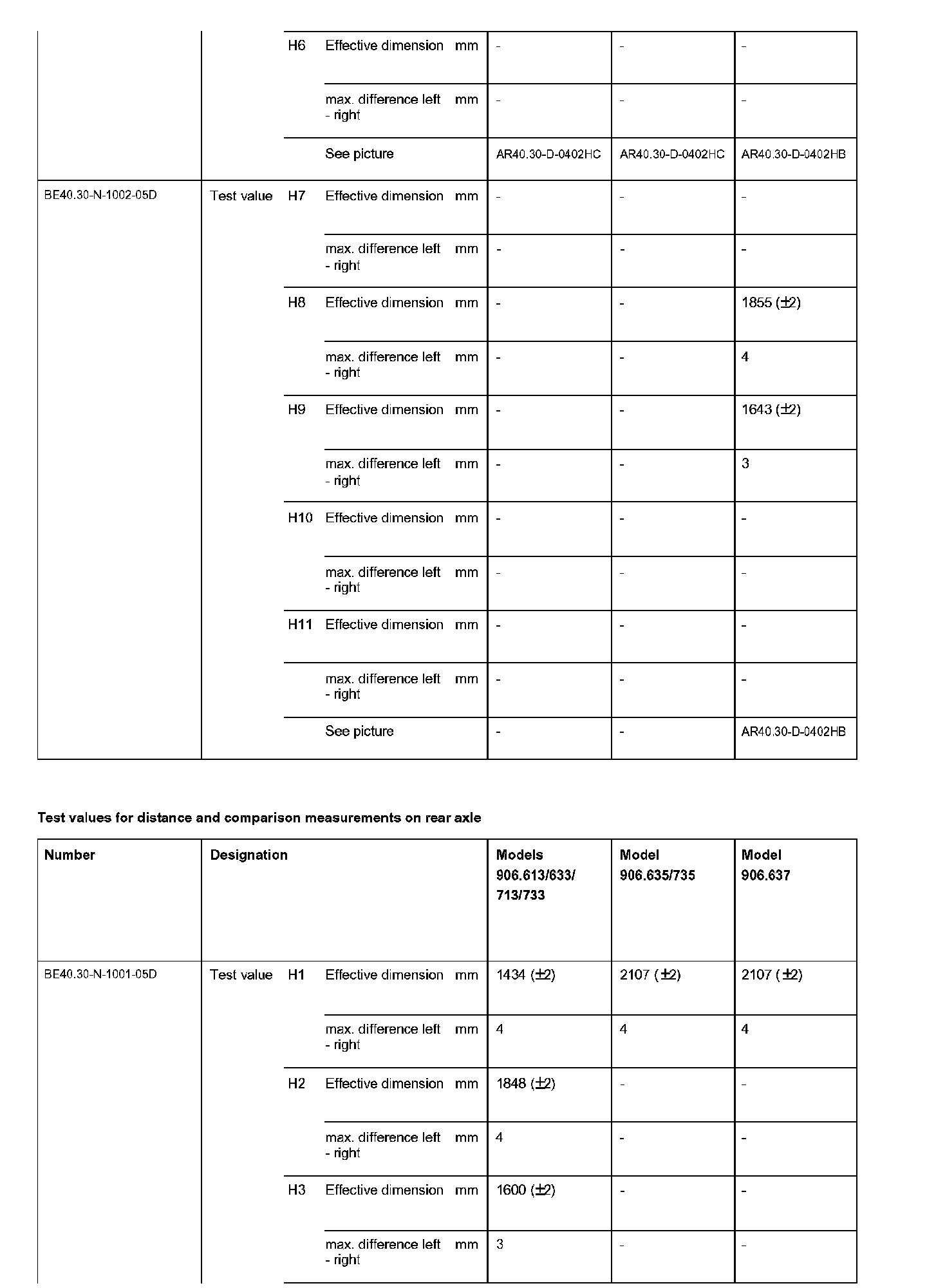

BE40.30-N-1000-05D Test Values For Distance and Comparison Measurements on Rear Axle



BE40.30-N-1000-05D Test Values For Distance and Comparison Measurements on Rear Axle
