Mercedes Benz Truck
>>
2011
>>
Sprinter 3500 Cab (906.155) V6-3.0L DSL Turbo (642.898)
>>
Repair and Diagnosis
>>
Specifications
>>
Mechanical Specifications
>>
Alignment
>>

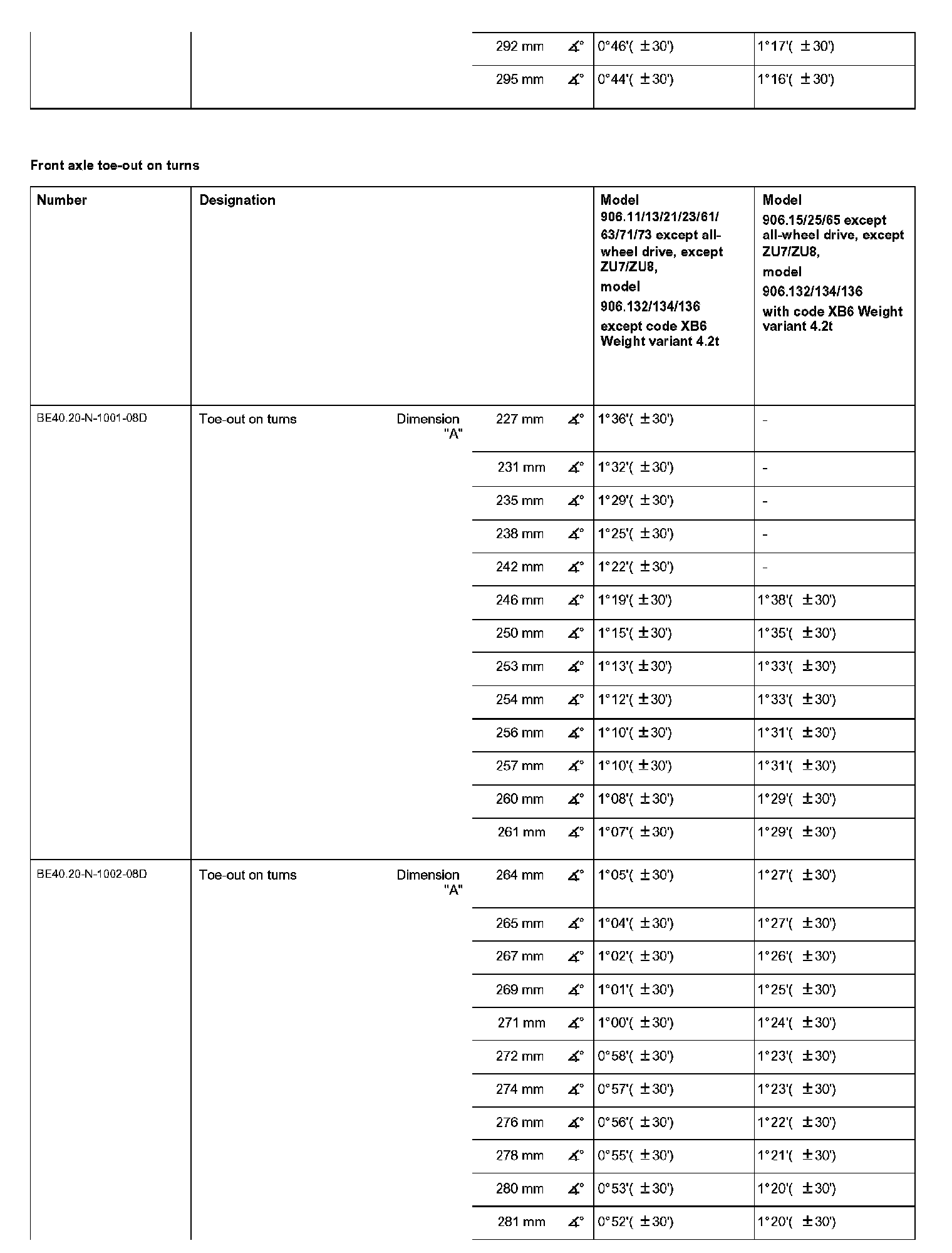

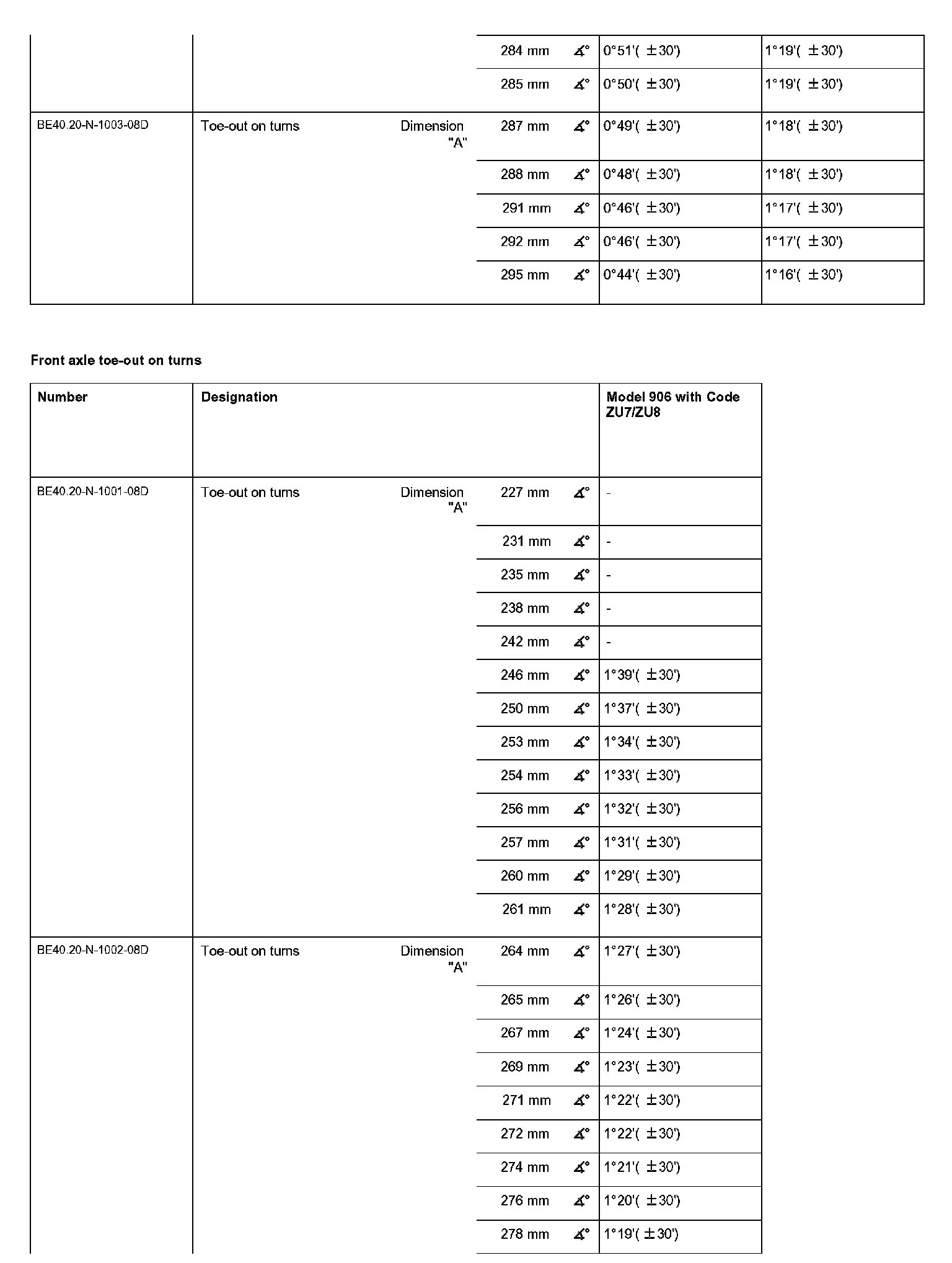

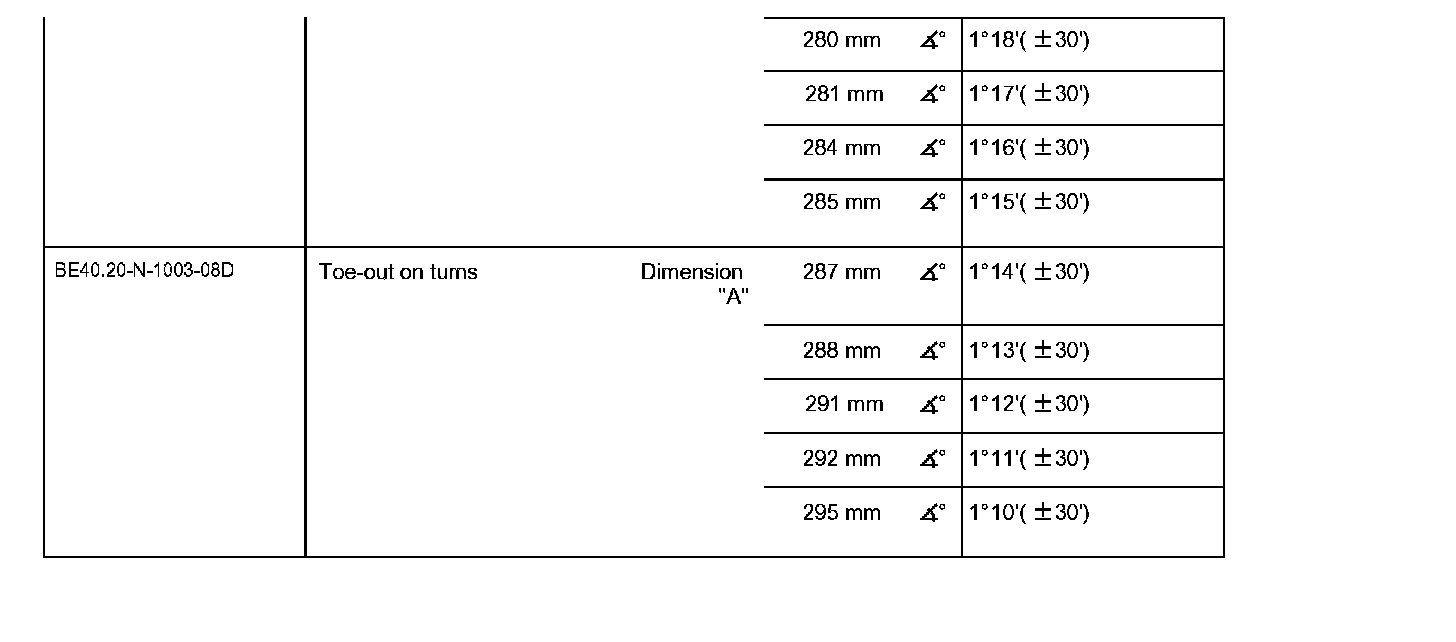

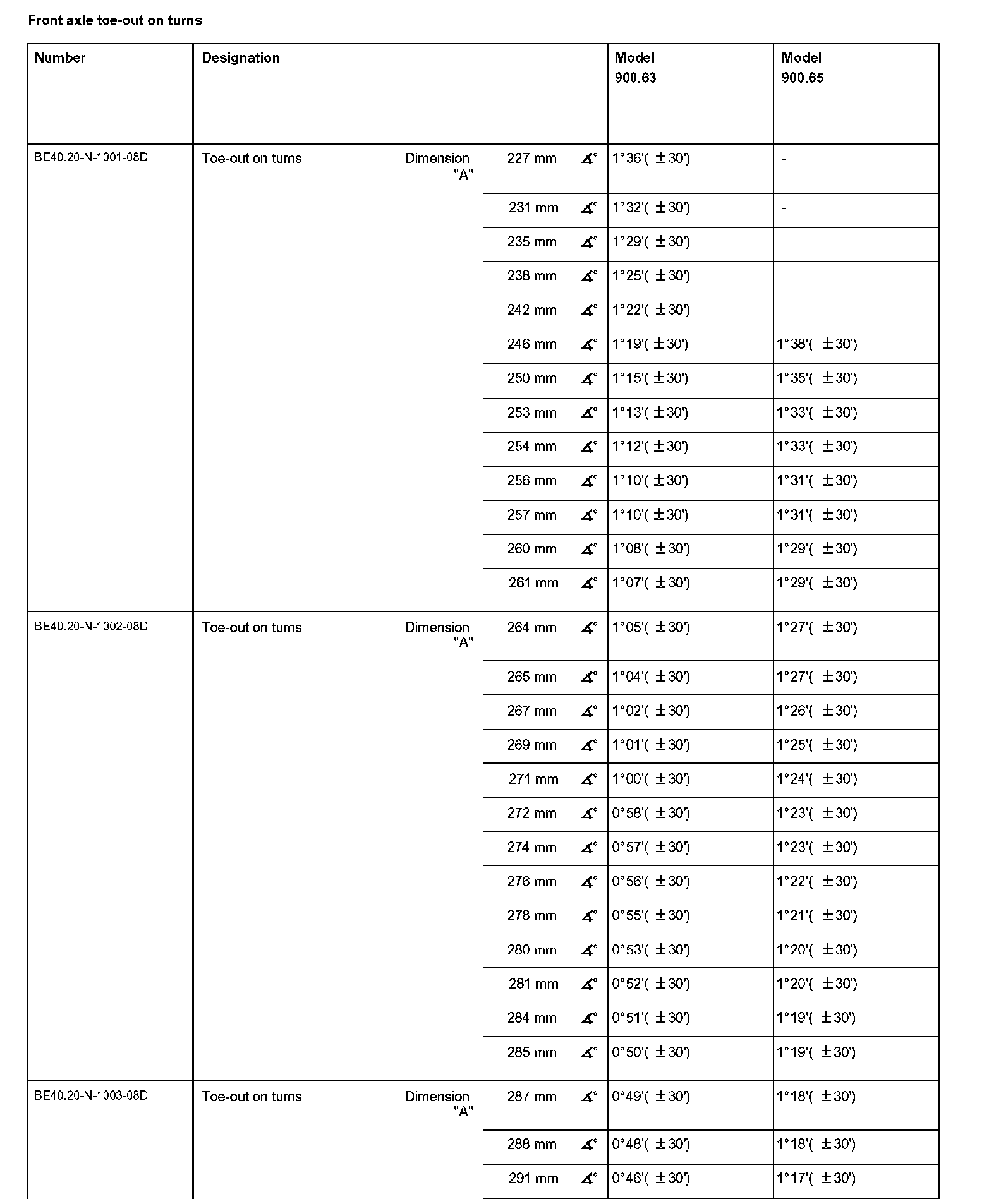

BE40.20-N-1000-08D Toe-Out on Turns
BE40.20-N-1000-08D Toe-Out on Turns
BE40.20-N-1000-08D Toe-out on Turns
model 906 except all-wheel drive
