GF54.25-D-4210HC Light Switch Module, Component Description

GF54.25-D-4210HC Light Switch Module, Component Description

- except CODE (JA5) Light/rain sensor
- except CODE (L94) No parking lights







Shown with code (L16) Halogen front fog lamps

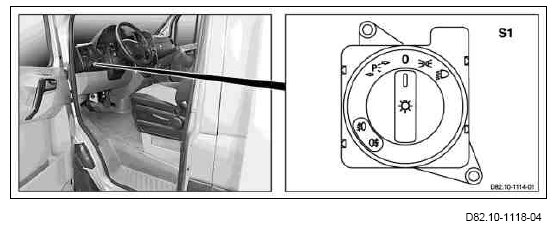

S1 Rotary light switch

Location
The light switch module is located in the left of the instrument panel next to the steering wheel. The headlamp range controller (S1/1), except code (LG1) Xenon headlamps, is integrated in the light switch module on the left next to the rotary light switch.

Task
The following components are actuated by the light switch module:
- Exterior lights (ABL) via rotary light switch
- Headlamp range adjustment (HRA [LWR]), except code (LG1) Xenon headlamps, via headlamp range controller

The rotary light switch also indicates the switching status of the front fog lamps, except code (LG1) Xenon headlamps, and the switching status of the additional front fog lamp and the switching status of the rear fog lamp (one indicator lamp for each) on vehicles with code (L16) Halogen front fog lamps.

Design
The light switch module is comprised of the following components:
- Rotary light switch
- Headlamp range controller, except code (LG1) Xenon headlamps
