Seat Belt Systems: Testing and Inspection

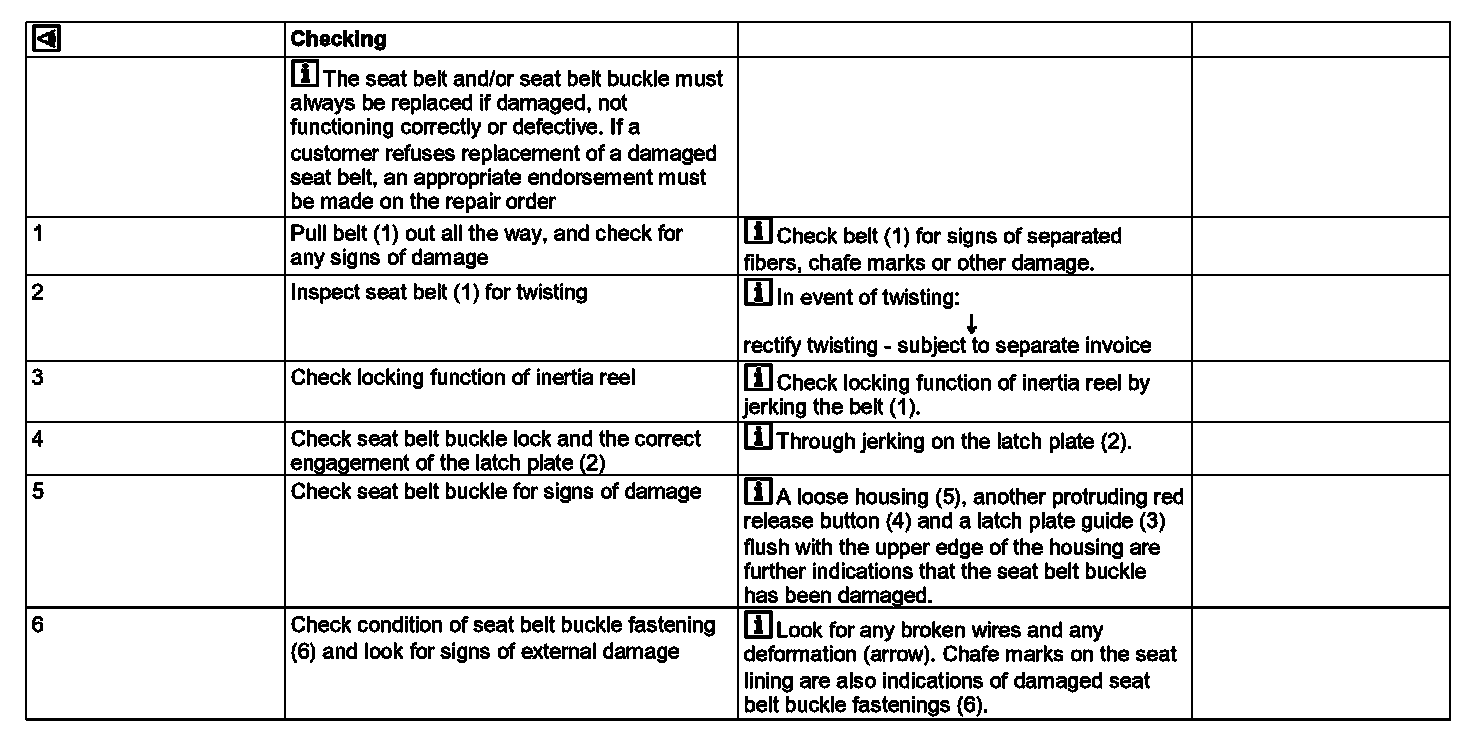

AP91.40-D-9150A Check Seat Belts And Seat Belt Buckles For External Damage And Operation

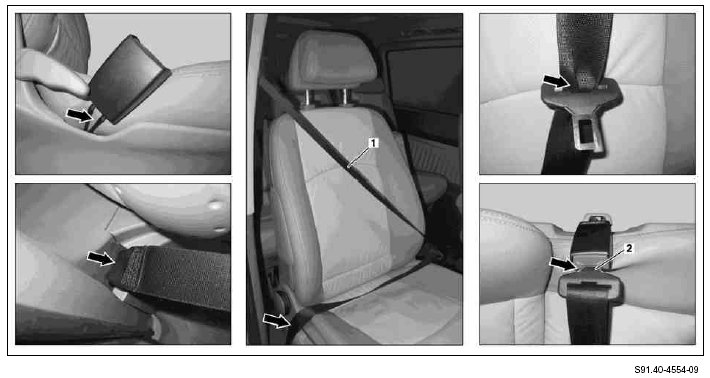

Illustrated on model 639

1 Belt
2 Latch plate










3 Buckle latch guide
4 Release button
5 Housing
6 Seat belt buckle fastening
