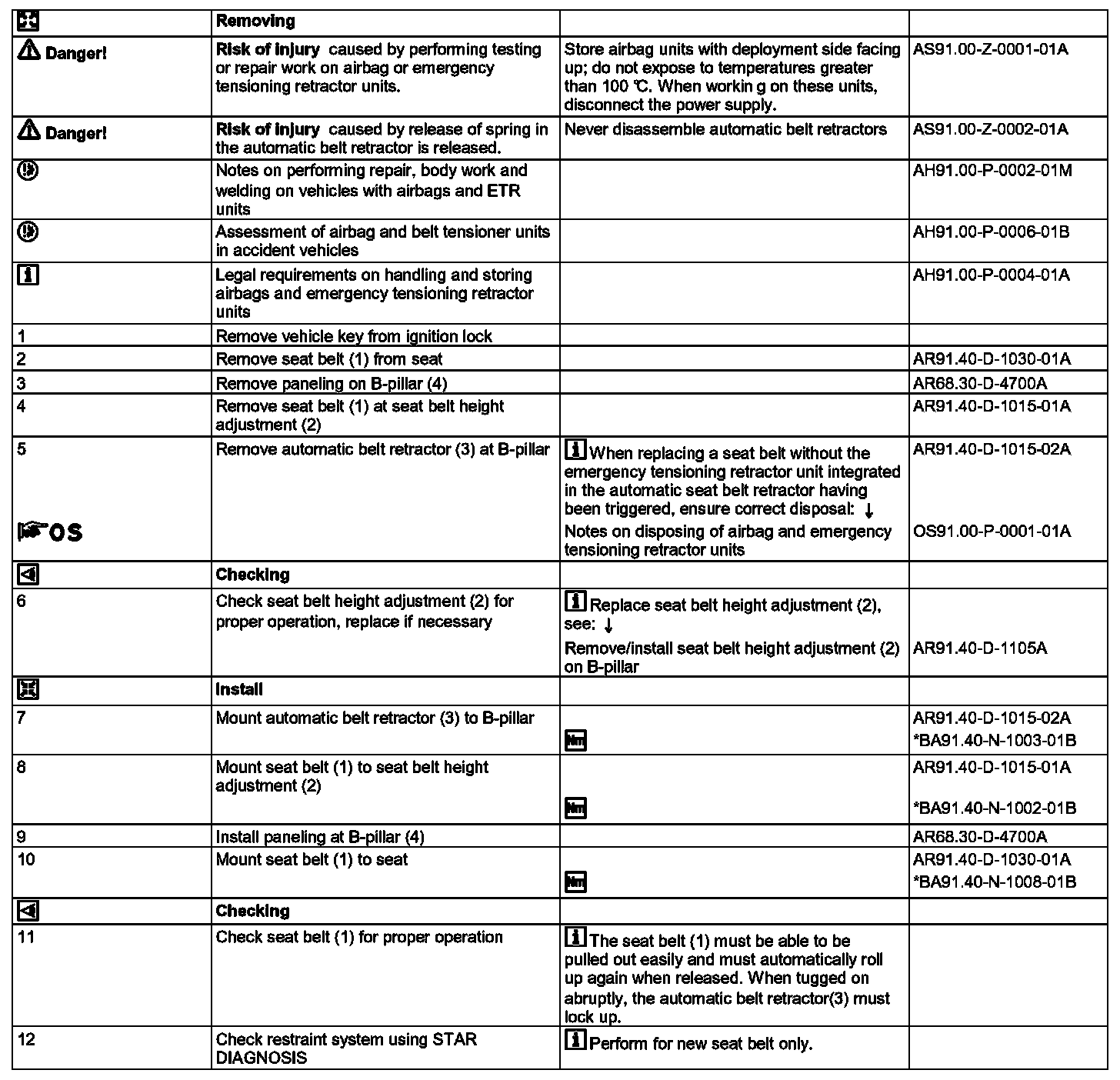

AR91.40-D-0630B Remove/Install Seat Belt With Emergency Tensioning Retractor




AR91.40-D-0630B Remove/Install Seat Belt With Emergency Tensioning Retractor











1 Seat belt
2 Seat belt height adjustment mechanism
3 Reel
4 B-pillar paneling
