Air Bag Control Module: Service and Repair

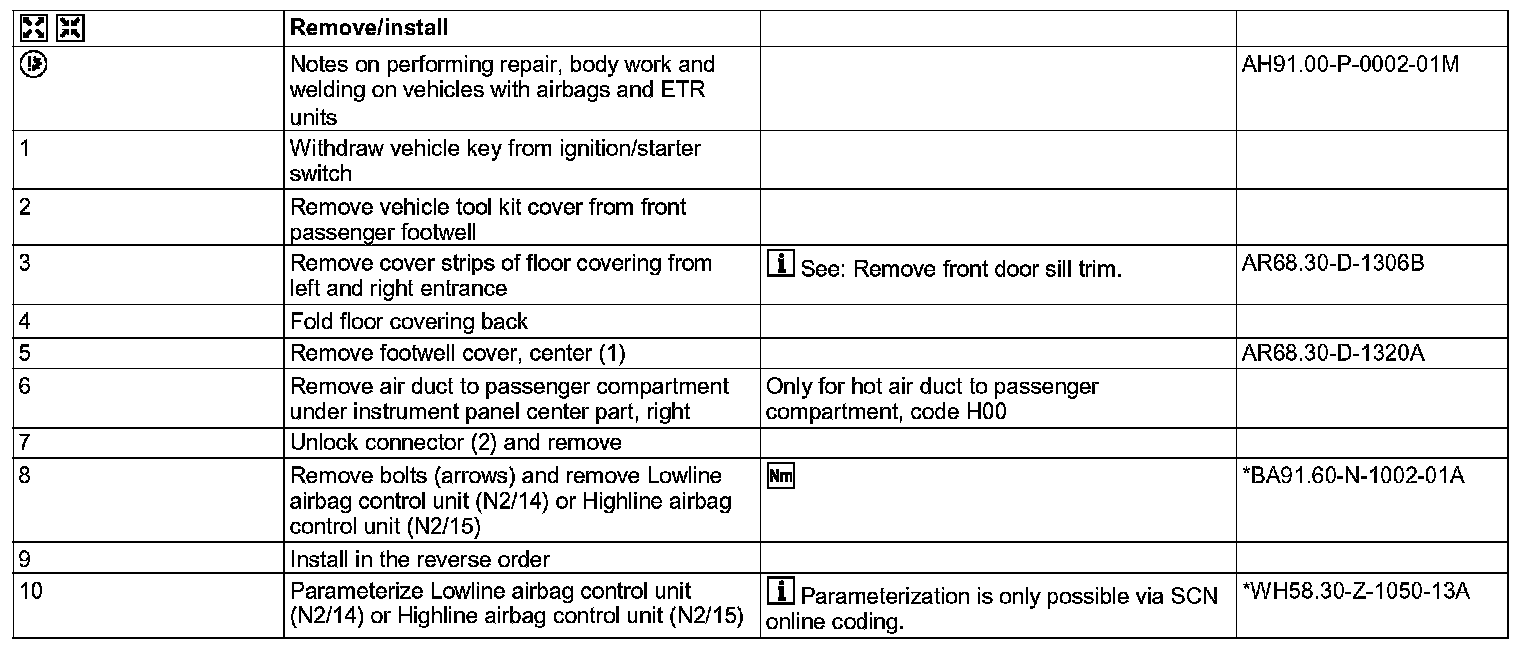

AR91.60-D-0615A Remove/Install Airbag Control Unit

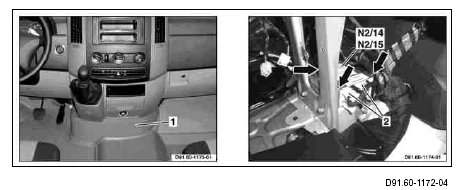

1 Footwell cover, center
2 Connector
N2/14 Lowline airbag control unit
N2/15 Highline airbag control unit
