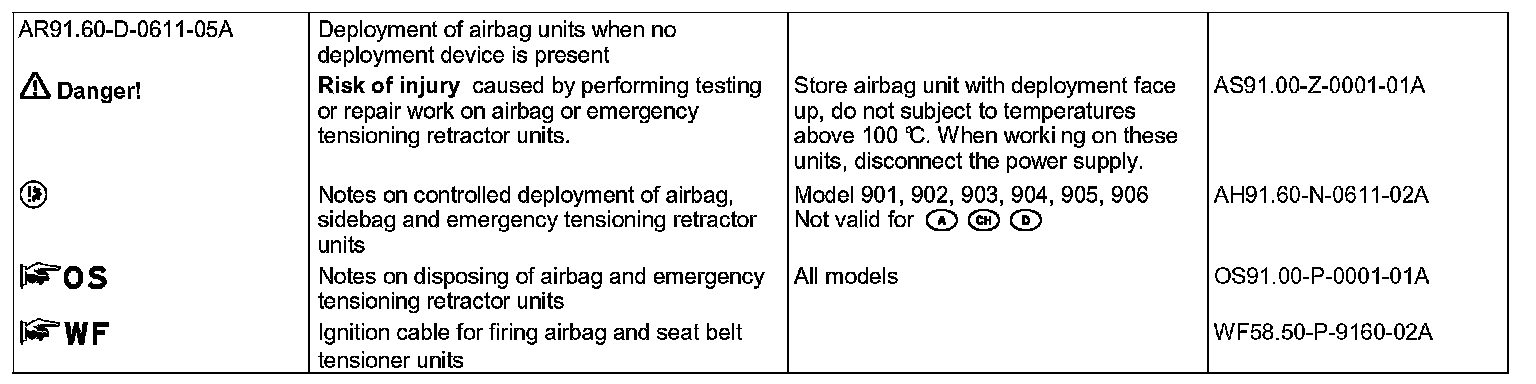

AR91.60-D-0611-05A Deployment of Airbag Units When No Deployment Device Is Present

AR91.60-D-0611-05A Deployment Of Airbag Units When No Deployment Device Is Present







Use of self-fabricated ignition cable
1. Fabricate ignition cable with a length of 10 m with pressure switch.
2. Plug the 2-pin plug connector into the relevant airbag unit.
3. Connect ignition cable to battery.
4. Press both push buttons simultaneously.
Maintain a distance of at least 10 m for safety.
For airbag units with 2 squibs, both must be deployed. To do this, repeat steps 2 through 4 after plugging the ignition cable into the second squib.
