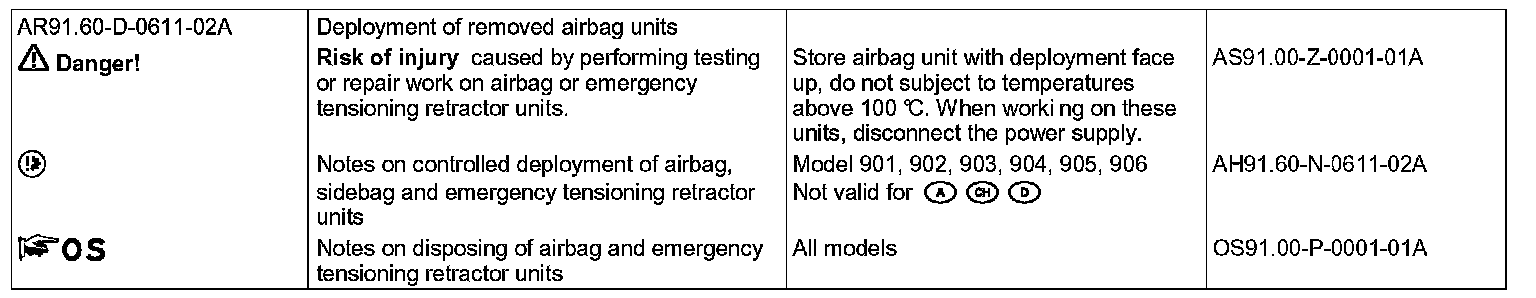

AR91.60-D-0611-02A Deployment of Removed Airbag Units

AR91.60-D-0611-02A Deployment Of Removed Airbag Units












2 Pressure switch, battery control
3 Pressure switch, deployment
4 Rotary switch
5 Indicator lamp, deployment
7 Plug connector, adapter cable
8 2-pin plug connector

Using the deployment device

1. Plug the 2-pin plug connector (8) into the airbag unit to be scrapped.
2. Move rotary switch (4) to position "1".
3. Press the battery control pressure switch (2) and deployment pressure switch (3) simultaneously.
Maintain a distance of at least 10 m for safety.
After a successful deployment, the deployment indicator lamp (5) flashes.
For airbag units with 2 squibs, both must be deployed. To do this, repeat steps 1 through 3 after plugging the ignition cable into the second squib.
