GF91.60-D-4034H Sidebag Sensor, Component Description

GF91.60-D-4034H Side bag Sensor, Component Description

- with CODE (SH6) Thorax bag for driver (in seat backrest)

- with CODE (SH7) Thorax bag for driver and front passenger (in seat backrest)

- with CODE (SH9) Window bag for driver and front passenger

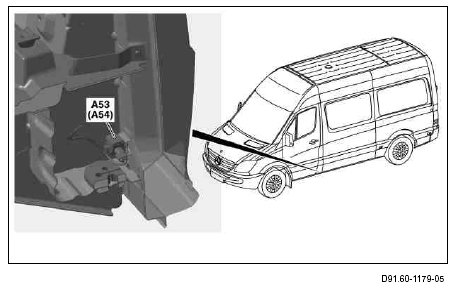

Illustrated on model 906.7

A53 Driver Side bag sensor
A54 Front passenger Side bag sensor

Location

The driver Side bag sensor and the front passenger Side bag sensor are located in the B-pillars on the lower left and right in the direction of travel.

Task

The driver Side bag sensor and the front passenger Side bag sensor record the acceleration or deceleration acting in the transverse direction on the vehicle in the event of a side impact and trigger a plausibility check in the Highline airbag control unit (N2/15). If the data is plausible, a trigger signal is sent to the thorax bags and window bags.
