Removal and Replacement

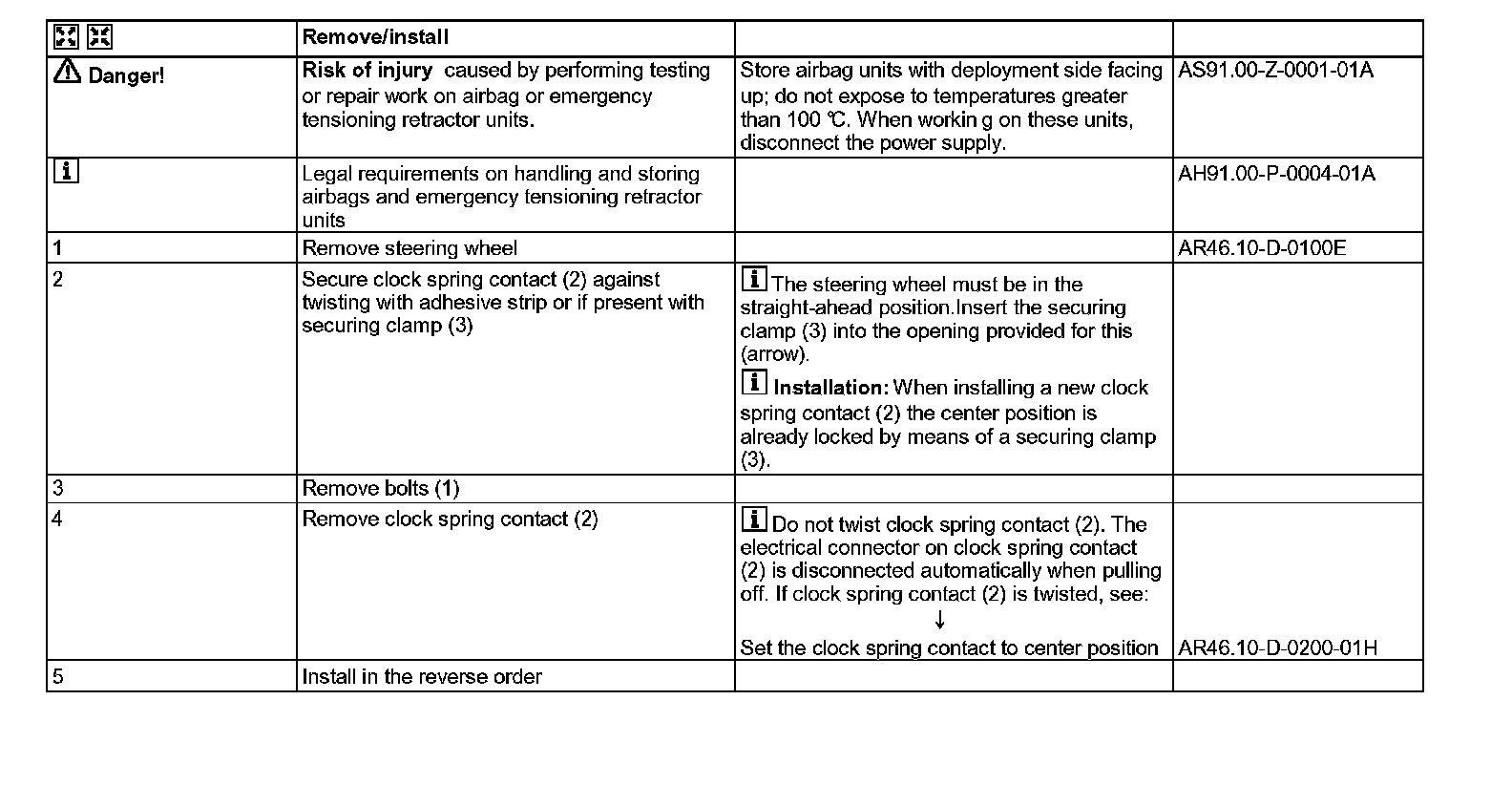

AR46.10-D-0200H Remove/Install Clock Spring Contact






1 Bolts
2 Clock spring contact
3 Securing clamp
