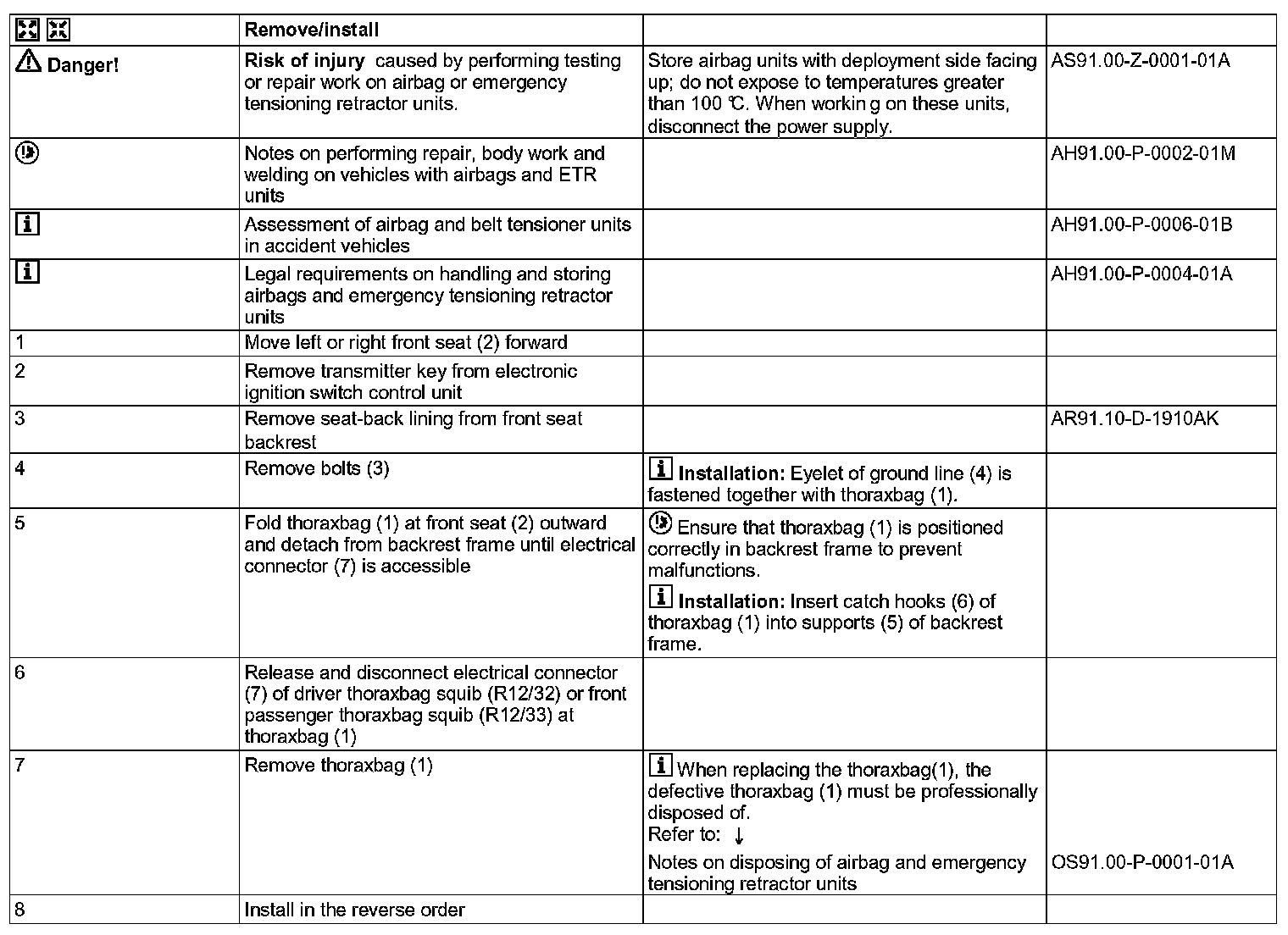

AR91.60-D-0695AK Remove/Install Front Seat Side Bag Unit

AR91.60-D-0695AK Remove/Install Front Seat Side bag Unit

- with CODE (SH6) Thorax bag for driver (in seat backrest)
- with CODE (SH7) Thorax bag for driver and front passenger (in seat backrest)

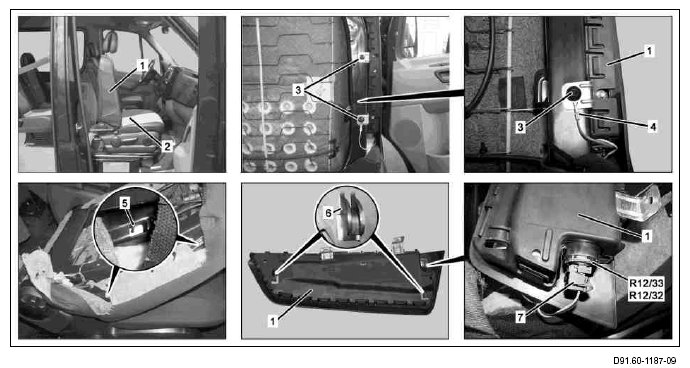

1 Thorax bag
2 Front seat
3 Bolts
4 Ground cable
5 Mount
6 Catch hook
7 Electrical connector
R12/32 Driver thorax bag squib
R12/33 Passenger thorax bag squib
