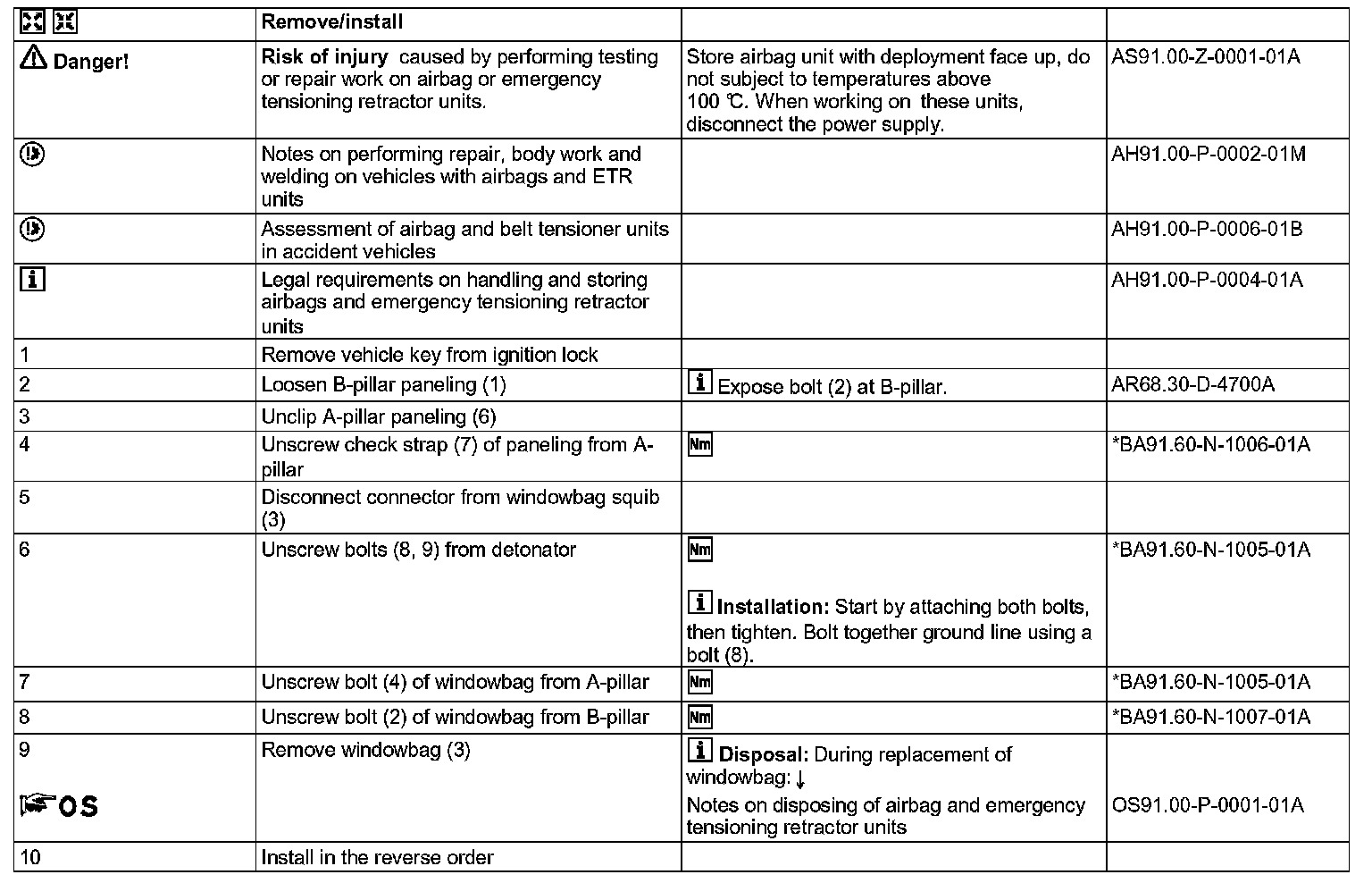

AR91.60-D-0693B Removing, Installing Window bag

AR91.60-D-0693B Removing, Installing Window bag

- with CODE (SH9) Window bag for driver and front passenger







1 B-pillar paneling
2 Bolt
3 Window bag
4 Bolt
5 Check strap for blind rivet nut
6 A-pillar paneling
7 Check strap
8 Bolt
9 Bolt
