Suspension Control Module: Service and Repair

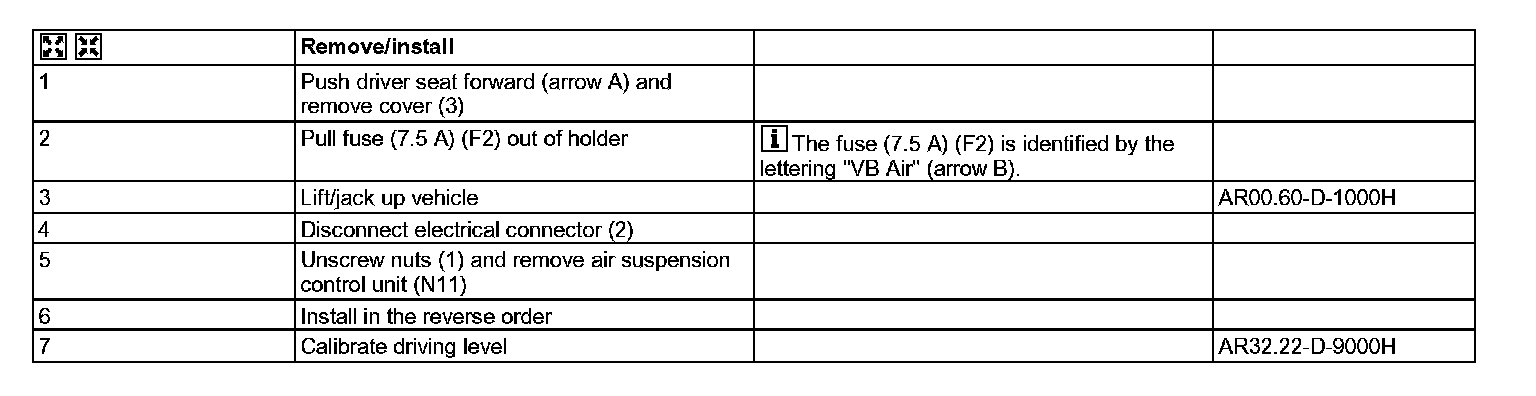

AR32.22-D-6000H Remove/Install Air Suspension Control Unit
- MODEL 906.13 /23 /63 /73 with REAR AXLE 741.412 /415
- with CODE (PL9) Air suspension, company VB-Airsuspension
- MODEL 906.15 /25 /65 with REAR AXLE 741.413 /414 /416 /420
- with CODE (PL9) Air suspension, company VB-Airsuspension

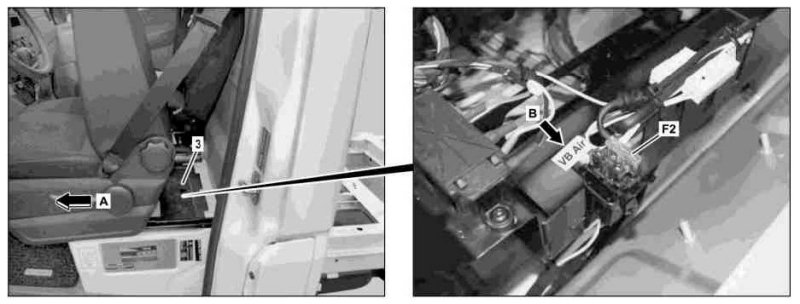

3 Cover
F2 Fuse (7.5 A)

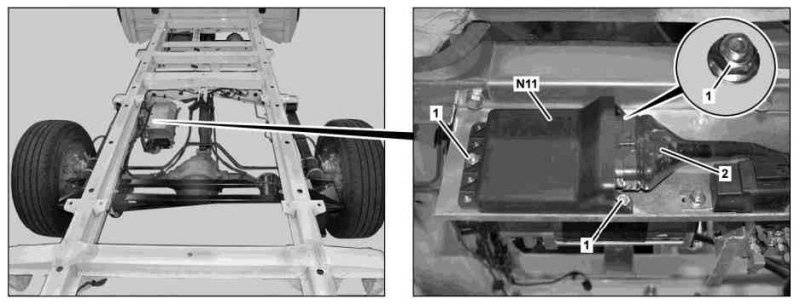

Shown on model 906.13

1 Nut
2 Electrical connector
N11 Air suspension control unit
