Glow Plug Control Module: Service and Repair

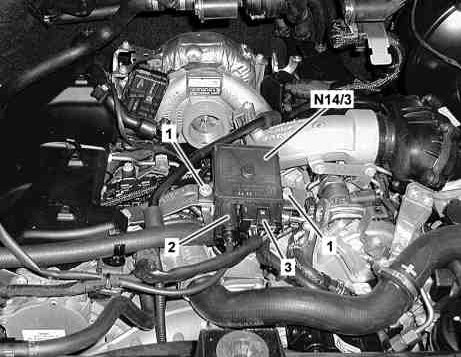

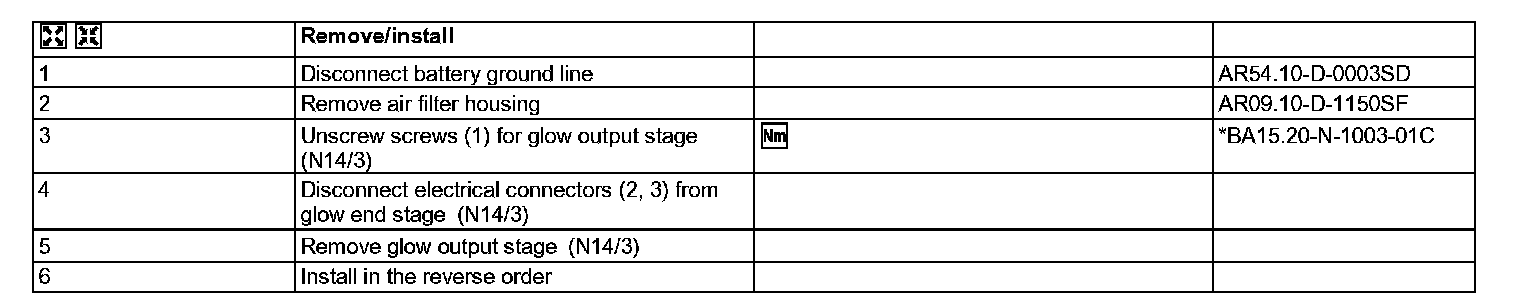

AR15.20-D-4500SG Remove/Install Glow Output Stage






1 Screw
2 Electrical connector
3 Electrical connector

N14/3 Glow output stage
