Glow Plug: Service and Repair

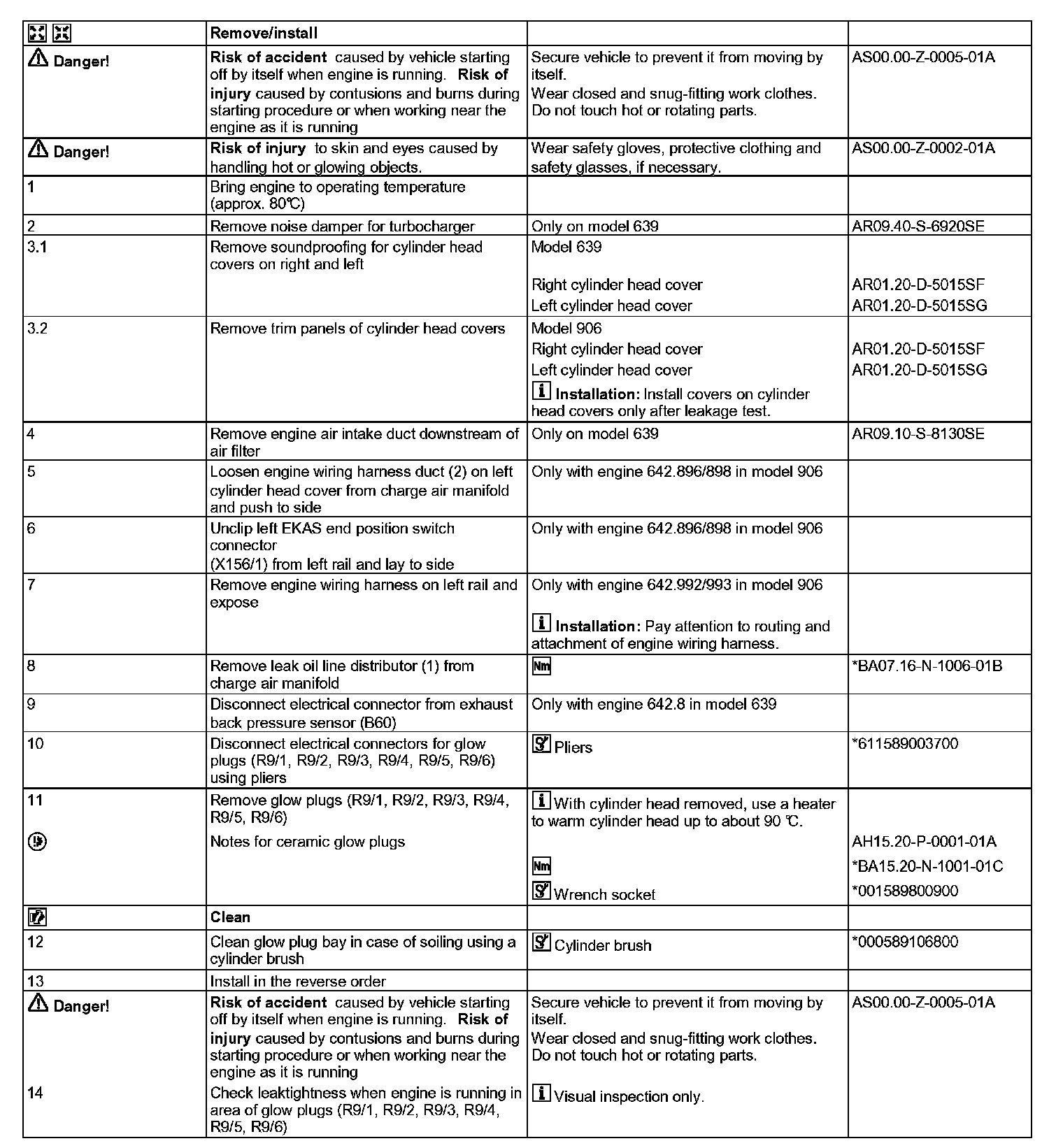

AR15.20-S-4111SE Remove/Install Glow Plugs







Shown on engine 642 in model 639

1 Distributor leak oil line

R9/1 Cylinder 1 glow plug
R9/2 Cylinder 2 glow plug
R9/3 Cylinder 3 glow plug
R9/4 Cylinder 4 glow plug
R9/5 Cylinder 5 glow plug
R9/6 Cylinder 6 glow plug





Shown on ENGINE 642 in MODEL 906

1 Distributor leak oil line
2 Engine wiring harness duct

R9/1 Cylinder 1 glow plug
R9/2 Cylinder 2 glow plug
R9/3 Cylinder 3 glow plug
R9/4 Cylinder 4 glow plug
R9/5 Cylinder 5 glow plug
R9/6 Cylinder 6 glow plug
X156/1 Left EKAS end position switch connector (on engine 642.896/898 in model 906)

















000 589 10 68 00
Cylinder brush





001 589 80 09 00
Socket wrench





611 589 00 37 00
Pliers
