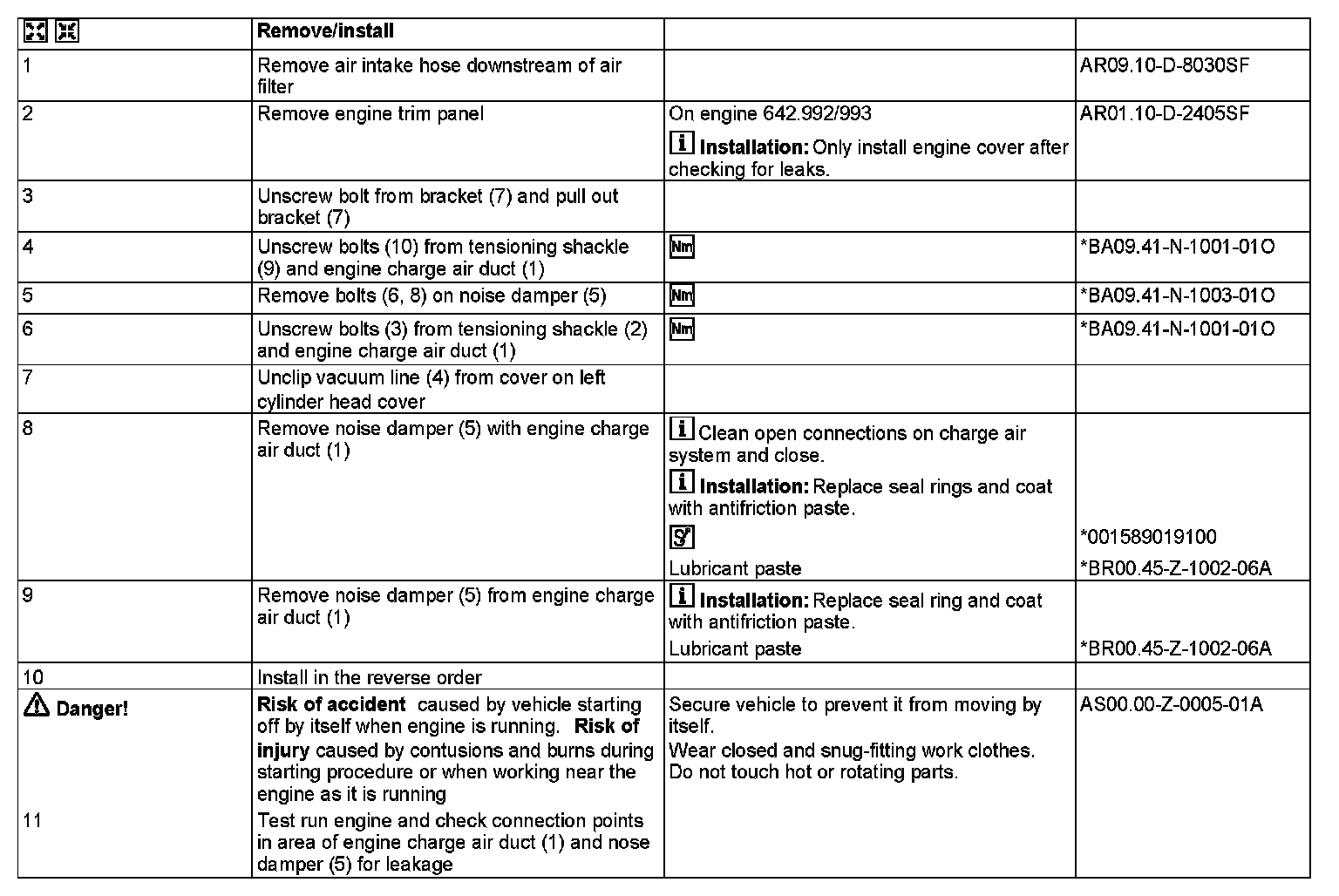

AR09.40-D-6920SG Remove/Install Turbocharger Silencer

AR09.40-D-6920SG Remove/install Turbocharger Silencer


Shown on engine 642.896







1 Engine charge air duct
2 Tensioning shackle
3 Screw
4 Vacuum line
5 Noise damper
6 Screw
7 Bracket
8 Bolts
9 Tensioning shackle
10 Bolts











001 589 01 91 00, Set of protective covers
