AR09.40-D-6020SG Remove/Install Turbocharger

AR09.40-D-6020SG Remove/install Turbocharger

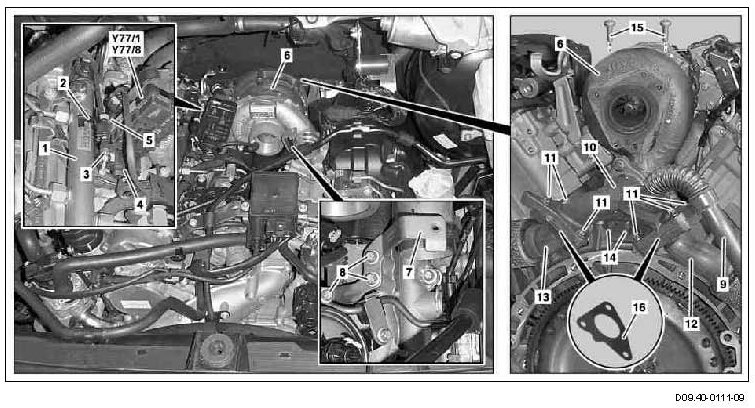

Shown on engine 642.896







1 Rail
2 Bracket
3 Electrical connector (engine 642.896/898)
4 Electrical connector
5 Electrical line (engine 642.896/898)
6 Turbocharger
7 Support brace
8 Bolts
9 Rear exhaust gas recirculation pipe
10 Exhaust collector pipe
11 Bolts
12 Exhaust manifold on the right
13 Exhaust manifold on the left
14 Bolts
15 Bolts
16 Gasket
Y77/1 Charge air actuator (engine 642.993)
Y77/8 Charge air actuator (engine 642.896/898)







6 Turbocharger
10 Exhaust collector pipe

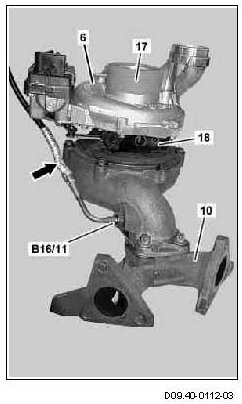

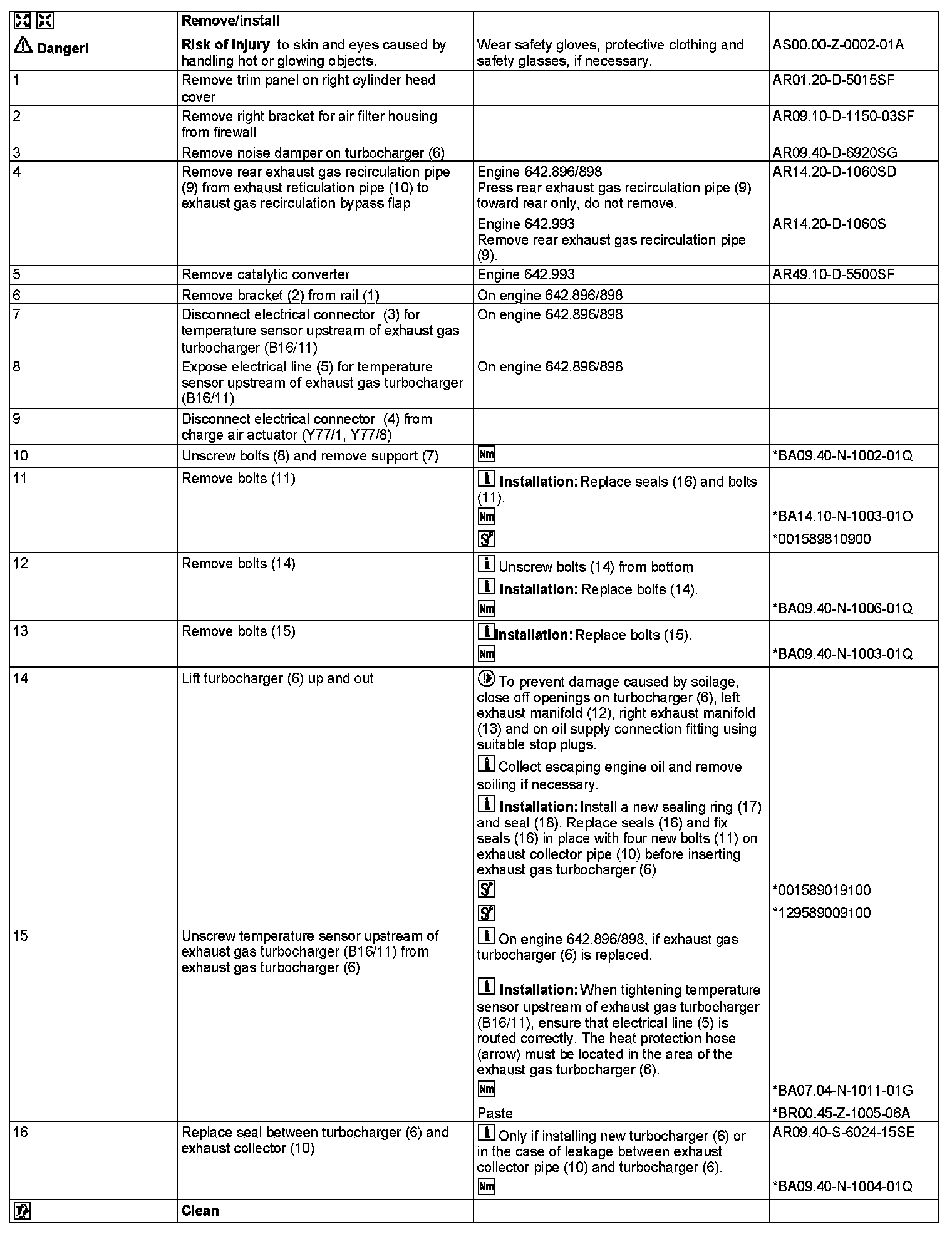

17 Sealing ring
18 Gasket
B16/11 Temperature sensor upstream of exhaust gas turbocharger (engine 642.896/898)



























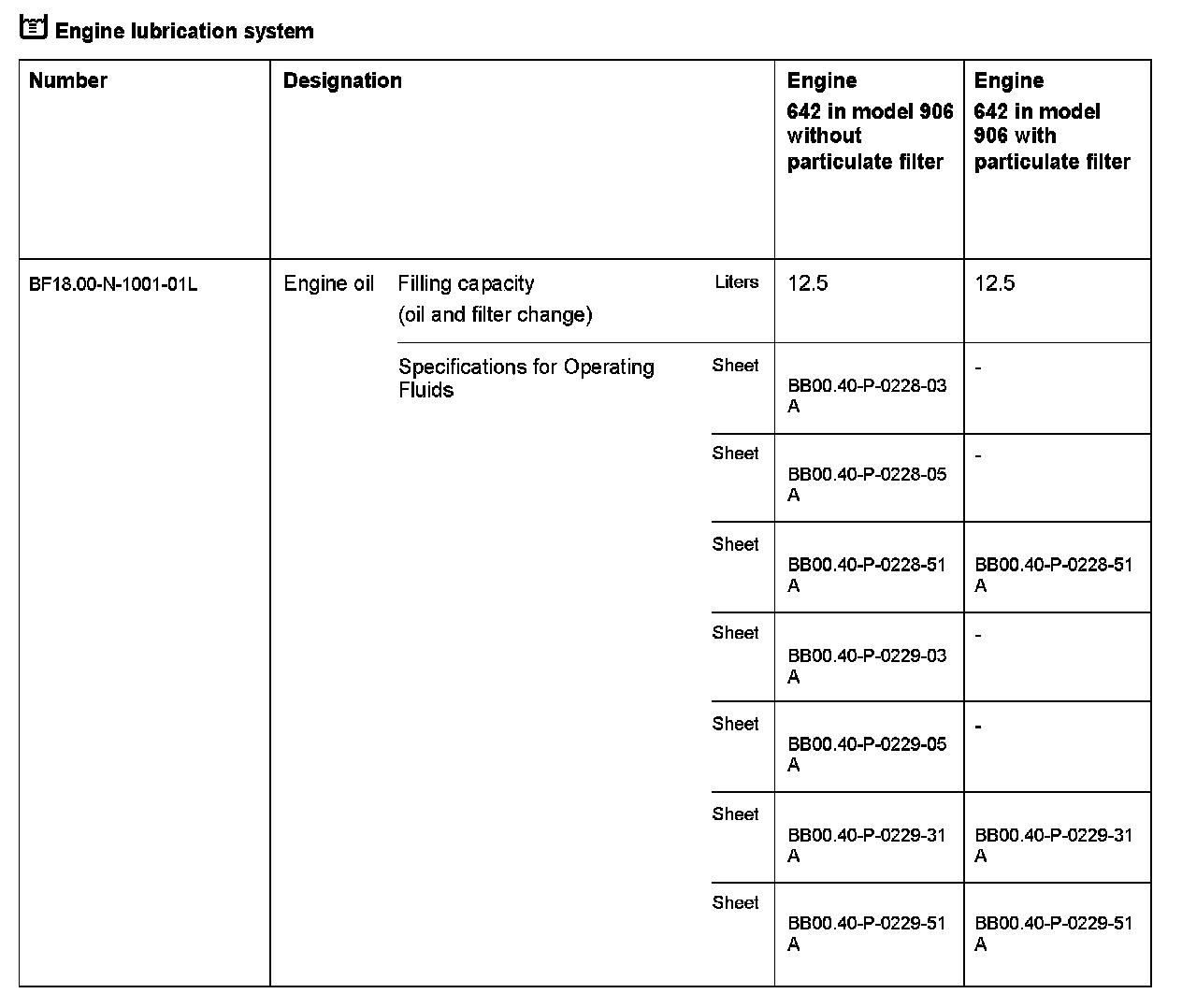

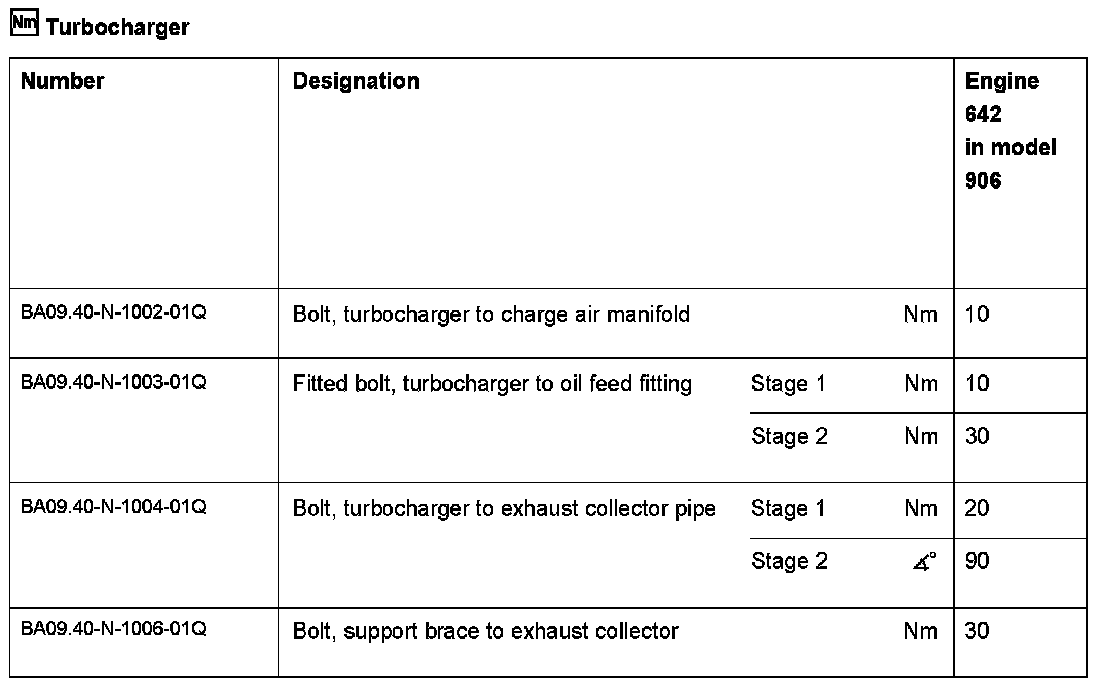

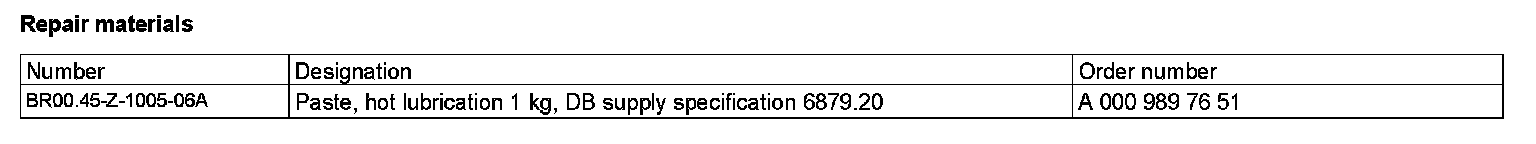

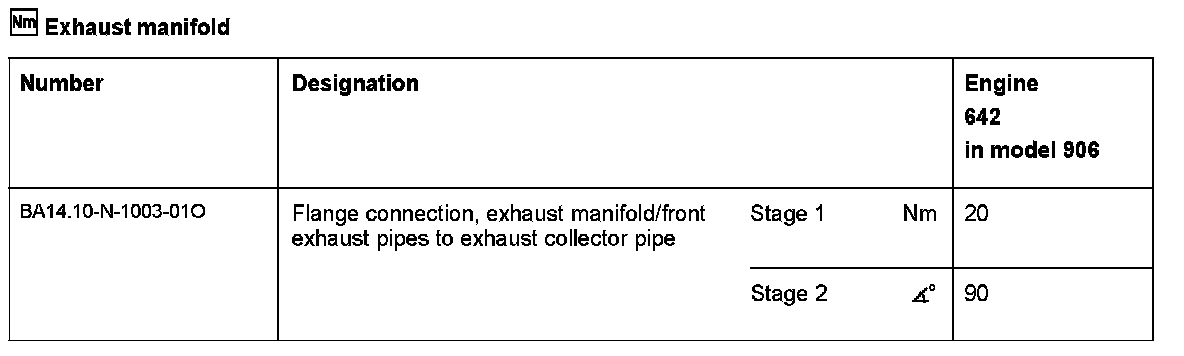

001 589 01 91 00, Set of protective covers







001 589 81 09 00, Flexible head wrench set.







129 589 00 91 00, Set of stop plugs
