Removal and Replacement

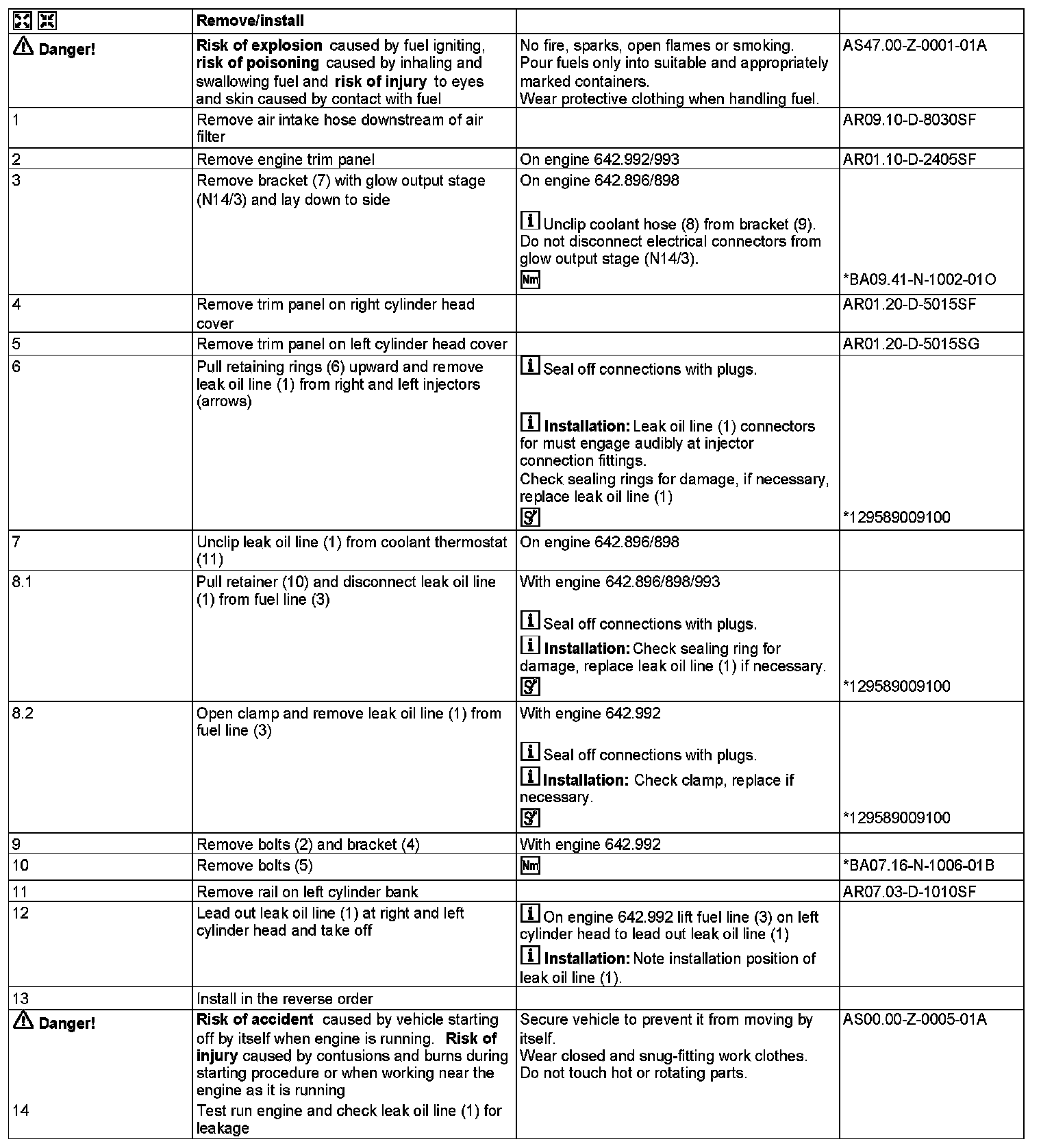

AR07.03-D-9105SF Remove/install Leak Oil Line To Injectors


Shown on engine 642.992







1 Leak oil line
2 Screw (engine 642.992)
3 Fuel pipe
4 Bracket (engine 642.992)
5 Bolts

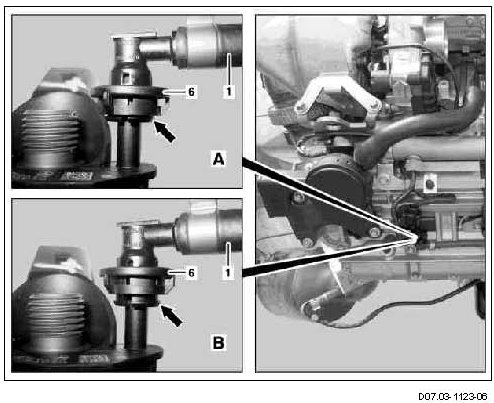

1 Leak oil line
6 Circlip
A Retaining ring engaged
B Retaining ring not engaged


Only on engine 642.896/898







1 Leak oil line
3 Fuel pipe
7 Bracket
8 Coolant hose
9 Bracket
10 Fuse
11 Coolant thermostat
N14/3 Glow output stage















129 589 00 91 00, Set of stop plugs
