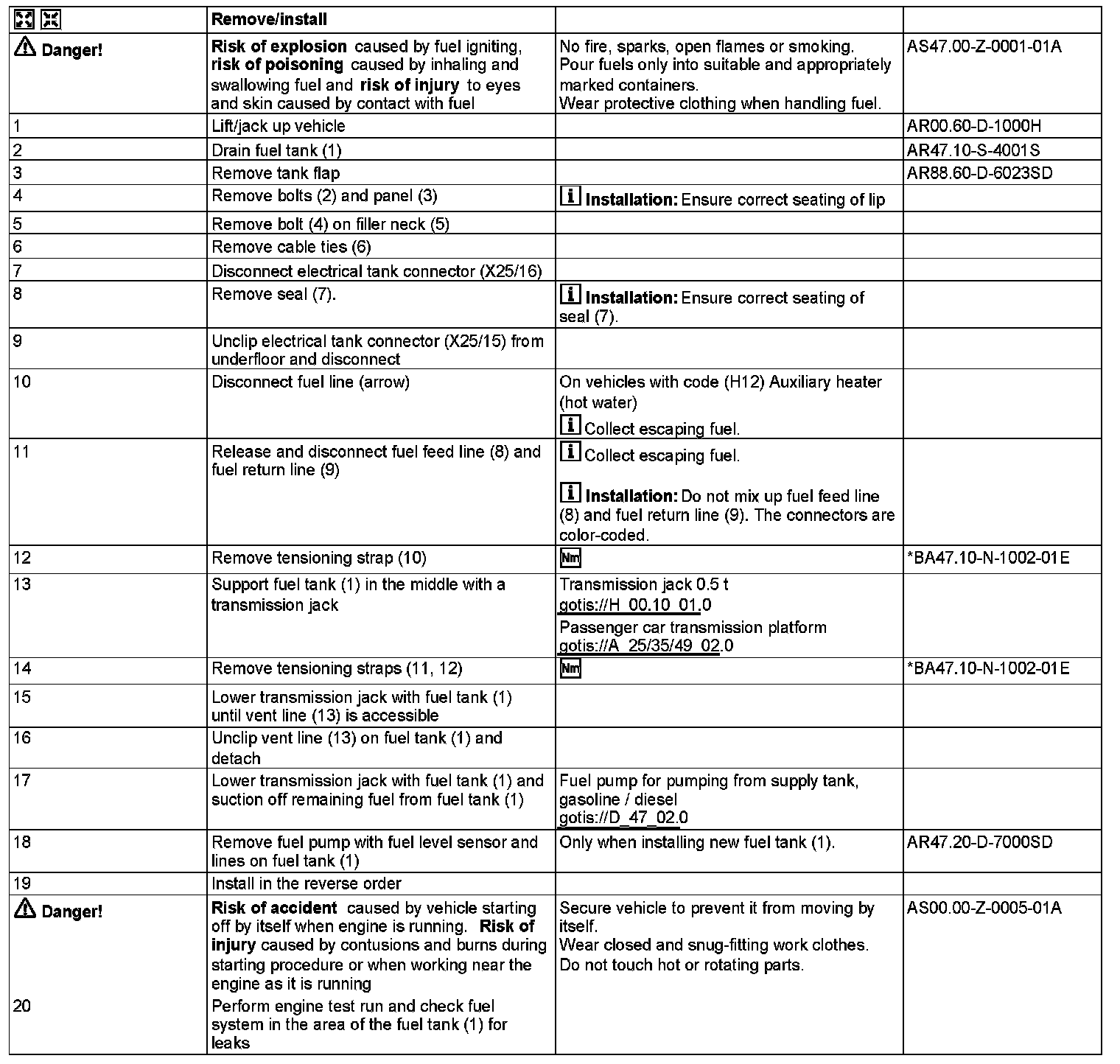

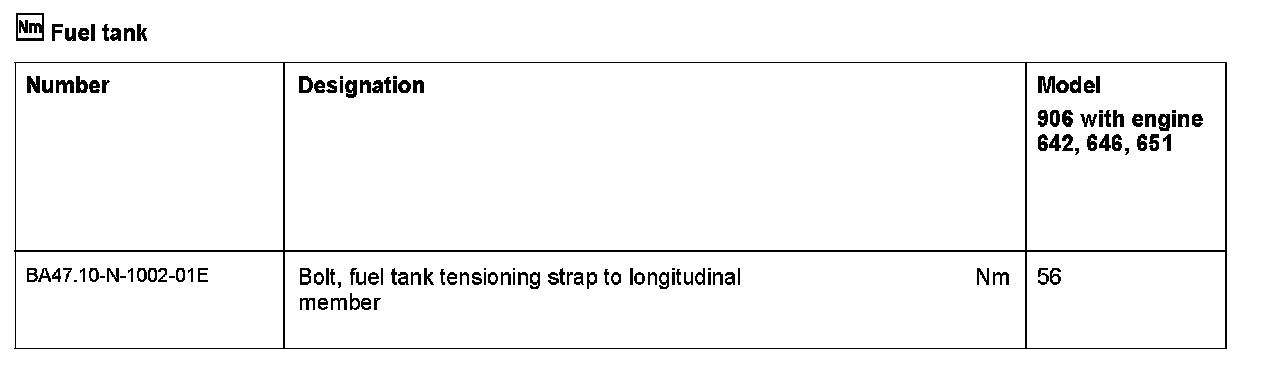

AR47.10-D-4100SD Remove/Install Fuel Tank

AR47.10-D-4100SD Remove/install Fuel Tank

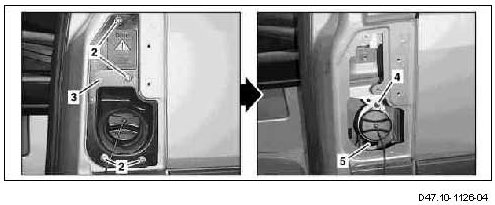

2 Bolts
3 Trim
4 Screw
5 Filler neck

Shown on vehicle with code (H12) Auxiliary heater (warm water)

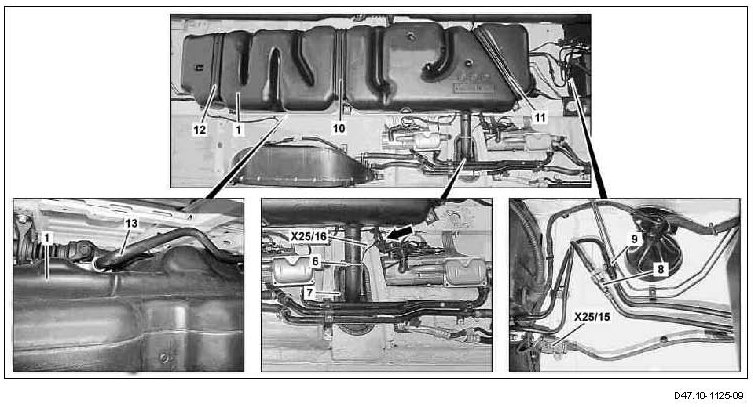

1 Fuel tank
6 Cable tie
7 Sealing
8 Fuel feed line
9 Fuel return line
10 Tensioning strap
11 Tensioning strap
12 Tensioning strap
13 Vent line
X25/15 Tank connector
X25/16 Tank connector
