Fuel Injector: Service and Repair

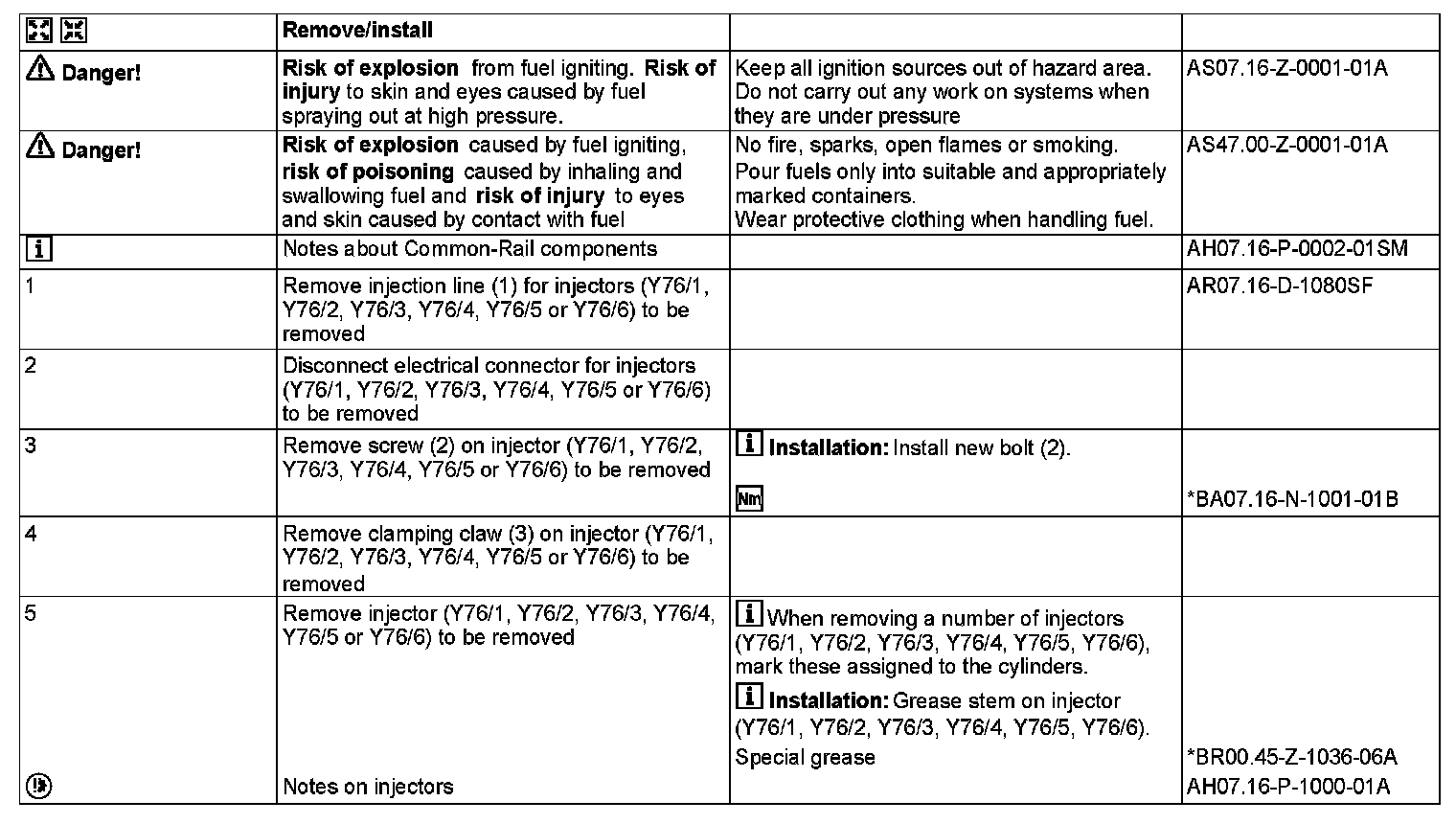

AR07.16-D-1000SF Remove/install Injectors

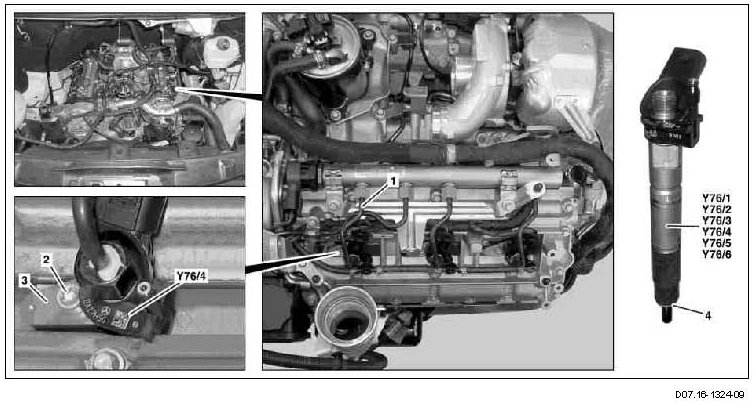

Shown on engine 642.992 and injector, cylinder 4







1 Injection line
2 Bolt
3 Clamping claw
4 Sealing ring
Y76/1 Injector, cylinder 1
Y76/2 Injector, cylinder 2
Y76/3 Injector, cylinder 3
Y76/4 Injector, cylinder 4
Y76/5 Injector, cylinder 5
Y76/6 Injector, cylinder 6















611 589 00 68 00, Round brush







668 589 00 68 00, Cylinder brush
