Fuel Injector Line: Service and Repair

AR07.16-D-1080SF Remove/install Injection Lines Of Common Rail Diesel Injection (CDI)

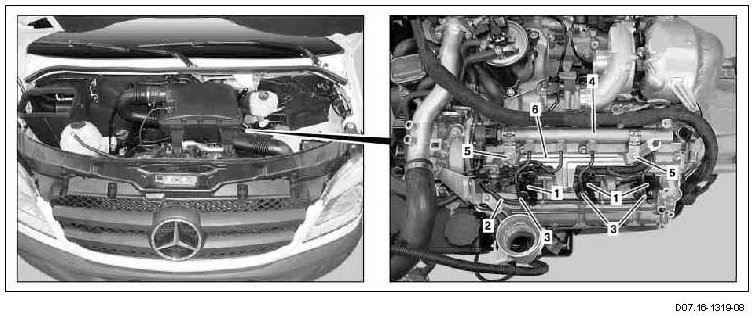

Shown on engine 642.992, left cylinder head







1 Electrical connectors
2 Leak oil line
3 Injection lines
4 Rail
5 Screw 6 Bracket

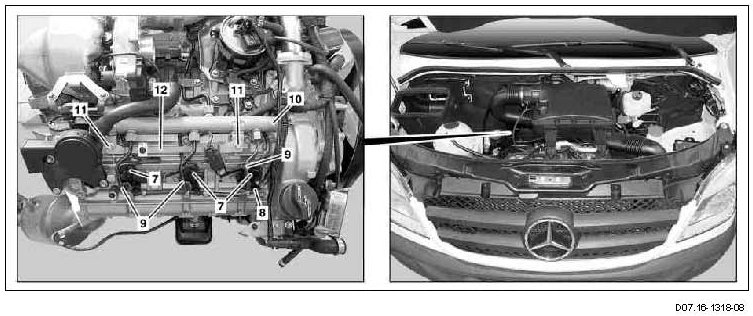

Shown on engine 642.992, right cylinder head







7 Electrical connectors
8 Leak oil line
9 Injection lines
10 Rail
11 Screw
12 Bracket















000 589 30 01 00, Open wrench insert, (18 mm)







000 589 68 03 00, Box wrench bit







129 589 00 91 00, Set of stop plugs
