Diesel MFI Pump: Service and Repair

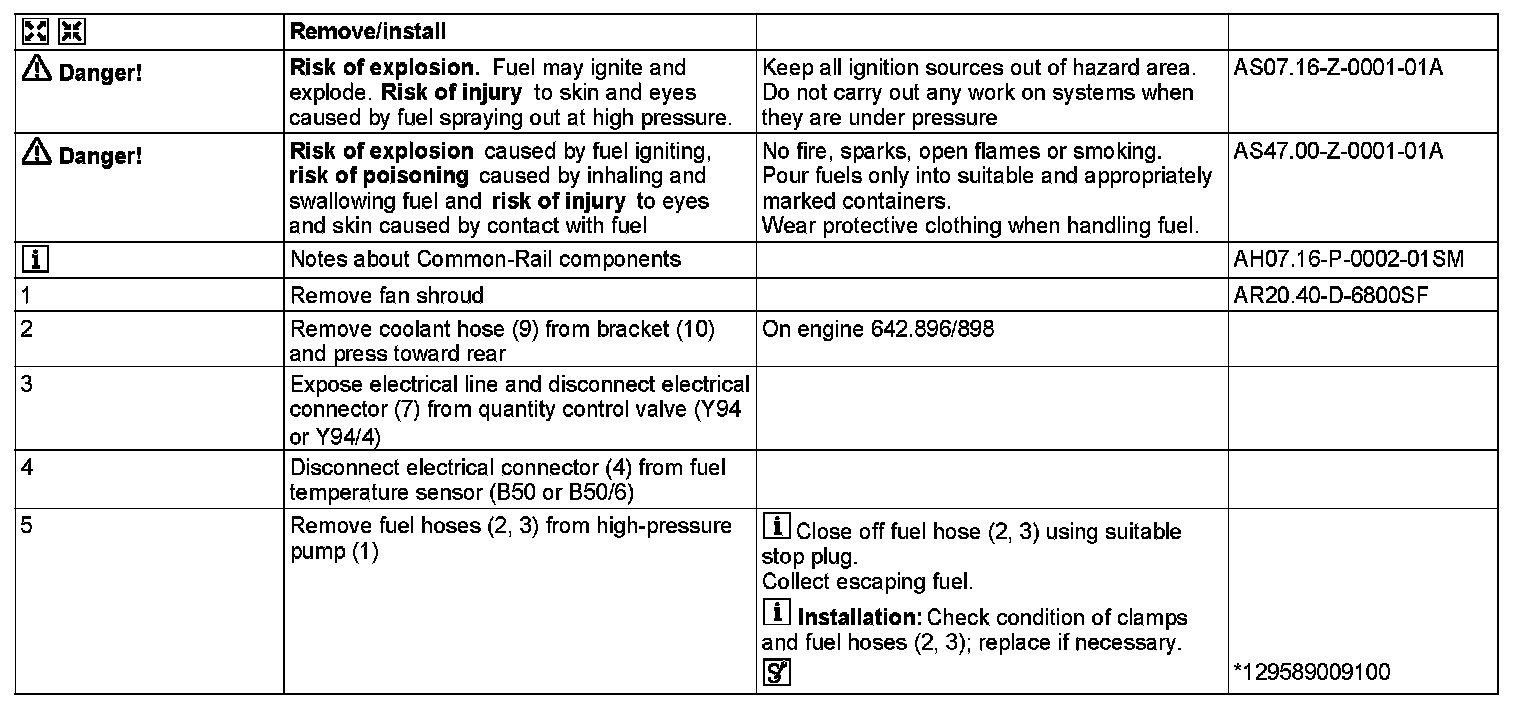

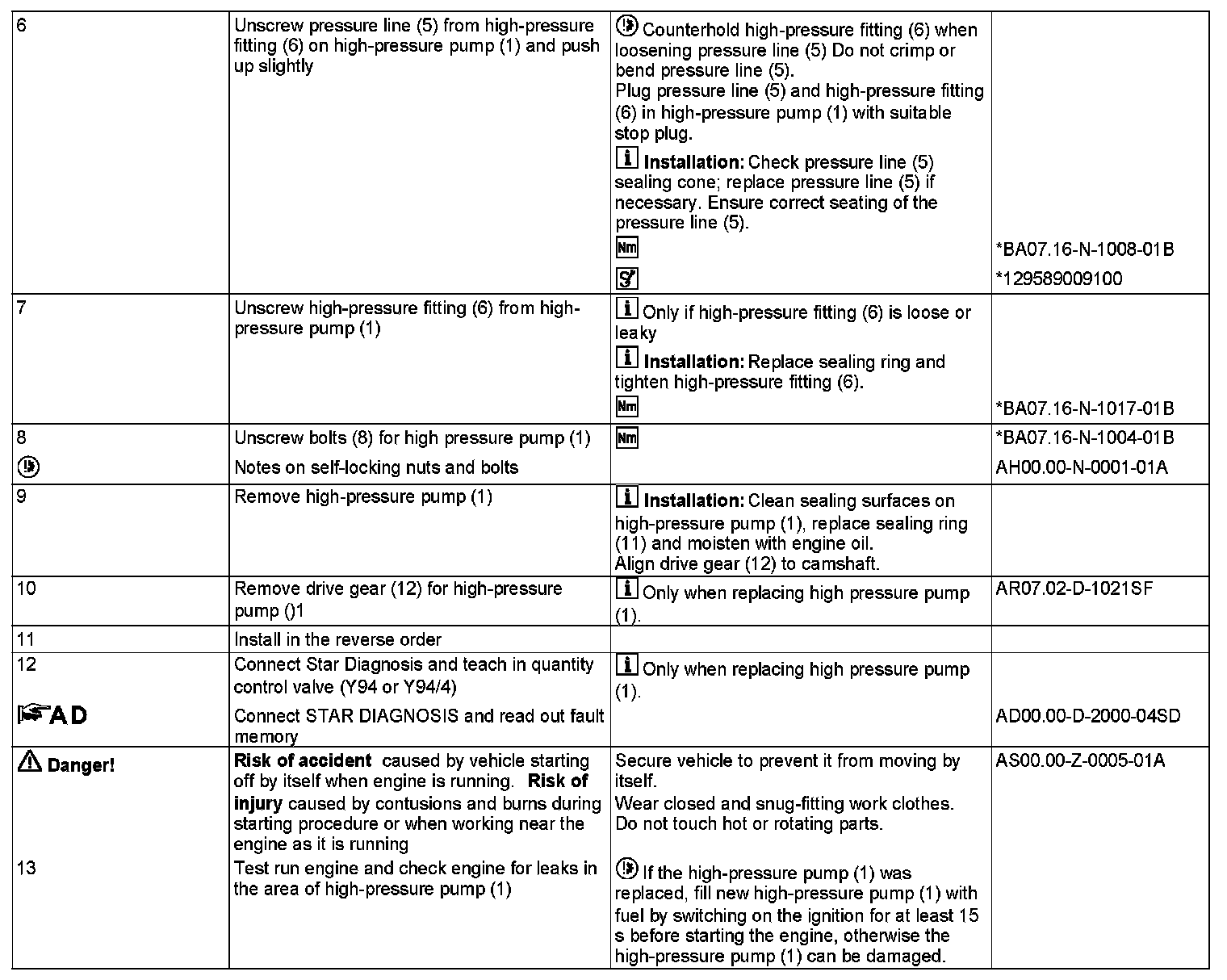

AR07.02-D-1020SF Remove/install High-pressure Pump








1 High-pressure pump
2 Fuel hose
3 Fuel hose
4 Electrical connector
5 High pressure line
6 High-pressure fitting
7 Electrical connector
8 Screw
9 Coolant hose (engine 642.896/898)
10 Mount (engine 642.896/898)
11 Sealing ring
12 Drive gear
B50 Fuel temperature sensor (engine 642.992/993)
B50/6 Fuel temperature sensor (engine 642.896/898)
Y94 Quantity control valve (engine 642.992/993)
Y94/4 Quantity control valve (engine 642.896/898)



















129 589 00 91 00, Set of stop plugs
