Oil Separator: Service and Repair

AR01.20-D-9750SG Remove/Install Oil Separator

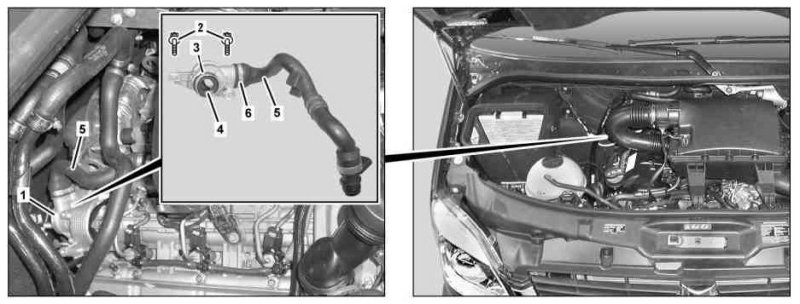

Shown on engine 642.898 in model 906

1 Oil separator
2 Bolts
3 Sealing ring
4 Radial shaft seal
5 Venting hose
6 Clamp
