AR14.20-D-1050SG Install, Remove Exhaust Gas Recirculation

AR14.20-D-1050SG Install, Remove Exhaust Gas Recirculation

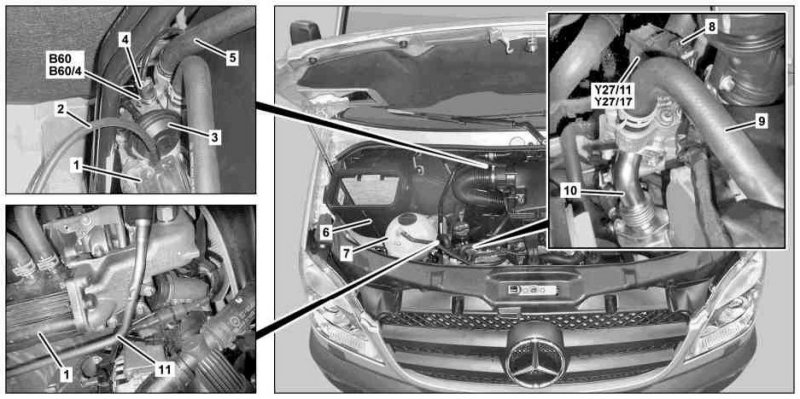

1 Exhaust gas recirculation
2 Vacuum line
3 Aneroid capsule
4 Electrical connector
5 Coolant hose
6 Ventilation box
7 Expansion reservoir
8 Electrical connector
9 Coolant hose
10 Front exhaust gas recirculation pipe
11 Oil filler line (transmission 722)

B60 Exhaust back pressure sensor (engine 642.993)
B60/4 Exhaust back pressure sensor (engine 642.898/989)
Y27/11 Exhaust gas recirculation positioner (engine 642.993)
Y27/17 Exhaust gas recirculation positioner (engine 642.898/989)

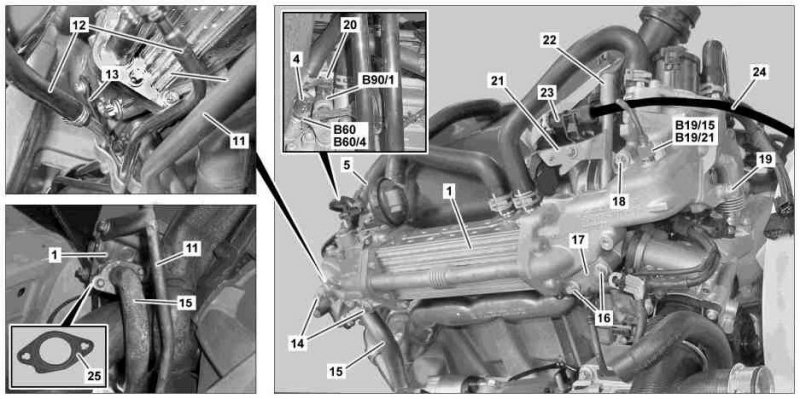

1 Exhaust gas recirculation
4 Electrical connector
5 Coolant hose
11 Oil filler line (transmission 722)
12 Pressure lines
13 Bracket
14 Bolts
15 Rear exhaust gas recirculation pipe
16 Bolts
17 Bracket
18 Screw
19 Screw
20 Electrical connector
21 Bracket
22 Oil dipstick guide tube
23 Drain pipe (engine 642.898/993 with code (KL5)
Fuel filter with water deflector)
24 Drain pipe (engine 642.898/993 with code (KL5) Fuel filter with water deflector)
25 Gasket

B19/15 Exhaust gas recirculation cooler temperature sensor (engine 642.993)
B19/21 Exhaust gas recirculation cooler temperature sensor (engine 642.898)
B60 Exhaust back pressure sensor (engine 642.993)
B60/4 Exhaust back pressure sensor (engine 642.896/898)
B90/1 End position sensor for exhaust gas recirculation cooler (engine 642.993)














001 589 81 09 00
Flexible head wrench set
