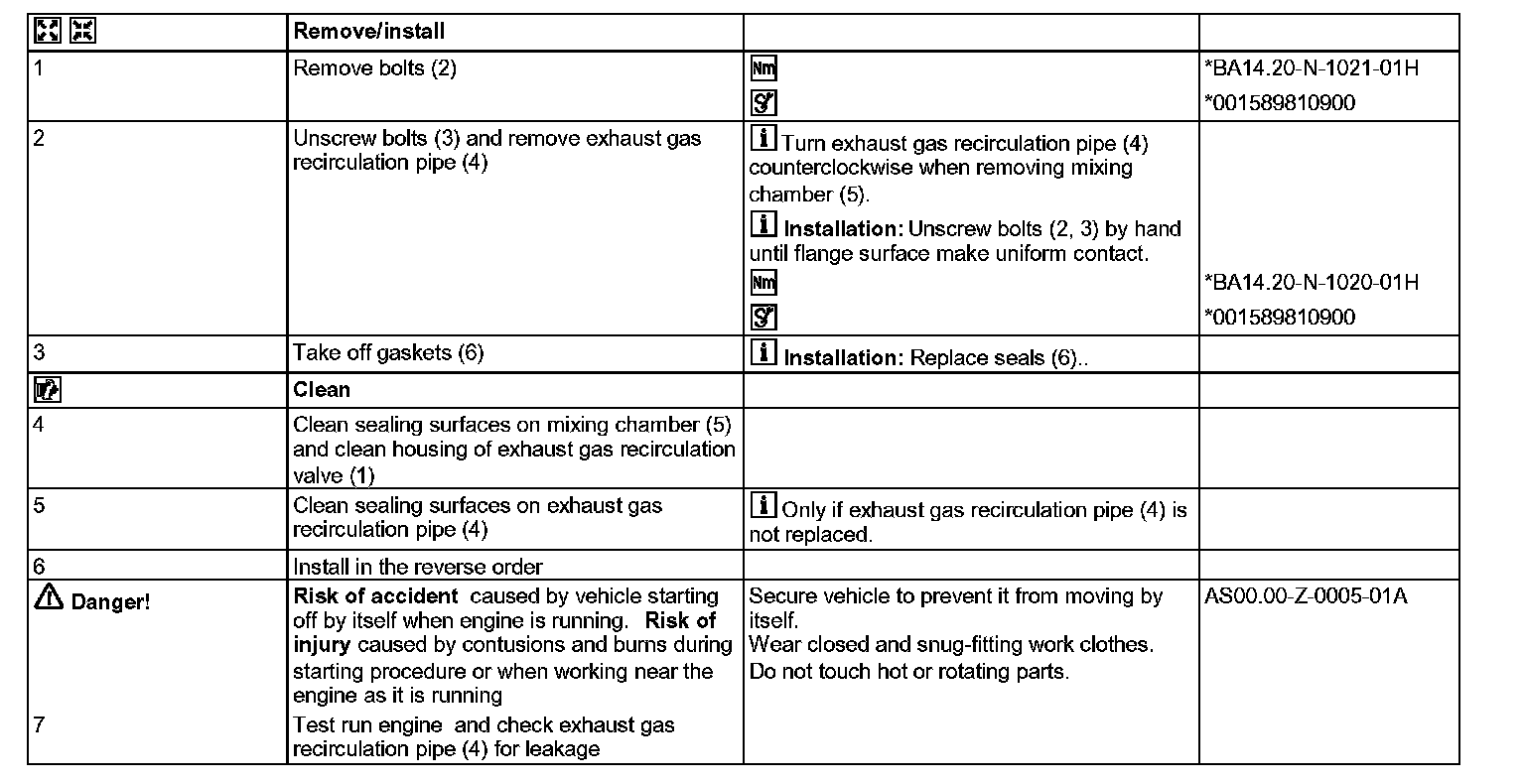

AR14.20-D-1060SG Remove/Install Exhaust Gas Recirculation Pipe

AR14.20-D-1060SG Remove/Install Exhaust Gas Recirculation Pipe


Exhaust gas recirculation valve to mixing chamber





Shown on engine 642.896

1 Exhaust gas recirculation valve housing
2 Screw
3 Screw
4 Exhaust gas recirculation pipe
5 Mixing chamber
6 Gasket











001 589 81 09 00
Flexible head wrench set
