EGR Cooler Bypass Valve: Service and Repair

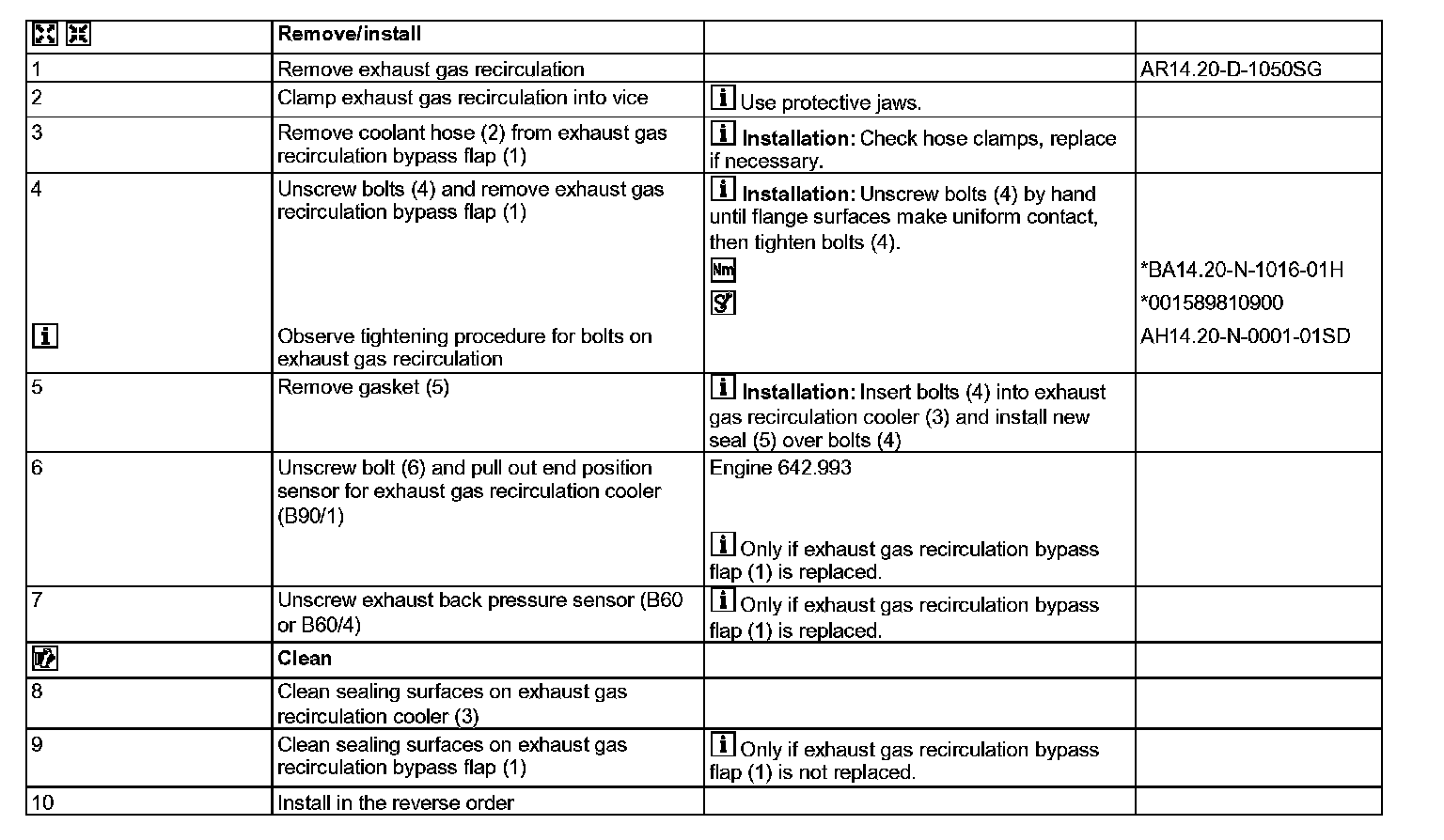

AR14.20-D-7661SG Remove/Install Exhaust Gas Recirculation Bypass Flap

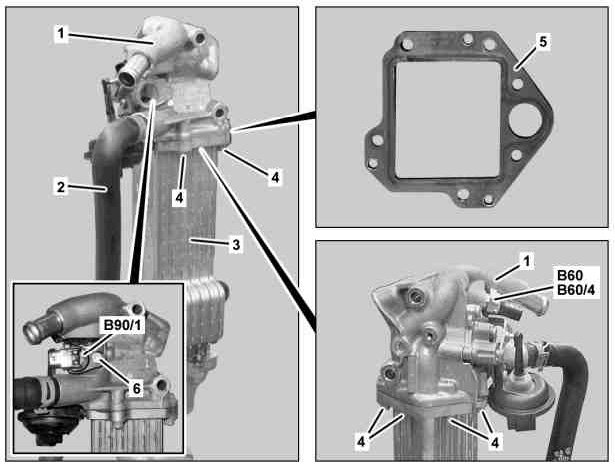

1 Exhaust gas recirculation bypass flap
2 Coolant hose
3 Exhaust gas recirculation cooler
4 Bolts
5 Gasket
6 Screw

B60 Exhaust back pressure sensor (engine 642.993)
B60/4 Exhaust back pressure sensor (engine 642.896/898)
B90/1 End position sensor for exhaust gas recirculation cooler (Engine 642.993)











001 589 81 09 00
Flexible head wrench set
