Removal and Replacement

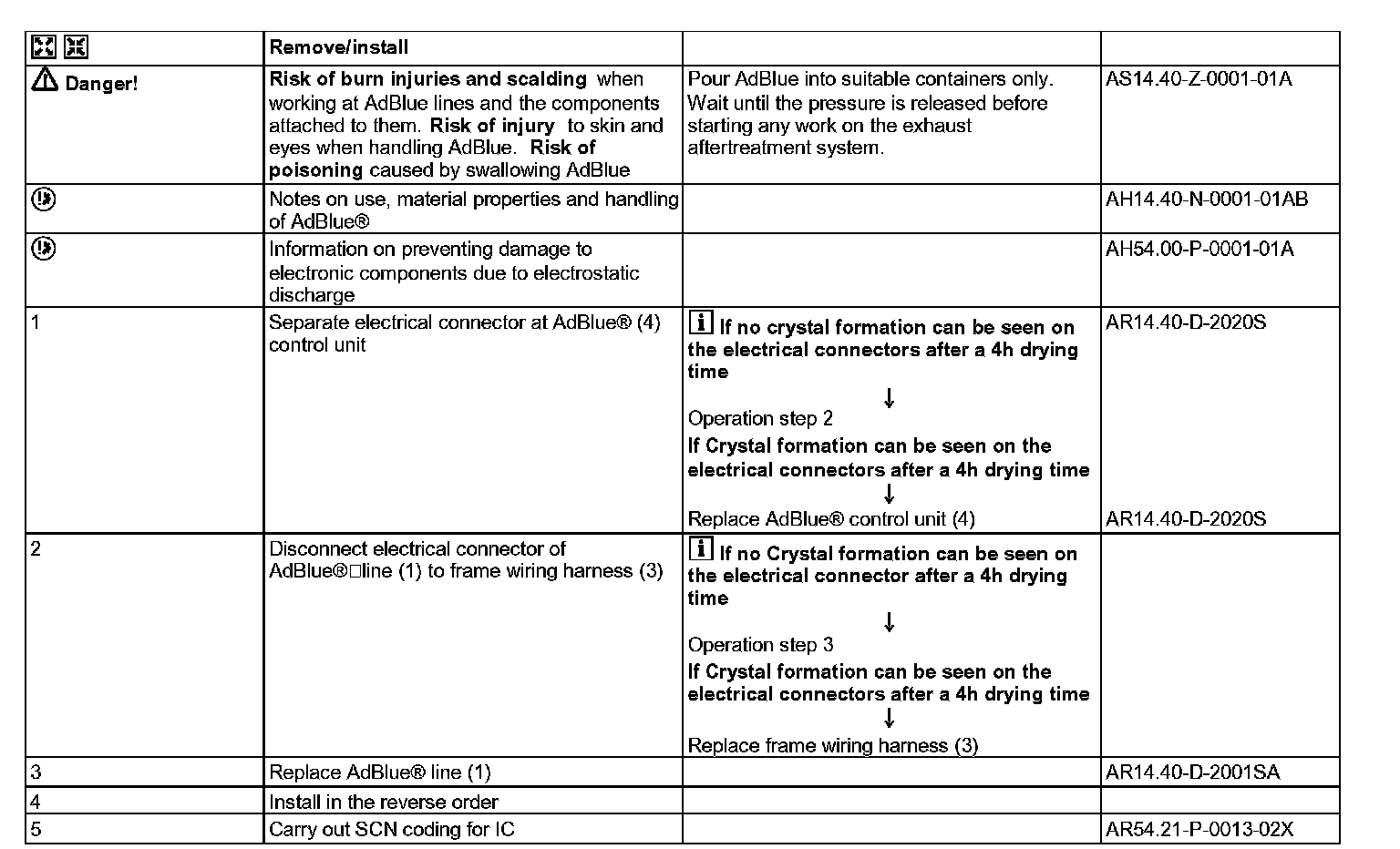

SM14.40-D-0002AK Replace Components of Exhaust Gas Aftertreatment System

- except CODE (KP2) AdBlue tank, 12 l, in engine compartment

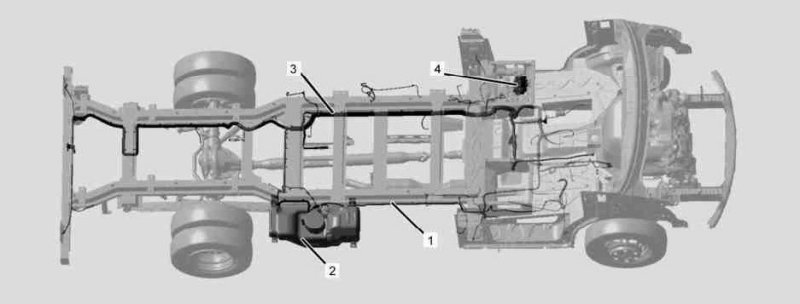

1 AdBlue(R) line
2 AdBlue(R) tank
3 Frame wiring harness
4 AdBlue(R) control unit
