Scan Tool Testing and Procedures

AD00.00-D-2000-04SD Connect STAR DIAGNOSIS And Read Out Fault Memory

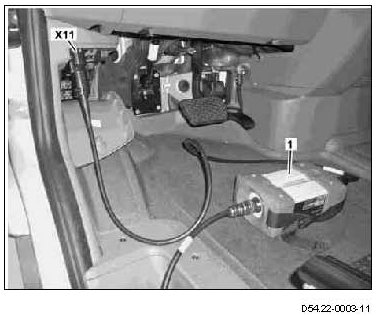

1 Multiplexer
X11 Diagnostic socket, 16-pin

1. Connect Star Diagnosis with multiplexer (1) to the 16-pin diagnostic socket (X11).
Ensure that plug of multiplexer (1) locks in position.
2. Switch on ignition.
3. Start Diagnosis Assistance System (DAS) application.
Stored faults which may be caused by disconnecting cables or by simulation during testing operations must be deleted in the diagnostic trouble code memory following the completion of the operations.
4. Disconnect Star Diagnosis with multiplexer (1) in reverse order.
