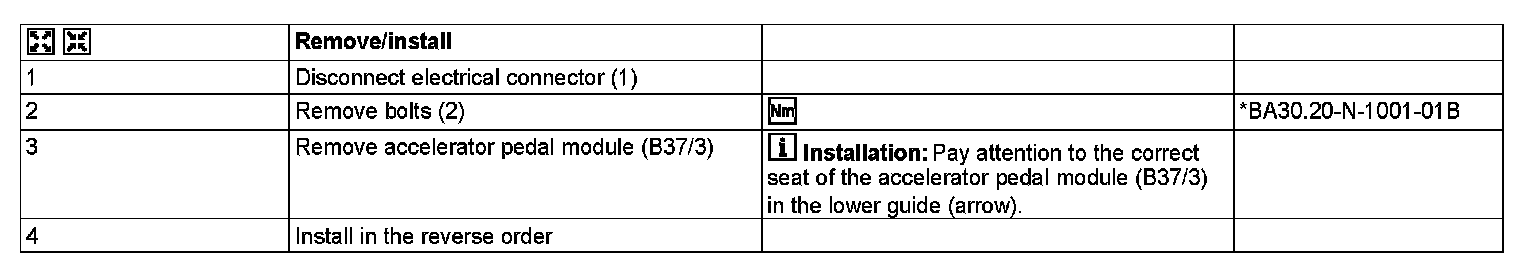

AR30.20-D-2000SD Remove/Install Electronic Accelerator




AR30.20-D-2000SD Remove/Install Electronic Accelerator

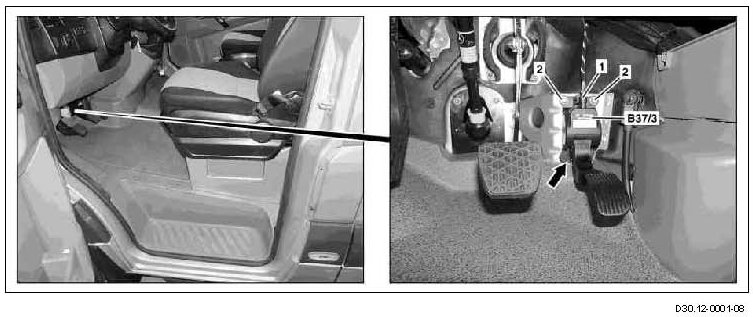

1 Electrical connector
2 Bolts
B37/3 Accelerator pedal module
