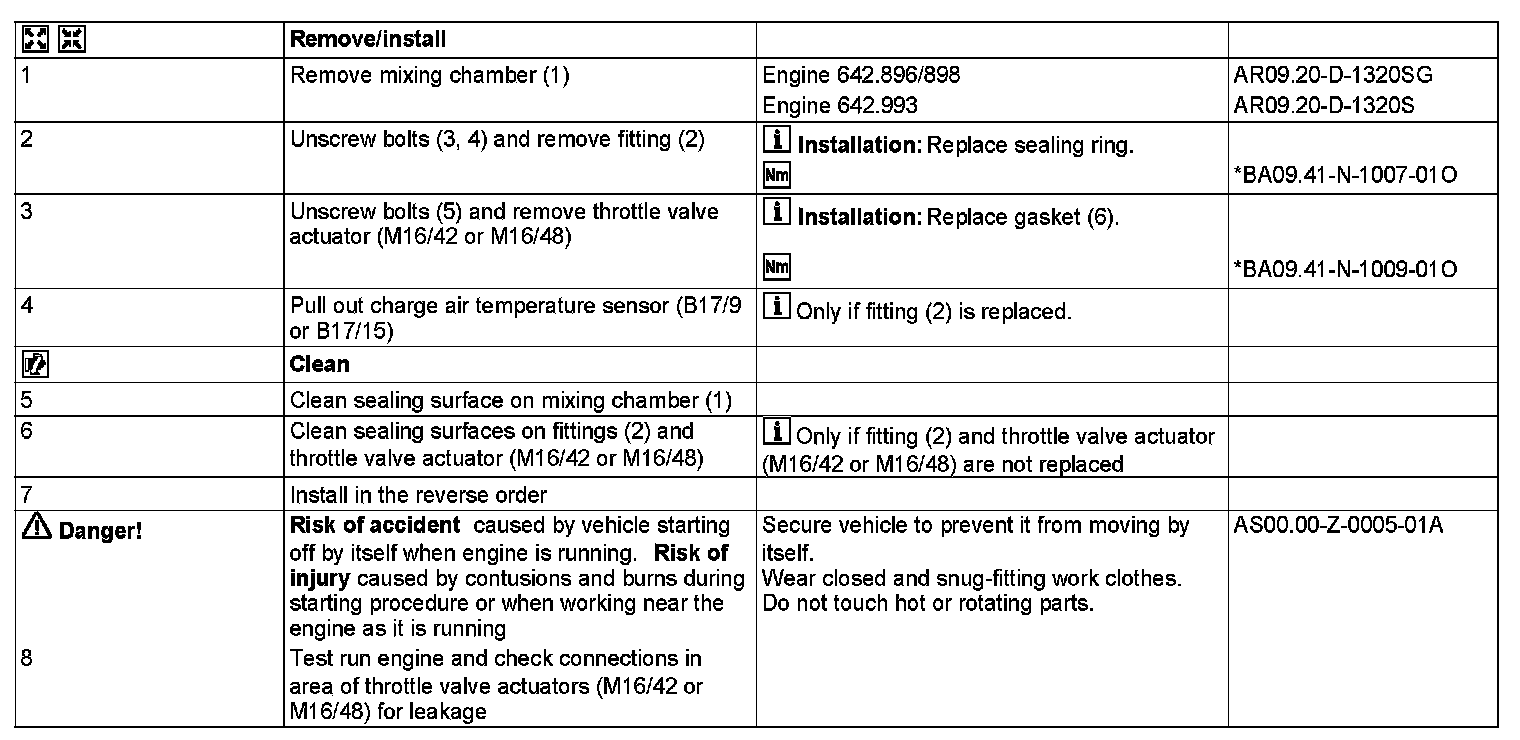

AR09.41-D-1321SG Remove/Install the Throttle Valve Actuator

AR09.41-D-1321SG Remove/install The Throttle Valve Actuator

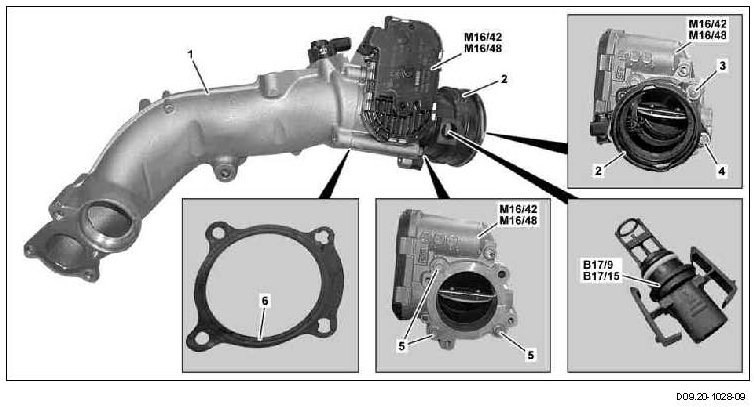

Shown on engine 642.896







1 Mixing chamber
2 Fitting
3 Screw
4 Screw
5 Bolts
6 Gasket
B17/9 Charge air temperature sensor (engine 642.993)
B17/15 Charge air temperature sensor (engine 642.896/898)
M16/42 Throttle valve actuator (engine 642.993)
M16/48 Throttle valve actuator (engine 642.896/898)
