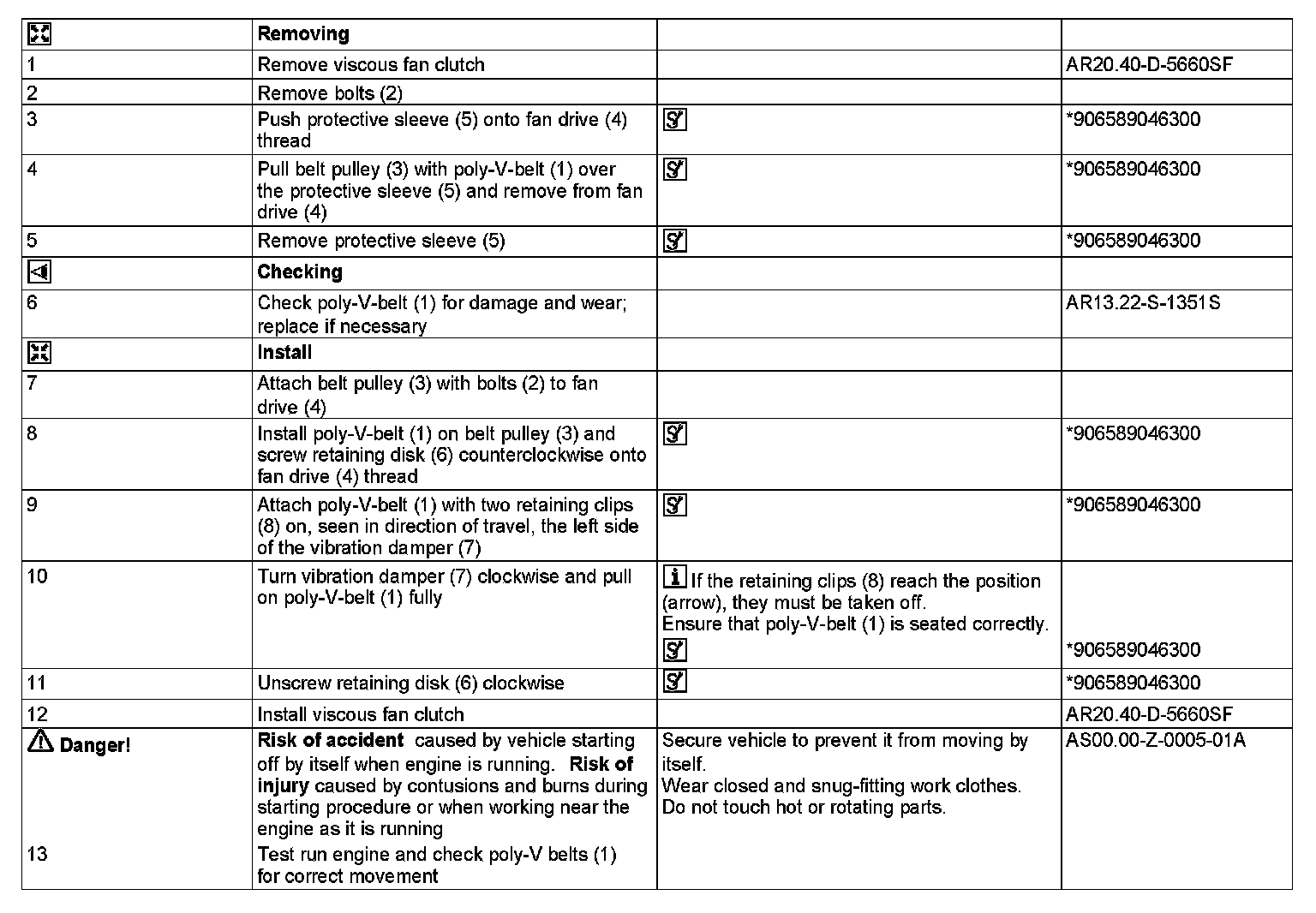

AR13.22-D-1302SF Remove/Install Fan Poly-V Belt

AR13.22-D-1302SF Remove/install Fan Poly-V Belt

- except CODE (H08) High-performance air conditioning

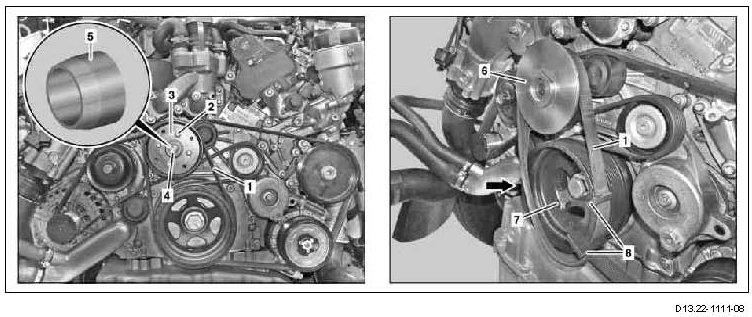

Shown on engine 642.992







1 Poly-V-belt
2 Screw
3 Belt pulley
4 Fan drive
5 Protective sleeve
6 Retaining disk
7 Vibration damper
8 Retaining clips







906 589 04 63 00, Assembly tool
